Rack & Pinion Cradle System
68-72 GM A Body
Power Steering
01/15/07
8
5) Install the floor mounting screws and tighten to 15 ft lbs.
6) Ensure that the column straight by having the turn signal arm points to the 9 o’clock position.
Tighten the two mounting screws on the new Flaming River clamp. ( see photo B)
7) Tighten the floor mounting clamp around the tube. (see photo A)
8) Install the wiring jumper harness.

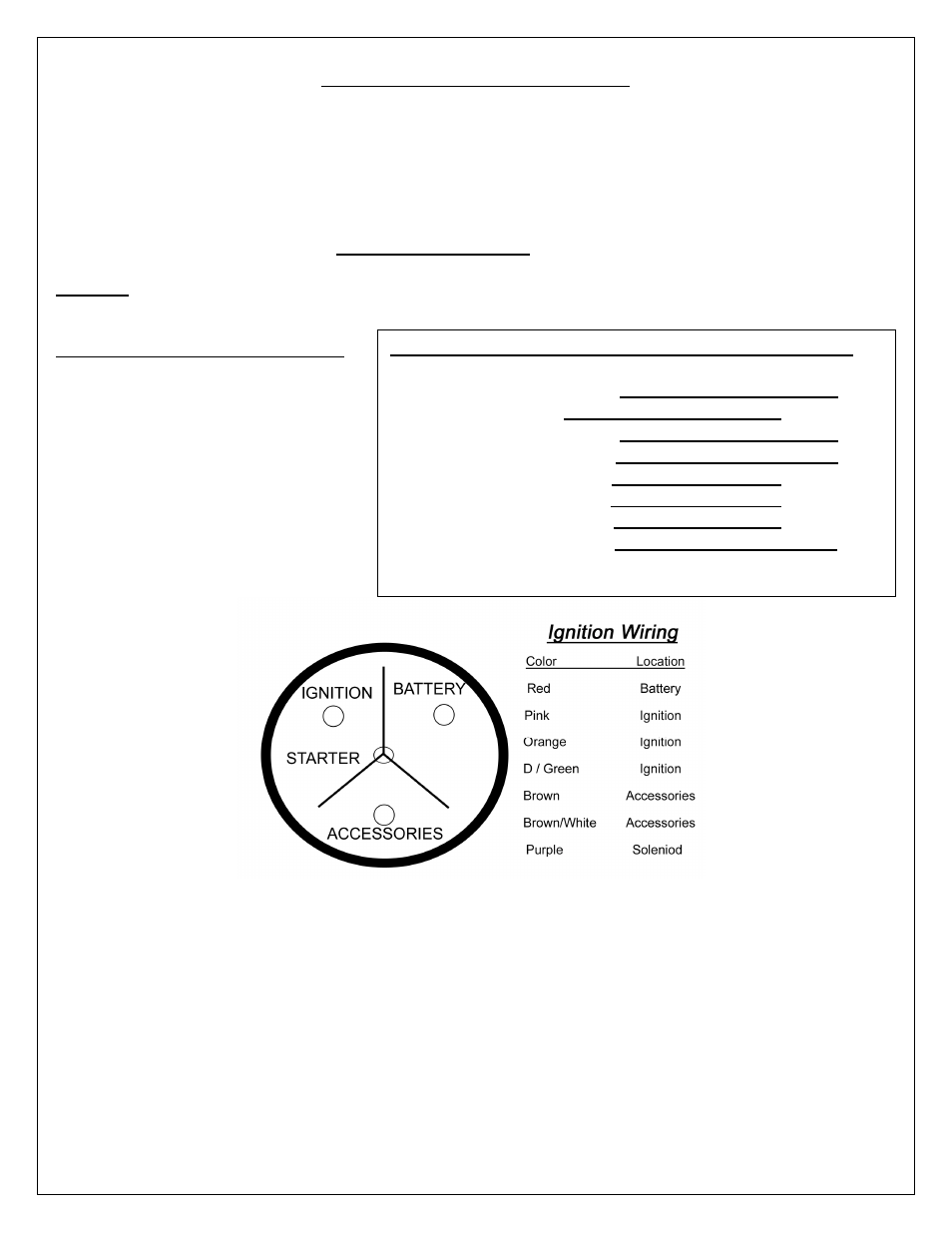

Electrical System Notes
Caution: Before disconnecting your original steering column wiring harness please verify each
wire color and function on the worksheet below. Some wire colors may vary from year to year.
FLAMING RIVER COLUMN WIRING
P-WHITE-BRAKELIGHT SWITCH
N-DK GREEN-RR TURN SIGNAL
M-YELLOW-LR TURN SIGNAL
L-PURPLE-TURN SIGNAL POWER
K-BROWN-HAZARD POWER
J-DK BLUE-RF TURN SIGNAL
H-LT BLUE-LF TURN SIGNAL
G-BLACK-HORN
Color Verification to be completed before disassembly
 Brake Light Switch :
 RR Turn Signal :
 LR Turn Signal :
 Turn Signal Power :
 Hazard Power :
 RF Turn Signal :
 LF Turn Signal :
 Horn :
