DAVIS MOTOR CADDY User Manual
Page 2

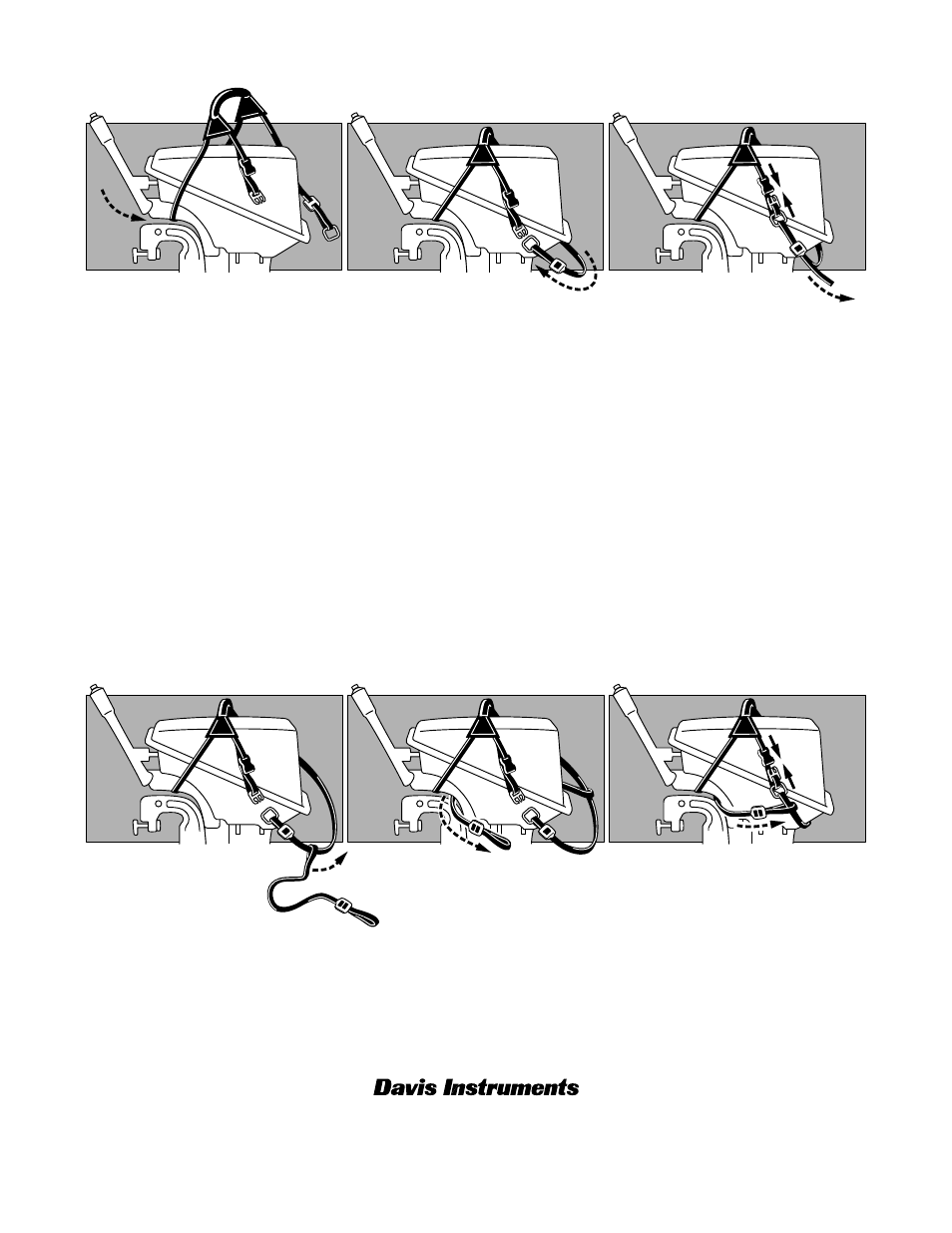

The harness may be installed with
buckle on either side of motor. The
webbing is one continuous piece;
pulling on one side will tension the
other side.
With attachment buckle free (open),
place the loop side over the motor
and position underneath. Make sure
there are no twists. Pull on the stain-
less ring until the loop side becomes
taut.
Feed the webbing with the stainless
ring underneath the motor until it
meets the attachment buckle.
Make sure there are no twists.
Placing the adjustment buckle
approximately 1
1
/
2
" (38mm) from the
end of the webbing will keep extra
webbing from flopping about, provid-
ing a clean installation.
Slide the attachment buckle through
the stainless ring (buckle must be at
an angle to slip through the stain-
less ring). Connect buckle together.
The tension of the webbing may
now be changed using the adjust-
ment buckle. The optimum tension is
a snug fit all around while still allow-
ing the handle to be grasped.
Webbing may have to be slid
through handle to achieve a cen-
tered fit.
HARNESS INSTALLATION
SECURITY STRAP INSTALLATION
The security strap is included for use on today’s streamlined motor cases.
Release the attachment
buckle. Slide the security
strap's small loop onto
the harness webbing in
back of motor.
Lead the security strap
around the FRONT of
the motor.
Slide the security strap's large loop
onto the main harness. Close har-
ness attachment buckle (as in third
step, above). Tighten harness and
security strap webbing.
3465 Diablo Ave., Hayward, CA 94545 U.S.A.
Phone (510) 732-9229 • Fax (510) 732-9188
www.davisnet.com
00430.081 Rev. B September 2010
