14
2. CONNECTIONS
continued …

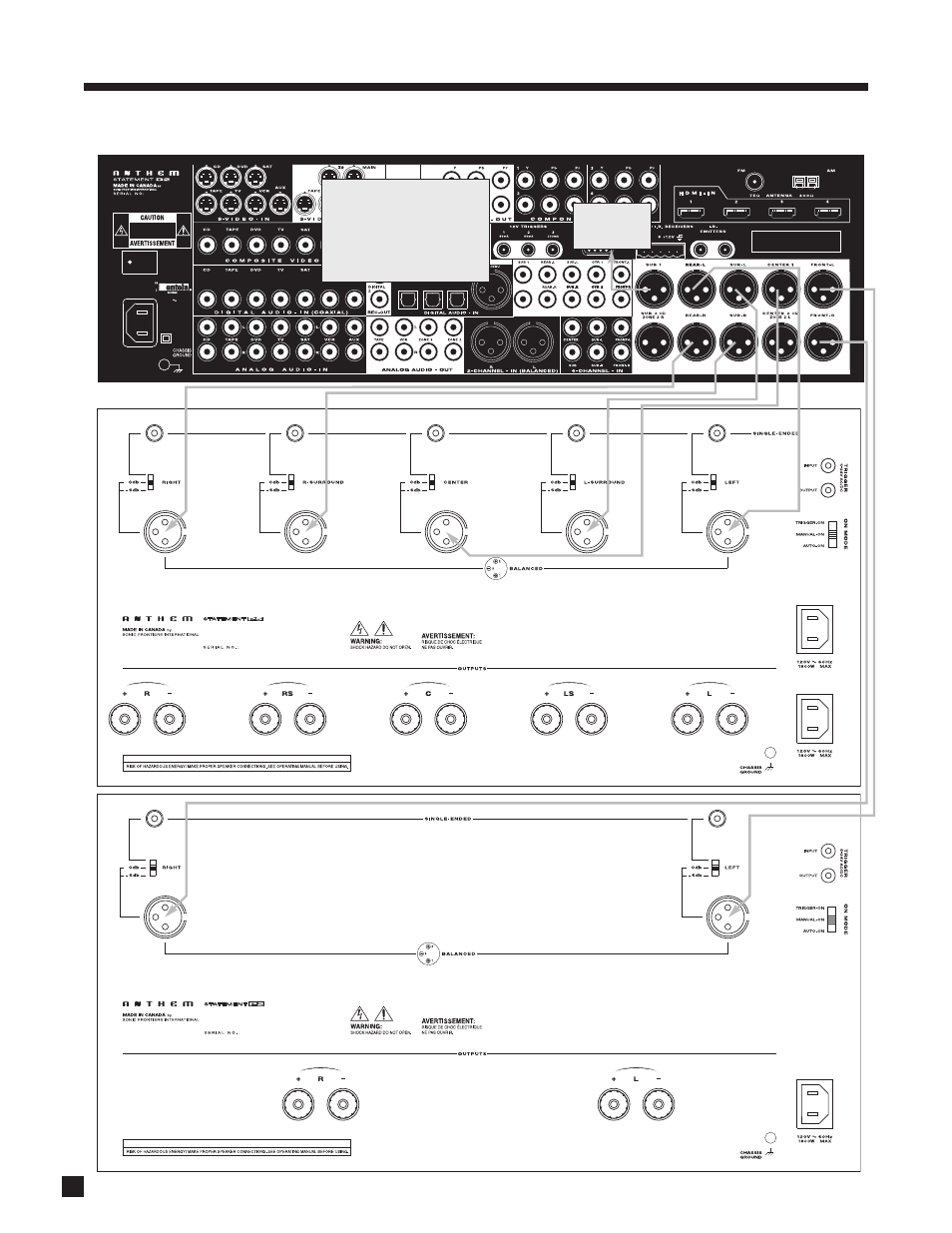

Example 3: Processor to amplifiers and subwoofer (Balanced connection shown, single-ended is similar)
WARNING
120V 60Hz
170W MAX
E X PA N S I O N P O R T SHOCK HAZARD
DO NOT OPEN.
RISQUE DE CHOC ÉLECTRIQUE
NE PAS OUVRIR
M A I N A U D I O - O U T ( B A L A N C E D )
SUB 2
M A I N A U D I O - O U T
To powered
subwoofer
WARNING
Trigger Setup Suggestion:
If it is not necessary to have both
amplifiers turned on when stereo
sources are playing, set triggers
to turn on only the 2-channel
amplifier when a stereo source is
selected (see section 3.11).
