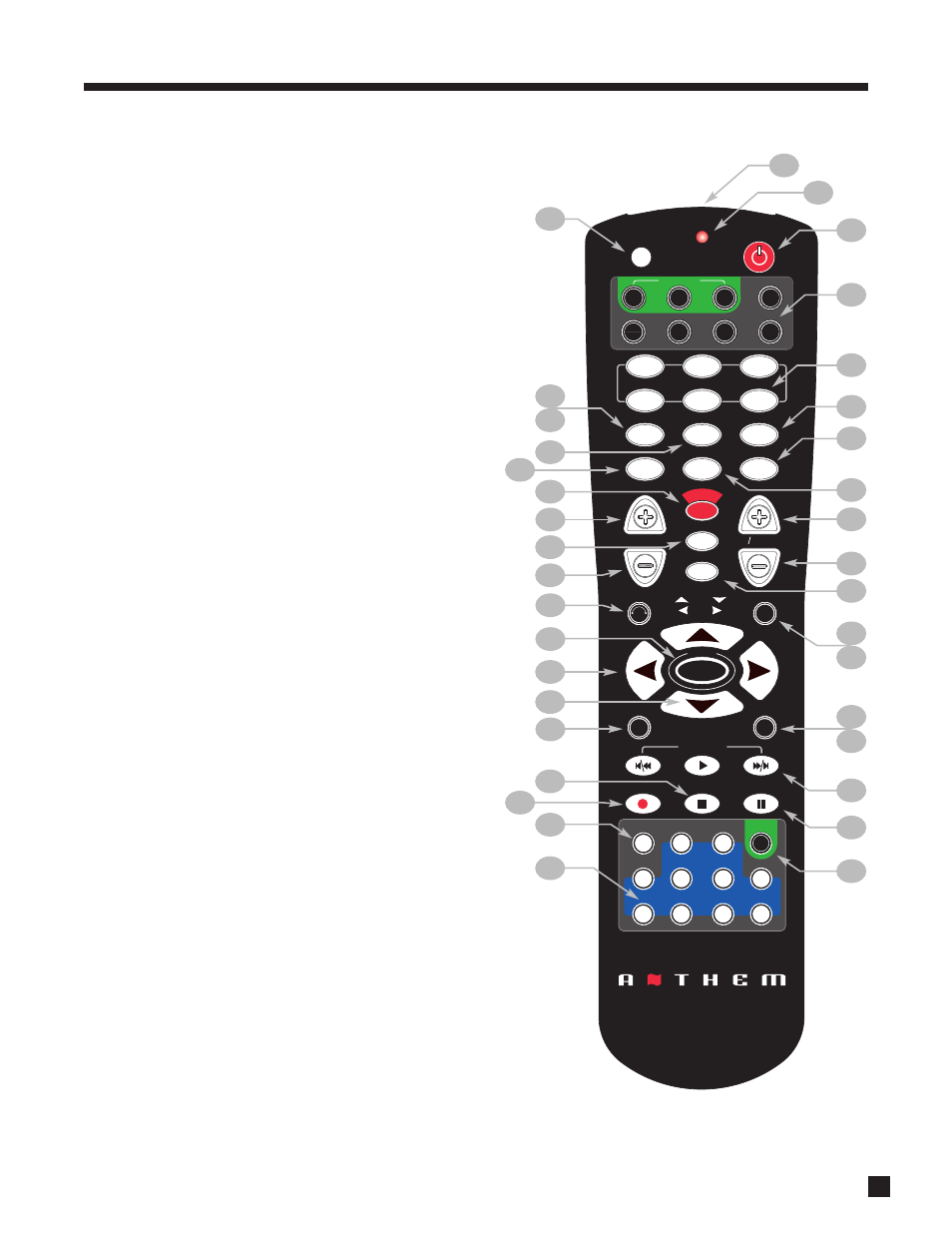

1.6 REMOTE CONTROL
1 – IR transmitter (front face)
2 – LED
3 – Power on for MAIN, ZONE2, and ZONE3
Power on/off for other control modes
This key does not turn off the processor (see #31)
4 – Control mode (to control other components)
These are not the source selection keys (see #19)
5 – FM•AM preset setting and selection
6 – Tone bypass
7 – Mode / video adjustments (press and hold for 3 seconds)
8 – Dynamics setting
9 – FM•AM preset up
10 – FM•AM preset down
11 – Sleep timer selection / timers setting
12 – Center channel selection for level / bass / treble
13 – Back (for Setup)
14 – Subwoofer / LFE selection for level adjustment
15 – Setup (press and hold for 3 seconds)
16 – Source seek
17 – Balance
18 – RECORD path selection (must be in MAIN – see #4)
19 – Source selection
20 – Copy MAIN when ZONE2, ZONE3, or RECORD is selected
21 – Bass selection for adjustment
22 – Treble selection for adjustment
23 – Surrounds / rears selection for level / bass / treble / balance
24 – • FM•AM tuning
• Adjustment for surround mode, dynamics, THX,
levels, bass / treble, timers, brightness
• Setup navigation
25 – • FM•AM seek
• Balance adjustment
• Setup navigation
26 – Status / FM•AM direct entry / setup selection
27 – Fronts / headphones selection for level / bass / treble / balance
28 – Volume down
29 – THX selection
30 – Volume up
31 – Power off when in MAIN, ZONE2, or ZONE3 control mode
32 – Mute
33 – Front panel LED / display brightness setting / lip-sync delay
34 – On-screen display of current front panel display
35 – Scaler menu – press and hold for 3 seconds
36 – Learn – for customization of remote
Rear: Battery cover (when batteries are running low and a key is
pressed, the backlight stops working and the LED blinks twice)
