31
PARTS IDENTIFICATION

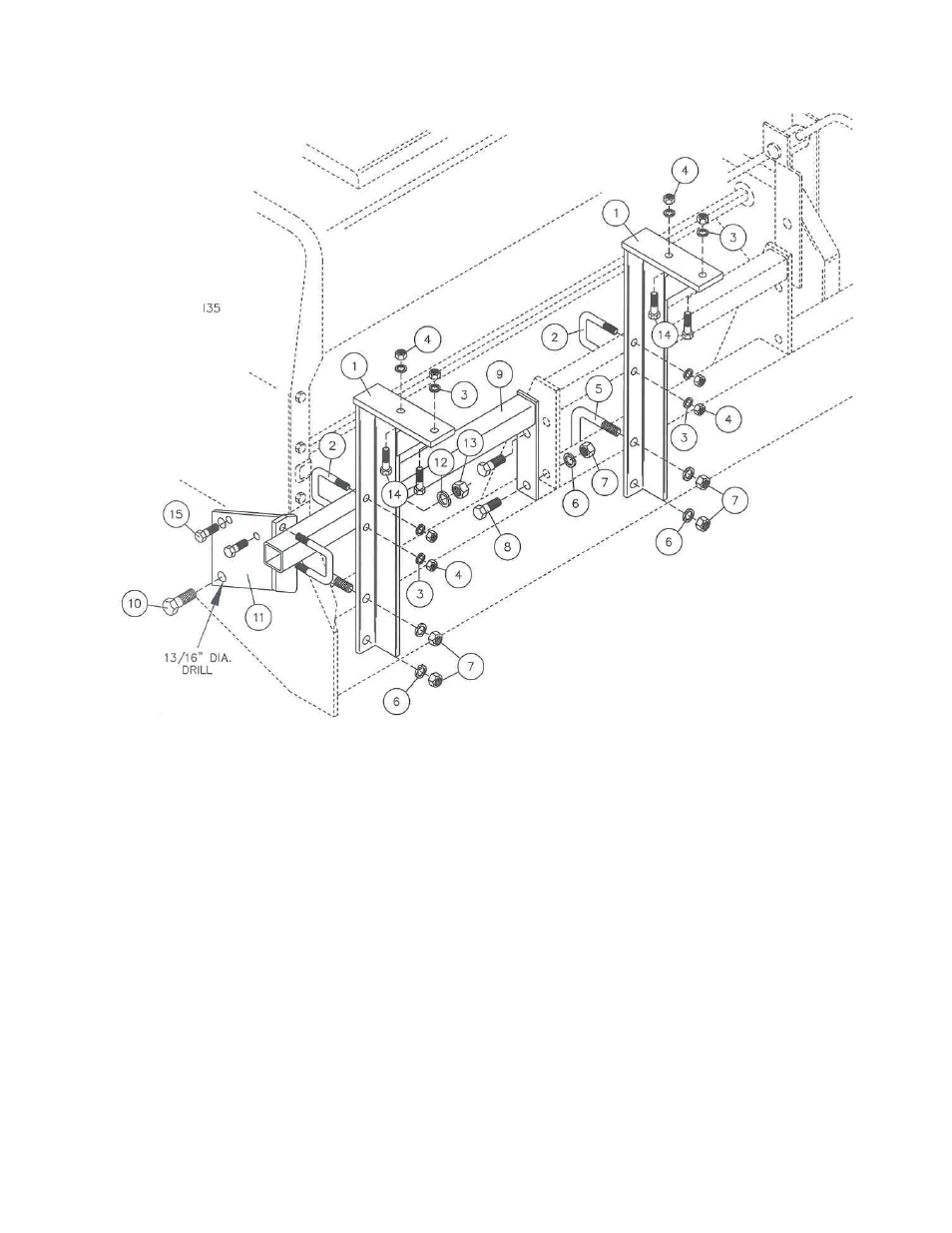

6001-191 – MARKER MOUNTING KIT, JD 515/520
(MOUNTED ON JD 520)
KEY QTY. PART NO. DESCRIPTION
1 4 6001-261 MOUNT ANGLE W.A., JD 515 & 520
2 6 2570-565 ½ X 2 X 3 U-BOLT ZYD
3 20 2525-352 ½ MED LOCK WASHER ZYD
4 20 2520-352 ½-13 HEX NUT ZYD
5 4 2570-602 5/8-11 X 3 X 4 ½ U-BOLT ZYD
6 12 2525-451 5/8 MED LOCK WASHER ZYD
7 12 2520-452 5/8-11 HEX NUT ZYD
8 4 2502-318 5/8-11 X 1 ½ HHCS GR 5 ZYD
9 2 6001-262 2 X 2 BAR W.A., JD 515 & 520
10 4 2502-503 ¾-10 X 2 HHCS GR 5 ZYD
11 1 6001-455 2 X 2 BAR BRACE, JD 515 & 520 (SHOWN)
1 6001-460 L.H. 2 X 2 BRACE, JD 515 & 520
12 4 2525-501 ¾ MED LOCK WASHER ZYD
13 4 2520-504 ¾-10 HEX NUT ZYD
14 8 2502-317 ½-13 X 1 ¾ HHCS GR 5 ZYD
