28
PARTS IDENTIFICATION

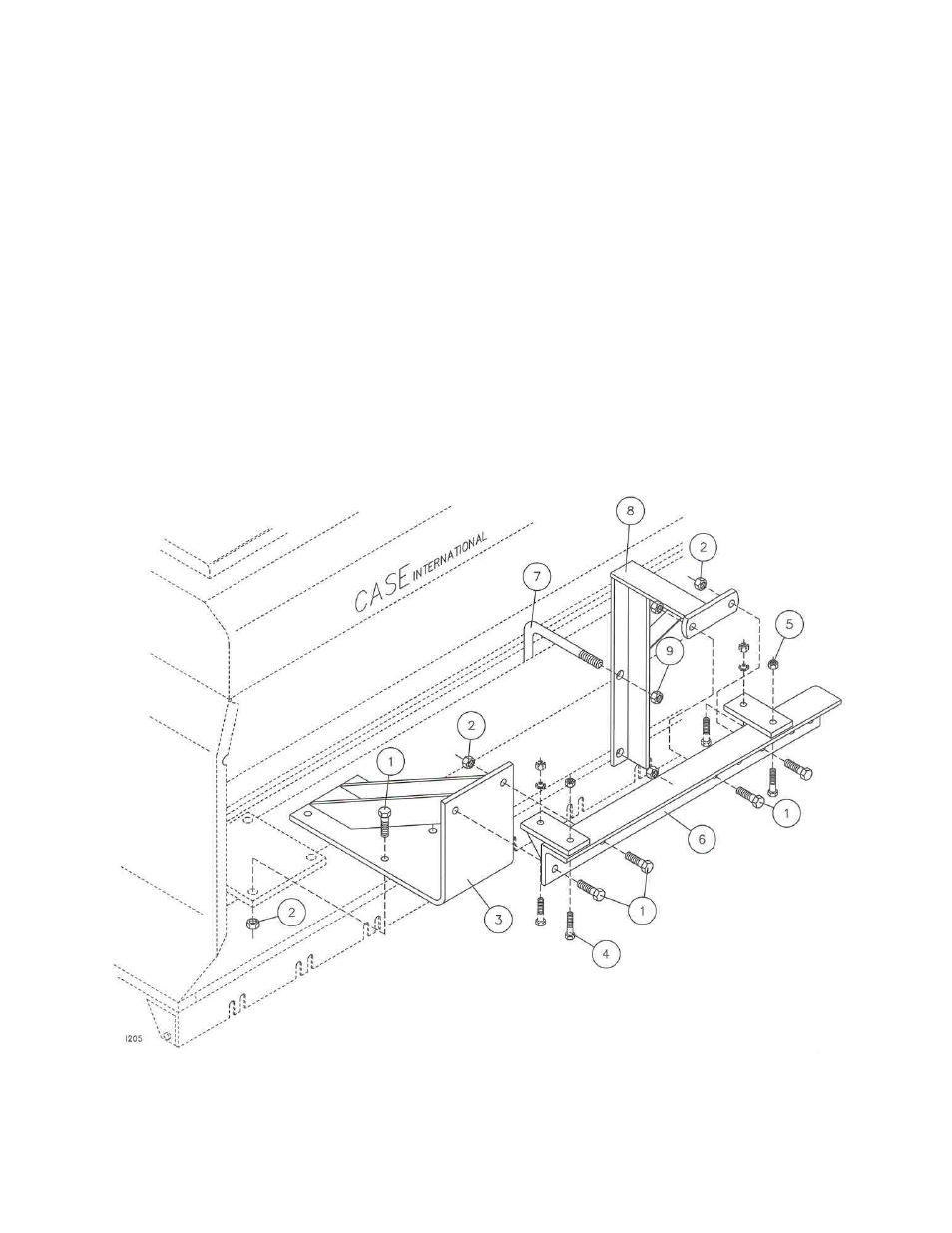

6001-042 – MOUNTING KIT, CASE IH 5500 DRILL
KEY QTY. PART NO. DESCRIPTION
1 16 2502-331 5/8-11 X 1 ¾ HHCS GR 5 ZYD
2 16 2520-459 5/8-11 LOCK HEX NUT ZYD
3 2 6001-275 MOUNTING BRACKET W.A., IH 5500
4 8 2502-351 ½-13 X 2 HHCS GR 5 ZYD
5 8 2520-357 ½-13 LOCK HEX NUT ZYD
6 2 6001-276 MOUNT ANGLE W.A., CASE IH 5500
7 2 2570-478 ¾ X 7 X 9 U-BOLT ZYD
8 2 6001-277 MOUNTING BRACE W.A., IH 5500
9 4 2520-515 ¾-10 LOCK HEX NUT ZYD
NOTE: SHOWN ON RIGHT HAND END OF DRILL.
