21
PARTS IDENTIFICATION

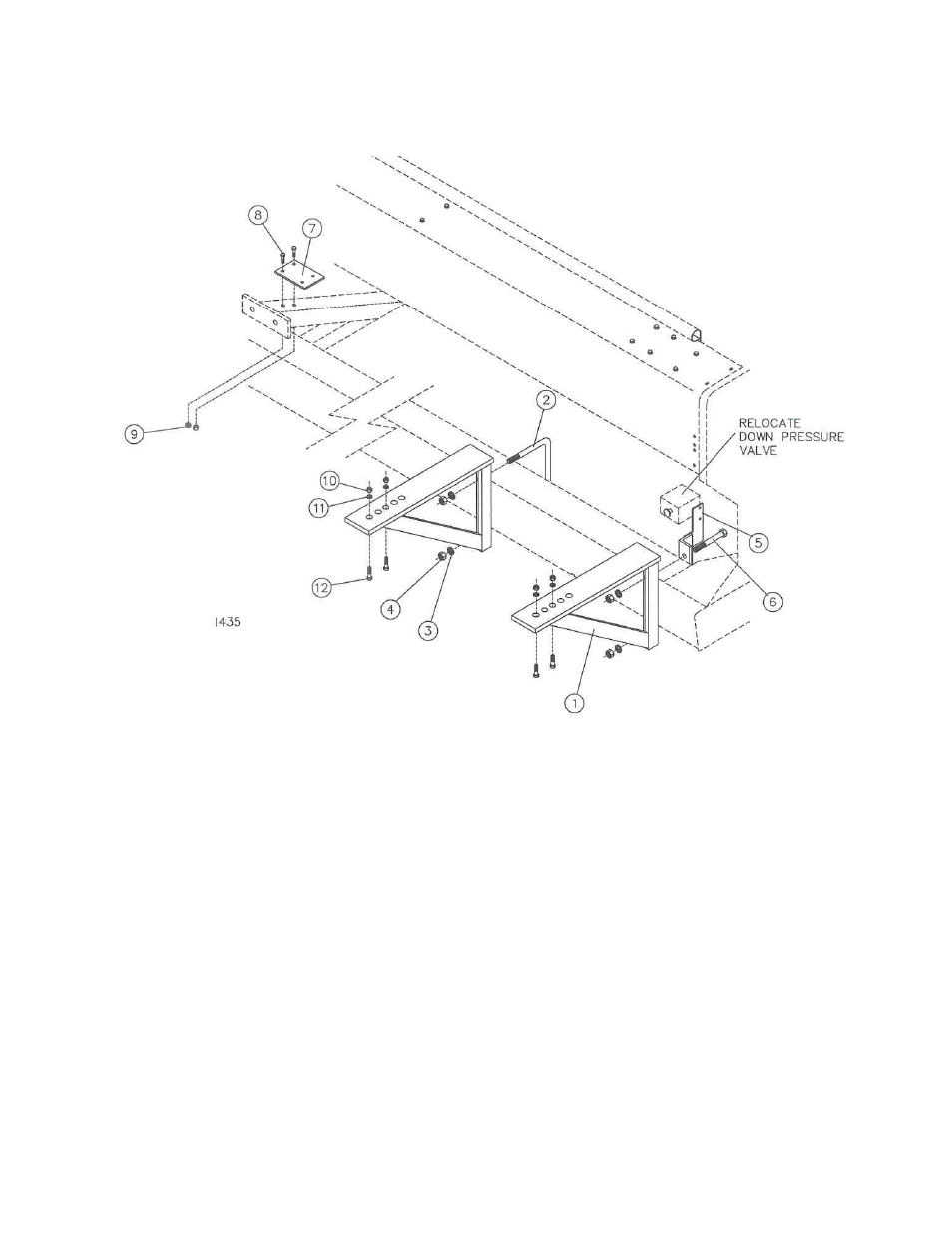

6001-016 – MARKER MOUNTING KIT, JOHN DEERE 1520
KEY QTY. PART NO. DESCRIPTION
1 4 6001-279 MARKER BRACKET W.A., JD 1520
2 3 2570-477 ¾ X 7 X 7 U-BOLT ZYD
3 8 2525-501 ¾ MED LOCK WASHER ZYD.
4 8 2520-504 ¾-10 HEX NUT ZYD.
5 1 6001-282 DOWN PRESSURE VALVE MTG. PLATE W.A.
6 2 2502-509 ¾-10 X 7 HHCS GR 5 ZYD
7 1 6001-451 SEQUENCE VALVE ADAPTER PLATE
8 2 2502-207 5/16-18 X 2 HHCS GR 5 ZYD
9 2 2520-205 5/16-18 LOCK HEX NUT ZYD
10 8 2520-352 ½-13 HEX NUT ZYD
11 8 2525-352 ½ MED LOCK WASHER ZYD
12 8 2502-317 ½-13 X 1 ¾ HHCS GR 5 ZYD
