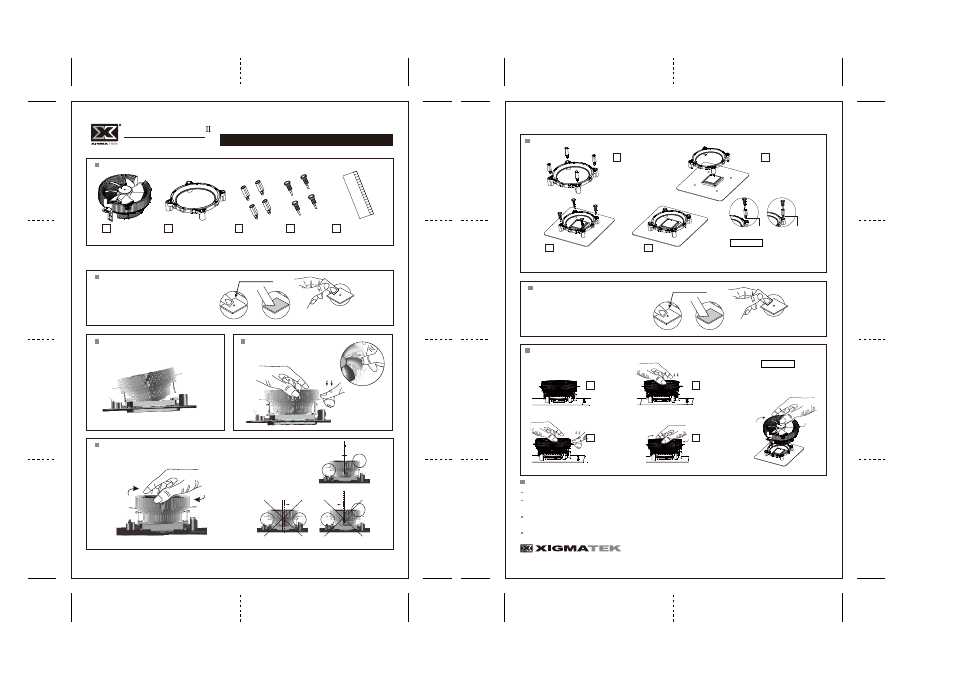

XIGMATEK Apache-II CD901 User Manual
XIGMATEK Computer Accessories

AMD INSTALLATION ( AM2 / AM3 / K8 )
INTEL INSTALLATION ( LGA775 / 1155 / 1156 )
STEP 1
COMPONENTS
INSTALLATION GUIDE
STEP 1
Tear the package of the thermal grease off,
apply thermal grease evenly to the bottom
of heatsink base.
STEP 4
Check the cooler by turning left and right.
STEP 2
Hang on the mounting clip to either side
of Retention Module.
STEP 3
Press the other side of
mounting clip until it’s hooked in.
STEP 3
Install cooler to MB
Fasten the White Pin
(W.P.) to the holes of
bracket.
Aim the Bracket to
the 4 holes of MB.
Plug and press
bracket to the MB.
Aim the Black Pin (B.P.) to
the holes of bracket.
Press and hold the
top of the cooler so
that it can well
match the CPU.
Plug and press Black
Pin (B.P.) to bracket.
CPU
Thermal Grease
Example
OK
Right
Left
PRECAUTIONS
Keep and store the product away from the reach of children.
Check the component list and condition of the product before installation. If there is any problem, contact the shop
where you purchased to get a replacement or refund.
Xigmatek Co., Ltd. is not responsible for any damages due to external causes, including but not limited to, improper use,
problems with electrical power, accident, neglect, alteration, repair, improper installation, and improper testing.
CPU and motherboard are subject to damage if the product is incorrectly installed
2011 © XIGMATEK Co., Ltd. All rights reserved. All trademarks are the property of their respective owners.
http://www.xigmatek.com
E-mail: [email protected] • [email protected]
Heatsink
(H.S.)
LGA775/1155
/1156 Bracket
White Pin
(W.P.)
x4pcs
Thermal Grease
Black Pin
(B.P.)
x4pcs
A P A C H E
EP-CD901 / 903
Please pay attention to the W.P. &
B.P. direction (LGA775 is inward;
LGA1155/1156 is outward)
Twist the HS if other
component in the
motherboard blocks.
1
1
2
3
4
5
2
2
3
4
LGA775
LGA1155/1156
LGA775
ATTENTION
ATTENTION
1 Hang on the
mounting clip to
any side of the
bracket.
3 Press the other
side of the
mounting clip till
its hooked in
4 Check if the
cooler is in
right place.
STEP 2
Tear the package of the thermal grease off,
apply thermal grease evenly to the bottom
of heatsink base.
CPU
Thermal Grease
