INSTALLATION INSTRUCTIONS
for Pre-Hung Exterior Entry Doors (JII106)
2
FULLY SHEATHED WALL CONSTRUCTION
The wall framing is
covered by sheathing
and the door will be
mounted with the
exterior trim flush
against the sheathing.
This installation
assumes building wrap
is properly installed
prior to installation.
OPEN-STUD CONSTRUCTION
The wall framing needs to be completely surrounded by backing
support (non water-degradable, thin (max. 1/8" thick) sheet material
such as plywood or lauan) before installing building wrap and the
door. The door will be mounted with the exterior trim flush against the
applied backing support.
This installation guide specifically addresses masonry/block wall,
sheathed wall and open-stud construction.

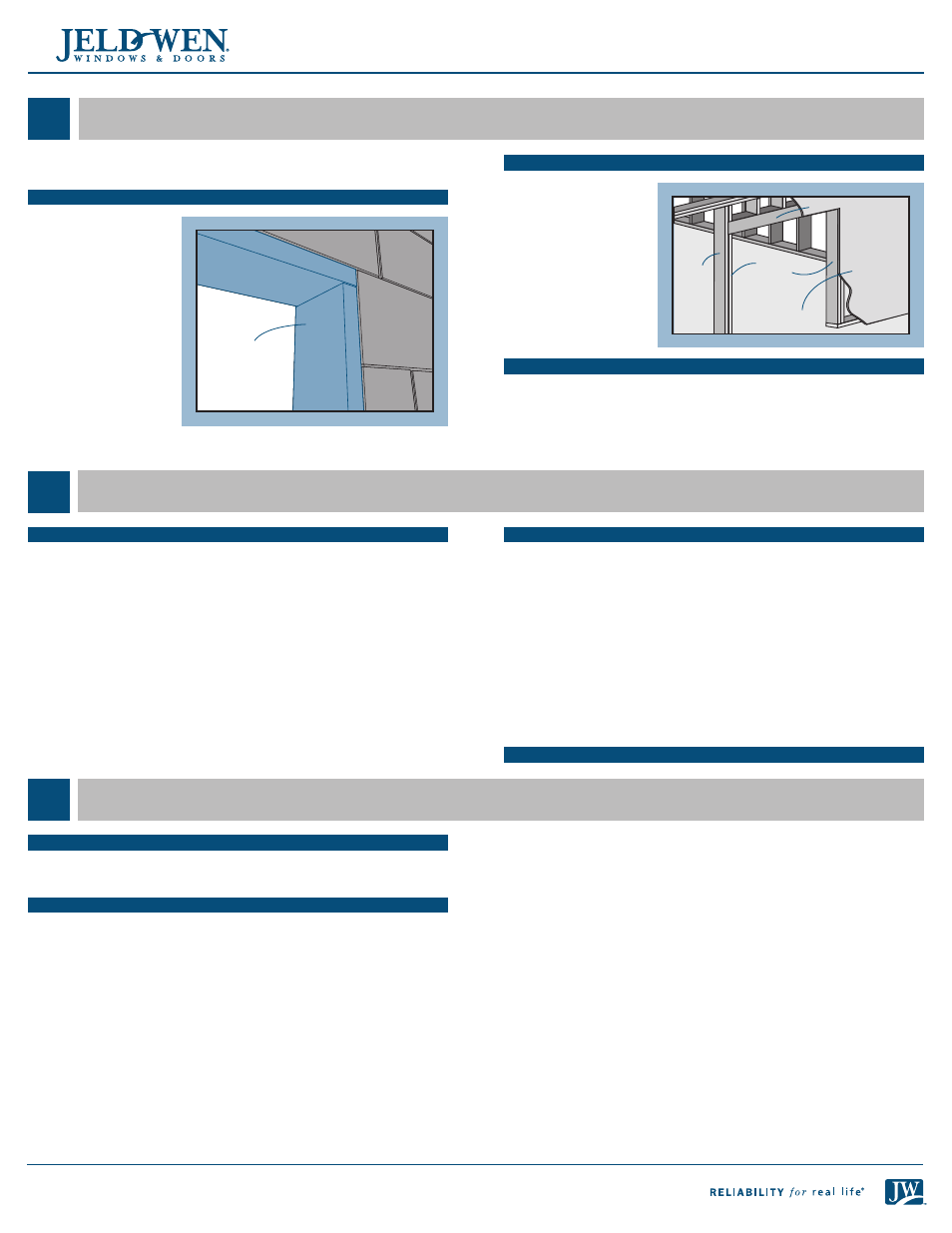

MASONRY/BLOCK WALL CONSTRUCTION
This installation
assumes that a
building professional
has already properly
fastened and sealed
a framework of studs
(often called a buck)
to the concrete/
masonry wall.
ROUGH OPENINGS
Buck
Trimmer
studs
Header
Sheathing
Sill area
King
stud
PROVIDED MATERIALS
• 2 - #9 x 2 1/2" screws
• Foam weatherstrip wedges (corner seal pads)
NEEDED MATERIALS
Note! Follow all material manufacturers’ instructions for proper use
and compatibility. When using flashing, spray adhesive/primer, sealant
and foam products, we recommend using the same manufacturer and
verifying compatibility.
• Lockset
• 10d galvanized casing nails (if plan to stain) or #8 x 3" deck screws (if
plan to paint)
• Non-compressible or water degradable shims
• Pre-formed sill pan or sheet metal flashing/bendable vinyl sheeting
for sill pan
• Backer rod 1/8" larger than the widest portion of the gap (used in
conjunction with sealant bead).
• Sealant: We recommend OSI ® QUAD ® Max Sealant or equivalent. This
can be used in any application and can be painted or ordered in a
color matched product, if desired.
MATERIALS AND TOOLS
• Polyurethane low expansion Window and Door foam: We recommend
OSI ® QUAD ® Foam or equivalent).
• Plastic drain screen with crisscross or woven pattern (sold in 6" widths
to protect rain gutters) for step-down landings
• 3/8" staples for step-down landings
• Drip cap if required because of door location and exposure. Doors
with an adequate overhang (see our Appropriate Protection
document at www.jeld-wen.com/learn/resources/care-maintenance)
may not need a drip cap.
For installations into a Buck:
Liquid applied flashing (Protecto Wrap LWM 200 or equivalent)
For installations into a stud-framed wall:
• 4", 6", or 9" (as required by local code and window configuration)
wide self-adhesive flashing: We recommend OSI ® QUAD ® Butyl
Flashing Tape or equivalent.
SAFETY AND HANDLING
SAFETY
• Read and fully understand ALL manufacturers’ instructions before
beginning. Failure to follow proper installation and finishing
instructions may result in the denial of warranty claims for
operational performance problems.
• Do not work alone. Two or more people are required. Use safe lifting
techniques.
• Use caution when handling glass. Broken or cracked glass can cause
serious injury.
• Wear protective gear (e.g. safety glasses, gloves, ear protection, etc.).
• Operate hand/power tools safely and follow manufacturer’s operating
instructions.
• Use caution when working at elevated heights.
MATERIALS AND DOOR HANDLING
• Make sure the operating panel is secured prior to installation.
• Heed material manufacturer’s handling and application instructions.
• Protect adhesive surfaces from dirt, moisture, direct sunlight and
folding over onto themselves.
• Handle in vertical position; do not drag on floor.
• Do not put stress on joints, corners or frames.
• Store door in dry, well-ventilated area in vertical, leaning position to
allow air circulation; do not stack horizontally.
• Protect from exposure to direct sunlight during storage.
• Install only into vertical walls and when conditions and sheathing
are dry.
IF INJURY OCCURS, IMMEDIATELY SEEK MEDICAL ATTENTION!
