6.2. Create a custom label
Note:
To customize you will need to use a blank white gauge face (supplied with every XD-16).
Innovate Motorsports will provide downloadable .pdf file templates for the most common sensors at:
www.innovatemotorsports.com
.
Print these templates on clear overhead foil suitable for your printer. Any stationary store carries those.
Depending whether you use an inkjet or laser printer, different foils will be needed.
1. Exacto
TM
knife or razor blade (or scissors)
2. Piece of plywood or sturdy cardboard as cutting background. (Do not use the kitchen table).
3. A 1/8” hole punch. Leather equipment stores or horse tack stores carry those.
4. A small Phillips screw-driver.
5. Blank white XD-16 face (included)

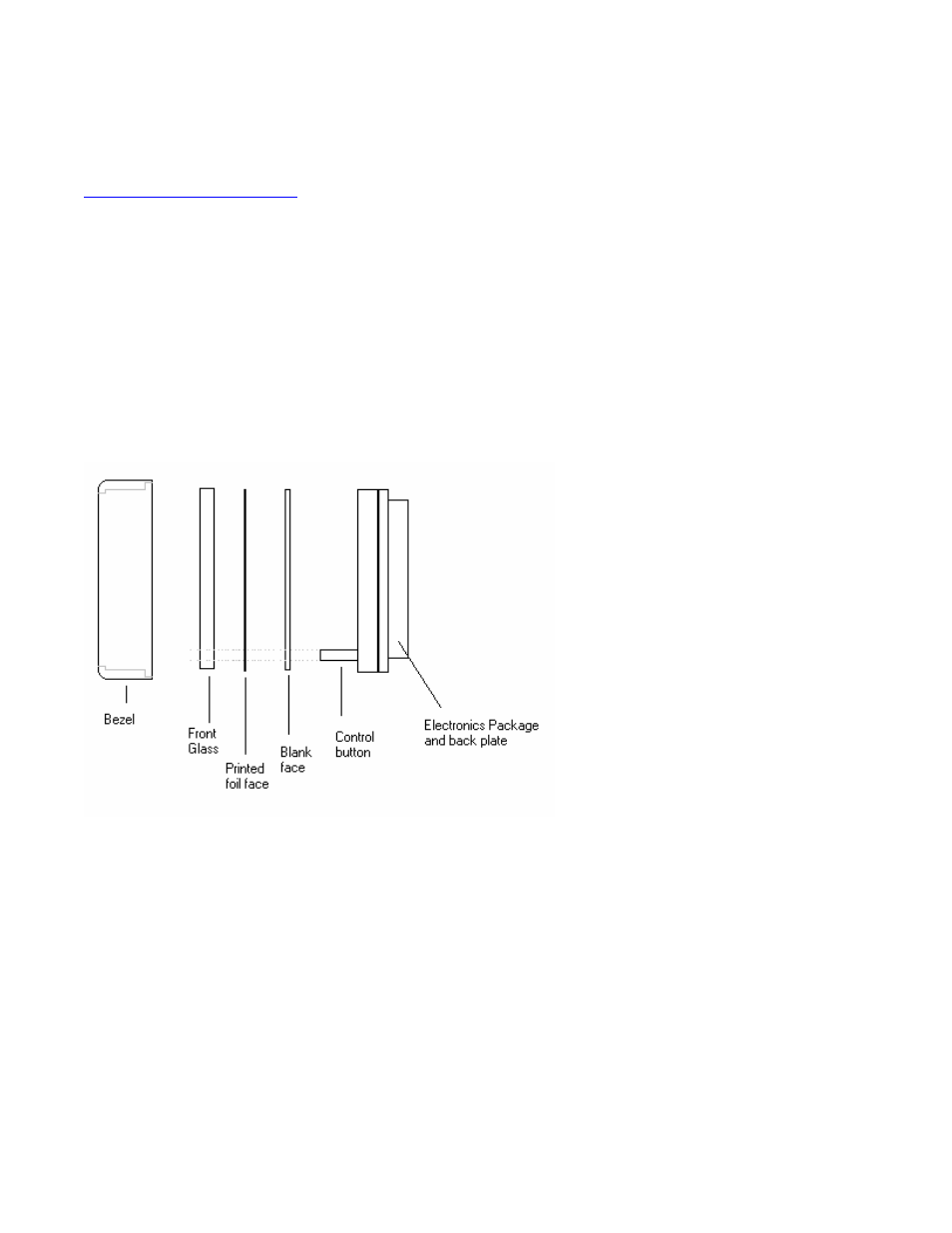

6.3. Assembly sequence of the XD-16 with foil face
Appendix A: Specifications
Supply voltage range
8V to 25V
Current draw
< 600 mA *
Weight
3oz / 82g
Serial port speed
19.2 kb
Max serial port cable length
15 ft.
*Current draw depends on outside brightness and number of LED segments lit.
