Innovate Motorsports XD-16 User Manual
Page 10
- 10 -

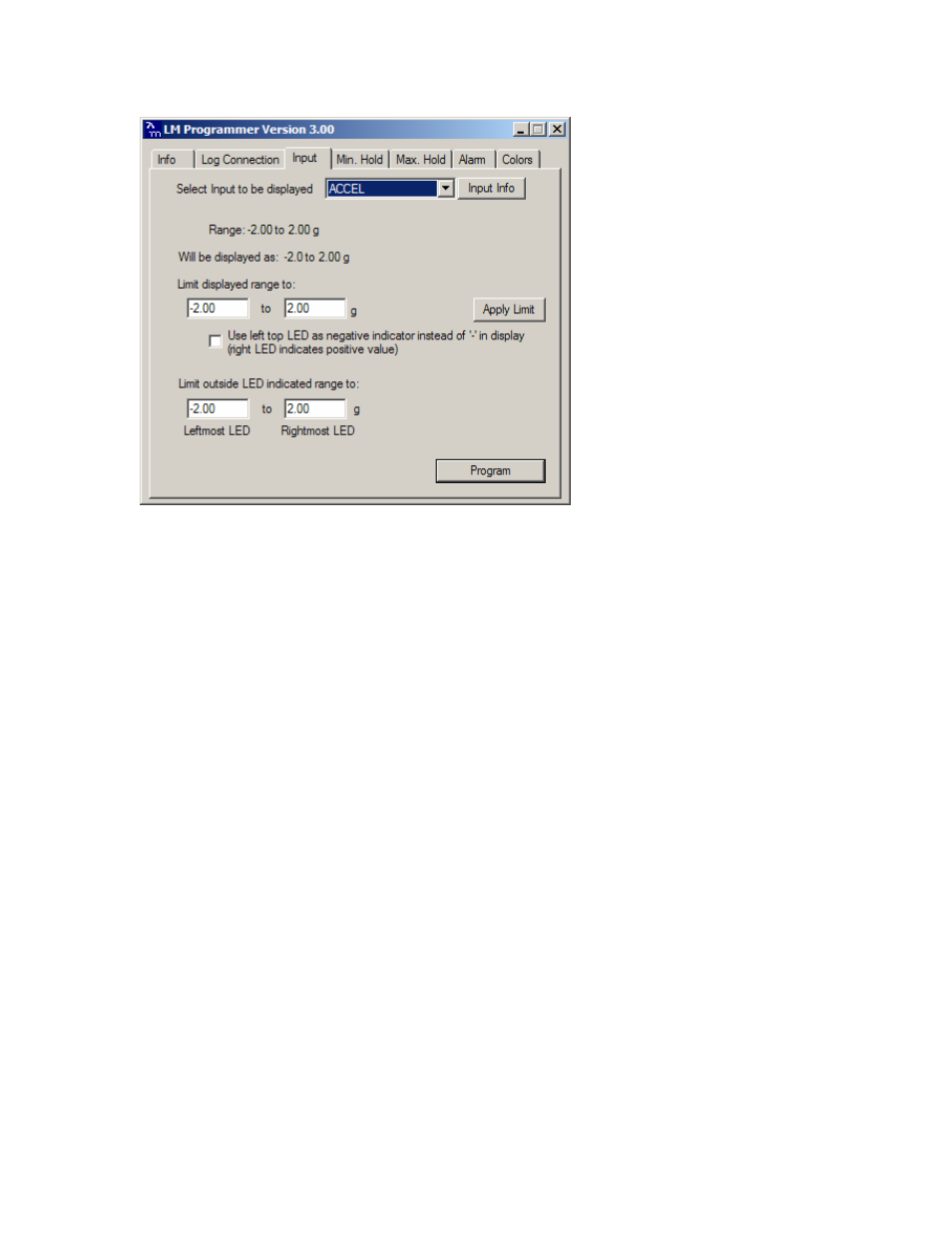

XD-16 can display the RPM in multiples of 10 RPM. If a channel is selected that has both positive and negative
values, a different screen will show:
This allows you to use the Indicator 1 and 2 LEDs as negative value indicators to preserve the 3-digit resolution of
the XD-16.
6. Once programmed, power off the XD-16 and exit LM Programmer. Reconnect the XD-16 to your MTS
chain.
Note: The XD-16 comes preprogrammed to display A/F. If you have multiple A/F channels the unit will
display the first one on the chain.
5.5. Programming the Min/Max hold functions
Click on the Min. Hold or Max. Hold Tab on the top of the window. The following screen will show up:
