10. Lens Port- The housing lens port is compatible with a wide variety of accessory filters and lenses. For
a selection of lens accessories available, please visit the Fantasea website –
11. Tripod Mounting Screw Holes – Enable mounting the housing on a tray, thereby allowing for the
addition of various image enhancement accessories to your underwater photo system. By choosing
any one of 3 adjustment positions, you can better determine how and where to position the housing
on the tray.

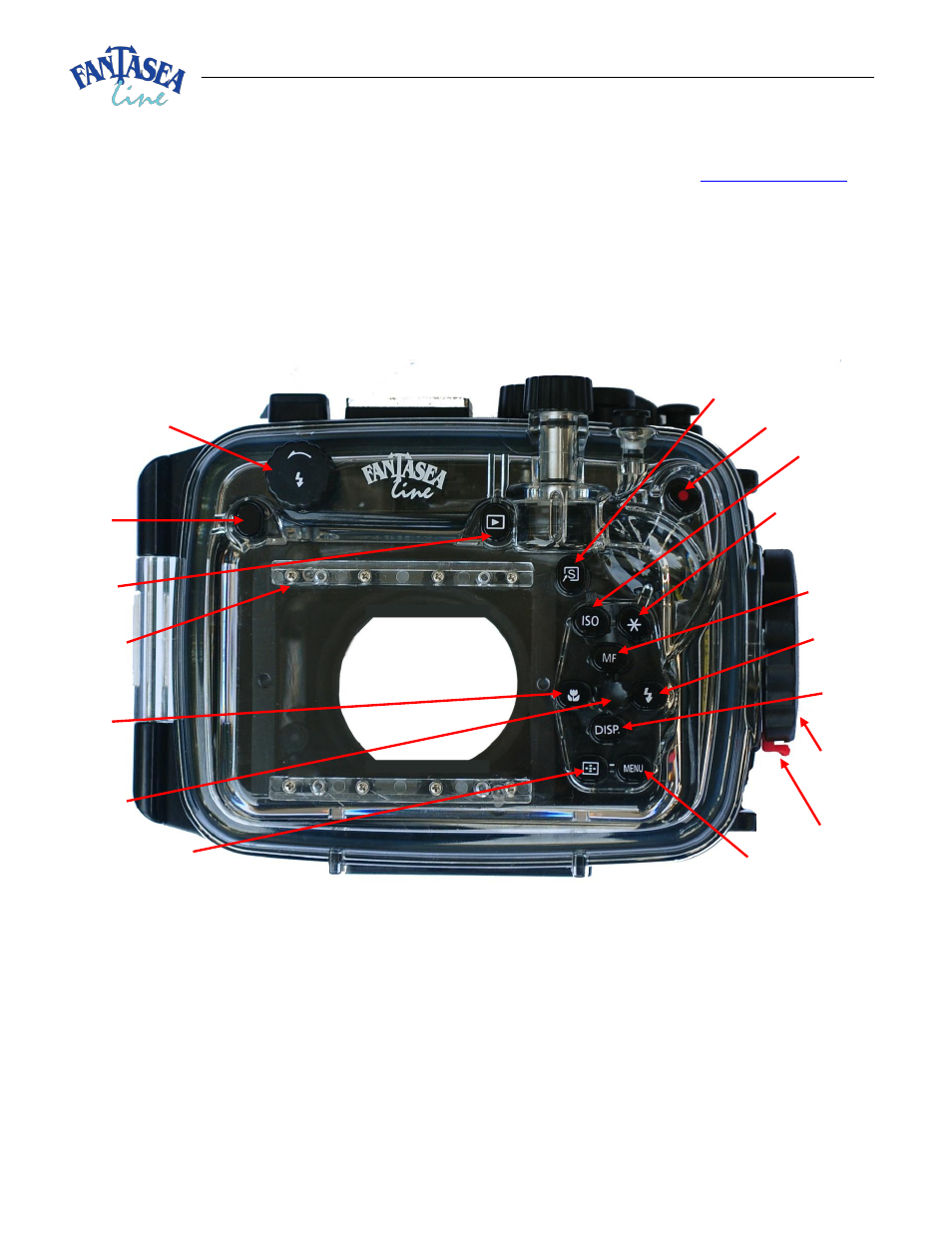

Back Side of Housing -
Corresponding numbered descriptions are found below the graphic*
* Image doesn’t feature the optional anti-glare hood, which can be installed over the LCD screen
Numbered descriptions below refer to corresponding numbers on the back side housing graphic above:
12. Shortcut – Pushing this control activates the camera shortcut button. Note that the function of this
button can be assigned through camera menus.
28. Flash Up
13. Movie Button
15. AE-L/FE-L /
Filtering Image Display
14. ISO / Delete
16. Manual Focus
/ Up
17. Flash / Right
20. Display /
Down
18. Macro /
Left
19. FUNC / SET
24. AF Frame Selector
/ Wi-Fi
21. Latch Dial
22. Latch Dial Lock
23. Menu
25. Anti-Glare
Hood Rails
26. Playback
12. Shortcut
27. Unlabeled
Control
