FG16 Housing Instruction Manual 20131101 16
2. Lift the housing Mode Dial so it doesn’t interfere with camera installation (image #9).
3. Hold the camera parallel to the housing and then gently install it inside (image #10). Avoid
inserting one side of the camera prior to the other, as this will make the installation difficult and
might cause damage to the camera or housing.
4. In the event of an optional moisture detector device installed inside the housing, take special
care not to touch or damage the device when installing the camera. The Device is located
inside the housing on the inner side of the housing latch dial (also in image #9).
5. Once the camera is inserted inside the housing, push the housing mode dial back down, so it
touches the camera mode dial.
6. If inserting a silica gel pack inside the housing in order to prevent moisture, it is best to insert it
on the left side of the camera, in the slot midway up between the two rubber shock absorber
mounts, where it doesn’t interfere with proper housing operation. It is important to make sure
that the silica gel pack doesn’t stick out, or else it might interfere with the watertight seal of the
housing.
CLOSING THE HOUSING
1. Turn the latch dial so that the small red tab located on the latch is pointed towards the front side
of the housing (image #11 on the following page).
2. Carefully close the back door of the housing, pushing it against the front door, while making sure
there is nothing sticking out of the housing or impairing the smooth closure of the back door.
Then firmly press the back door against the forward section of the housing.
3. Turn the secure dial clockwise till the lock dial clicks. The small red tab should then be pointed
towards the bottom of the housing (image #12 on the following page).

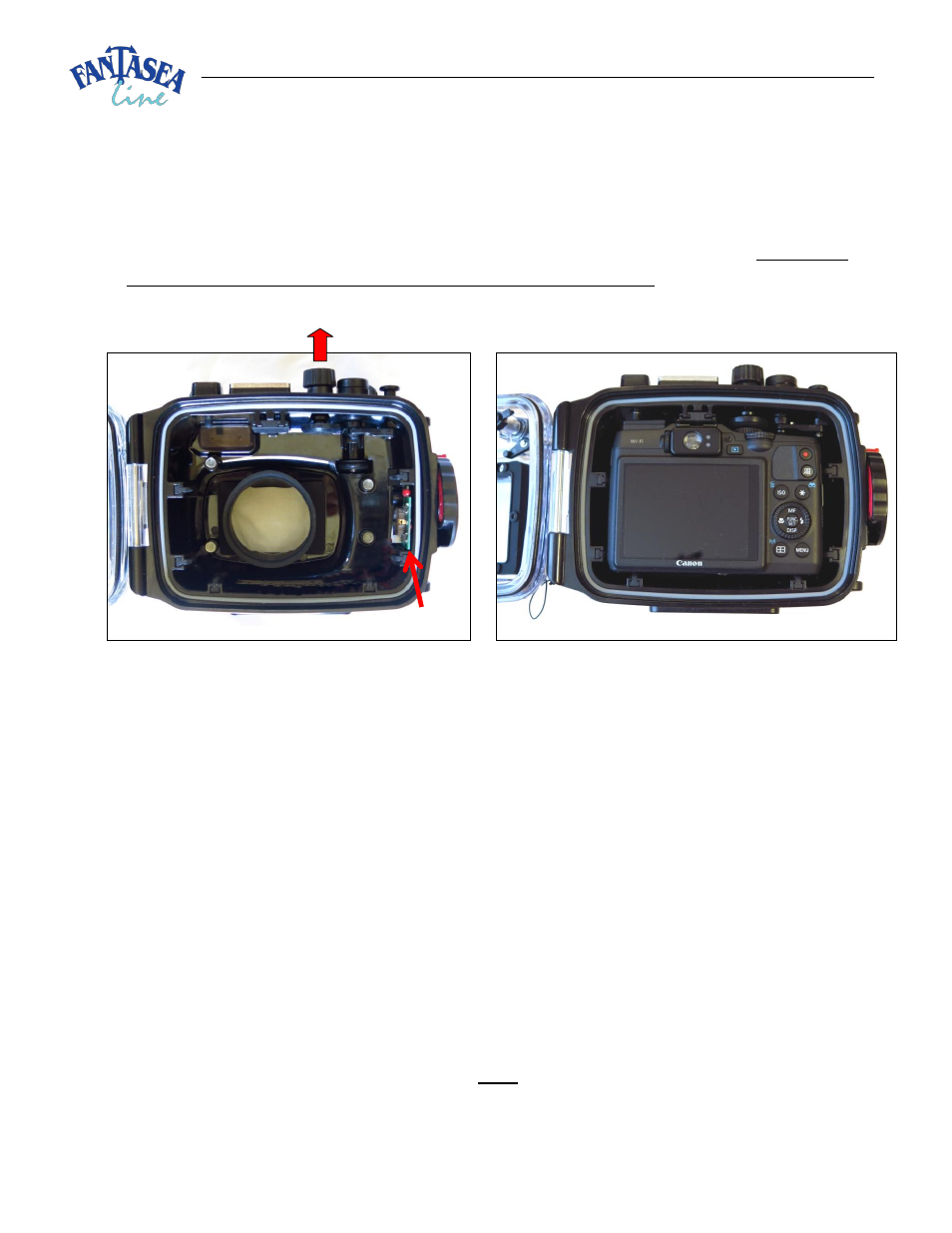

Image #9 Image #10
MODE DIAL
MOISTURE DETECTOR
