OBD2 & 1

Tool Controls

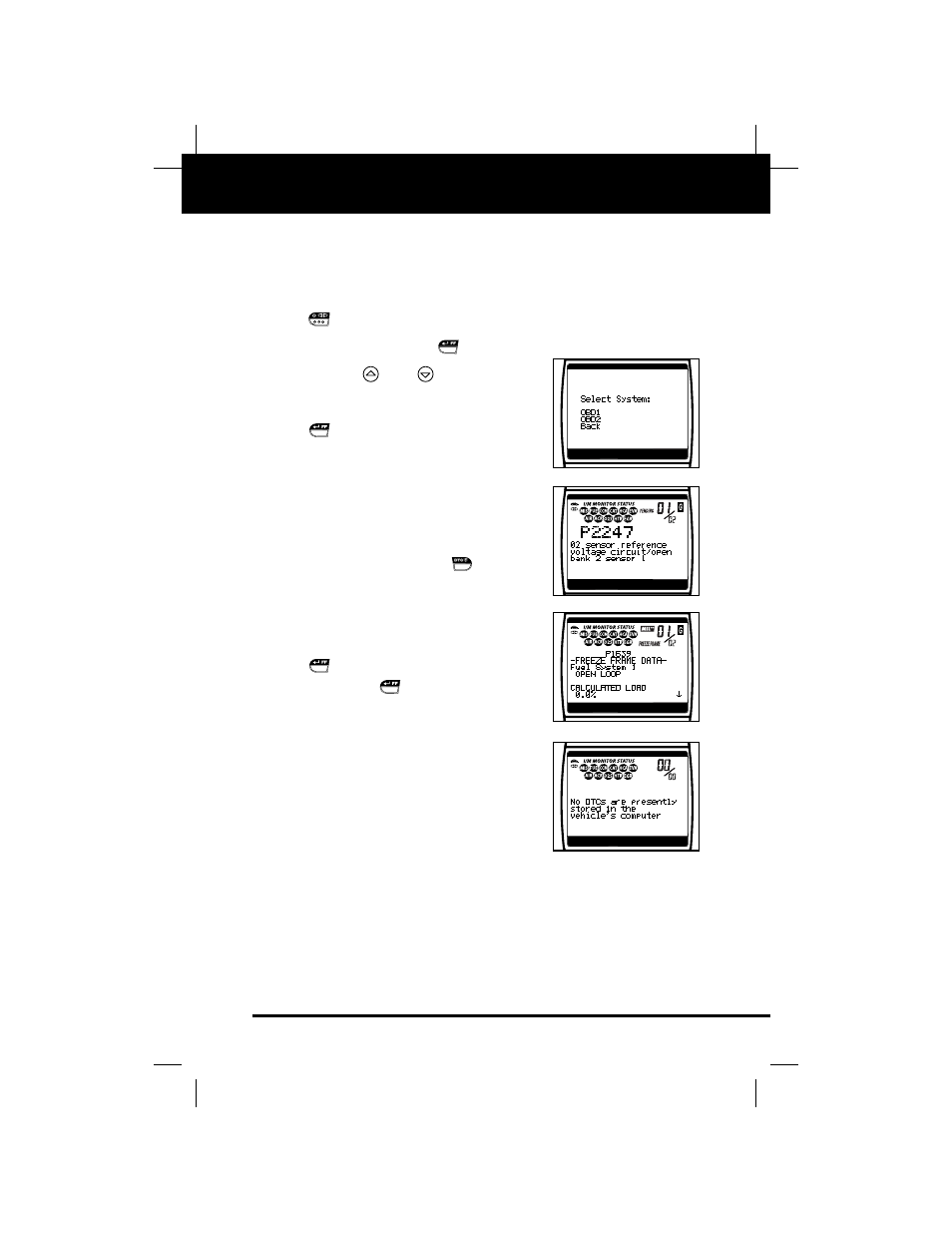

VIEWING DTCs IN THE TOOL’S MEMORY

To view DTC’s and other diagnostic data stored in the Tool’s memory,
do the following:

1. With no DLC cable connected to the Tool, press the POWER/LINK

button to turn the Tool “on”.

2. Press the ENTER/FF

button.

3. Use the

and

keys to highlight

and select your vehicle’s OBD system
(OBD1 or OBD2). Press the ENTER/FF

button to continue.

■

Select “Back” if you wish to return to
the Main Menu.

4. If DTCs are present in the Tool’s memo-

ry, the first stored DTC will display on
the screen.

■

If more than one DTC is present, use
the DTC SCROLL

button to

scroll through the DTC’s.

5. “For OBD2 systems only” - Saved

Freeze Frame data and Monitor status

are also available (press the

ENTER/FF

button to view Freeze

Frame data).

6. If no DTCs are in the Tool’s memory, a

“No DTC’s are presently stored in the
Tool’s memory” message displays.
