Tool Controls
DISPLAY FUNCTIONS
DISPLAY FUNCTIONS
See Figure 2 for the locations of items 1 through 16, below.
1. I/M MONITOR STATUS field - Identifies the I/M Monitor status
area. (This function is applicable to OBD2 systems only.)
2. Monitor icons - Indicate which Monitors are supported by the vehi-
cle under test, and whether or not the associated Monitor has run
its diagnostic testing (Monitor status). When a Monitor icon is solid,
it indicates that the associated Monitor has completed its diagnos-
tic testing. When a Monitor icon is flashing, it indicates that the vehi-
cle supports the associated Monitor, but the Monitor has not yet run
its diagnostic testing. (This function is applicable to OBD2 systems
only.)
3. Vehicle icon - Indicates whether or not the Tool is being prop-
erly powered through the vehicle’s Data Link Connector (DLC). A
visible icon indicates that the Tool is being powered through the
vehicle’s DLC connector.
4. Link icon - Indicates whether or not the Tool is communicat-
ing (linked) with the vehicle’s on-board computer. When visible, the
Tool is communicating with the computer. If the Link icon is not vis-
ible, the Tool is not communicating with the computer.
5. Computer icon - When this icon is visible it indicates that the
Tool is linked to a personal computer. An optional “PC Link Kit” is
available that makes it possible to upload retrieved data to a per-
sonal computer.
4
3
2 1 10 11 12
5
8
9
13
15
14
6
7

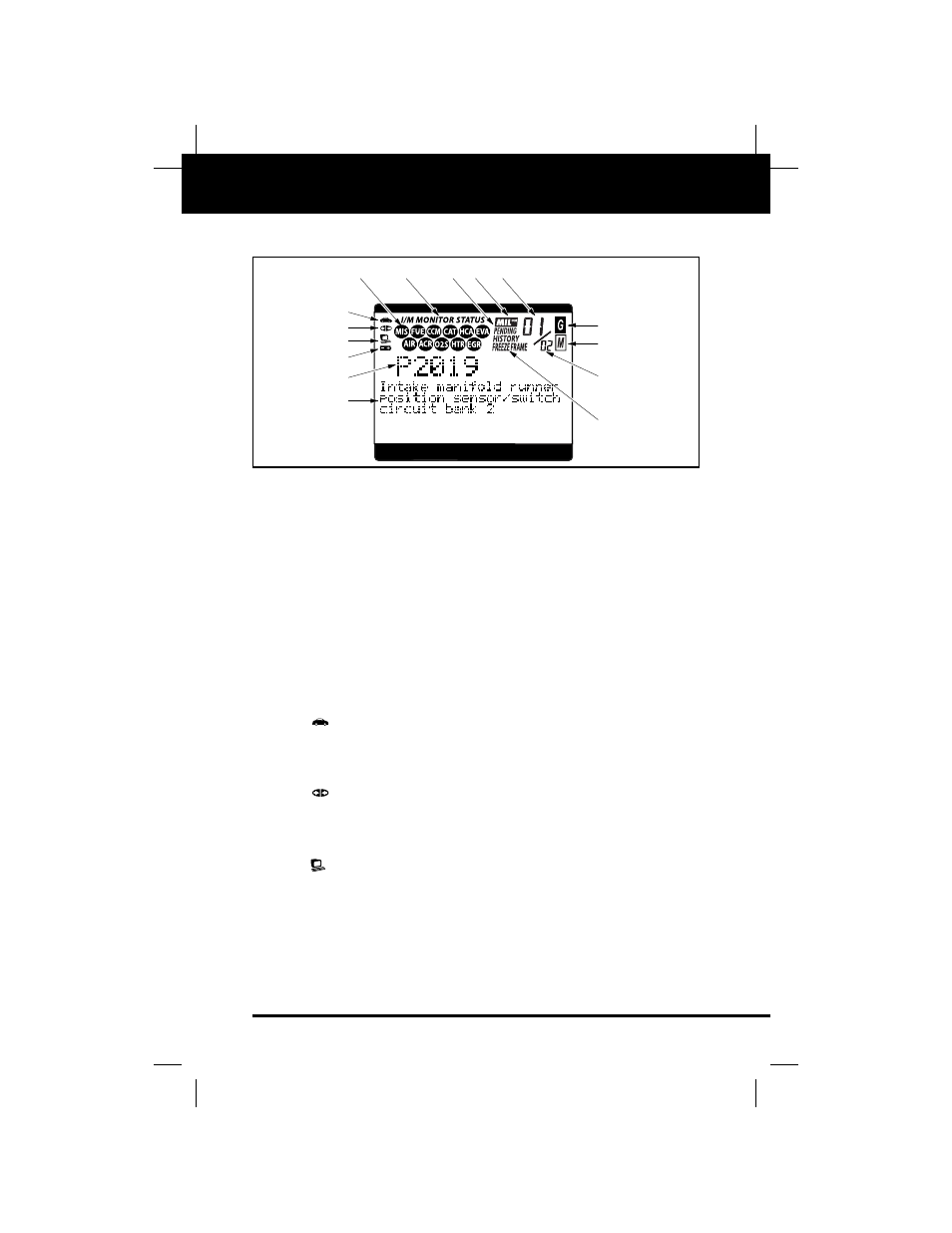

Figure 2. Display Functions
