Cyron Lighting HTW1010 RGB - Manual (Page 9)

_______________________
___ Appendix A ___
_______________________
Hardwire Instructions _____

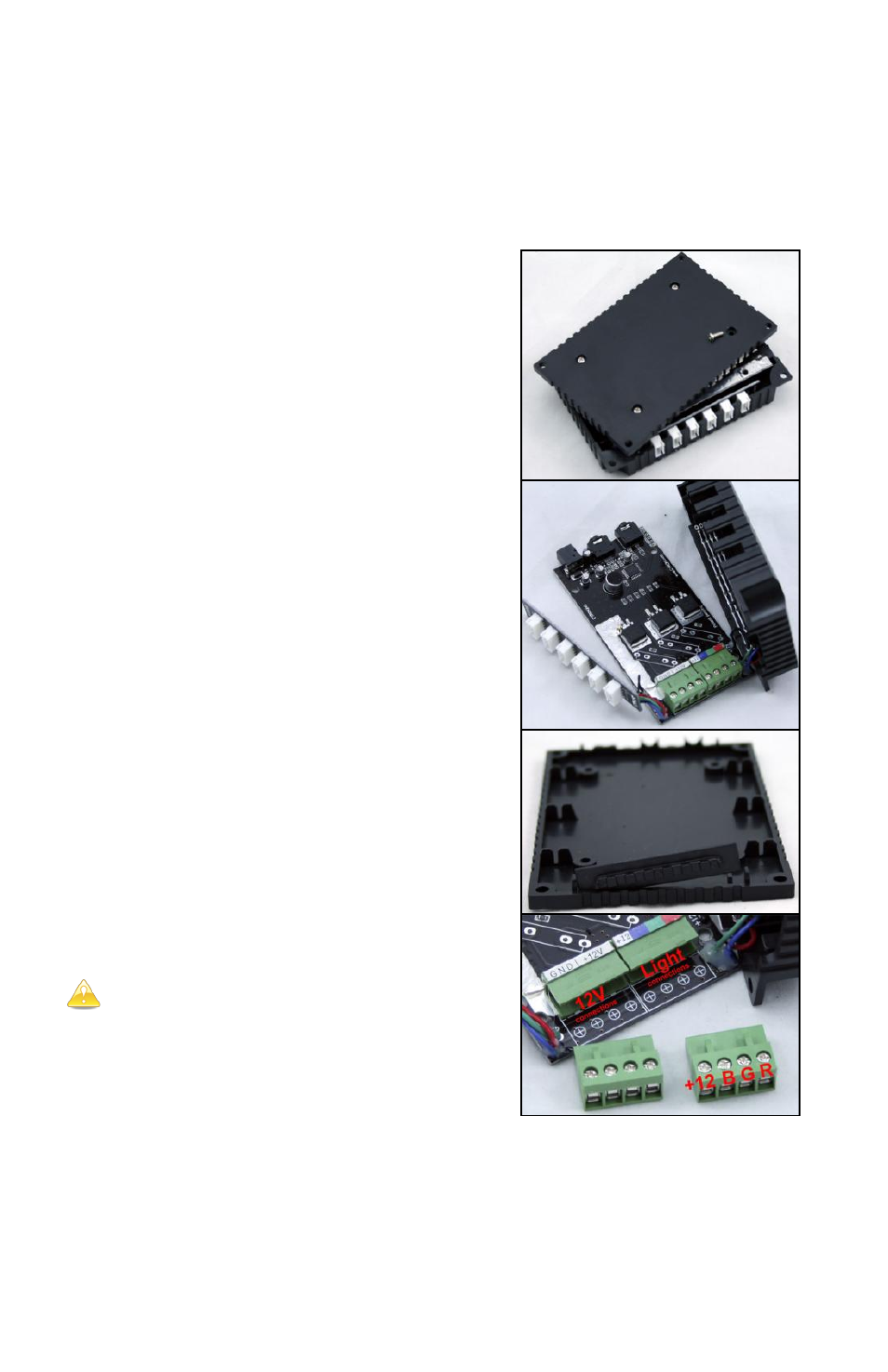

STEP ONE: Open the HTW1000 controller box
by removing four screws on the bottom.
STEP TWO: Gently take out one of the side
circuit boards holding the 6 ports. Lift the main
PCB to gain access to the terminal blocks. Be
careful not to break any wires connecting the
boards.
STEP THREE: Take out the housing wire cap.
STEP FOUR: Connect wires to the hub
following the color code shown in Table One.
Use minimum 18AWGx4 (4 conductor 18
gauge) wire for extending lightbar wires up to
100ft. For runs over 100ft you must increase
the wire gauge accordingly.
Do not connect too many wires directly to the
terminal block. To minimize wire clutter
connect one or two main leads to the terminal
block. Then by means of standard electrical
connections the main lead can be connected to
however many lights may be needed.
Note that 12VDC and lightbars wires can all be connected to the hub.
Connecting the 12VDC directly to the hub is required for power supplies over
60watts. Four terminal inlets have been provided for 12V positive and negative.
For power sources over 100W it is a good idea to use four wires, two for the
