Pole Mount
CE-PTZ-POLE
Install Guide
CLINTON Electronics
6701 Clinton Road
Loves Park, IL 61111
1.800.447.3306 Sales
1.800.549.6396 Support
1.800.633.8712 Fax
www.clintonelectronics.com

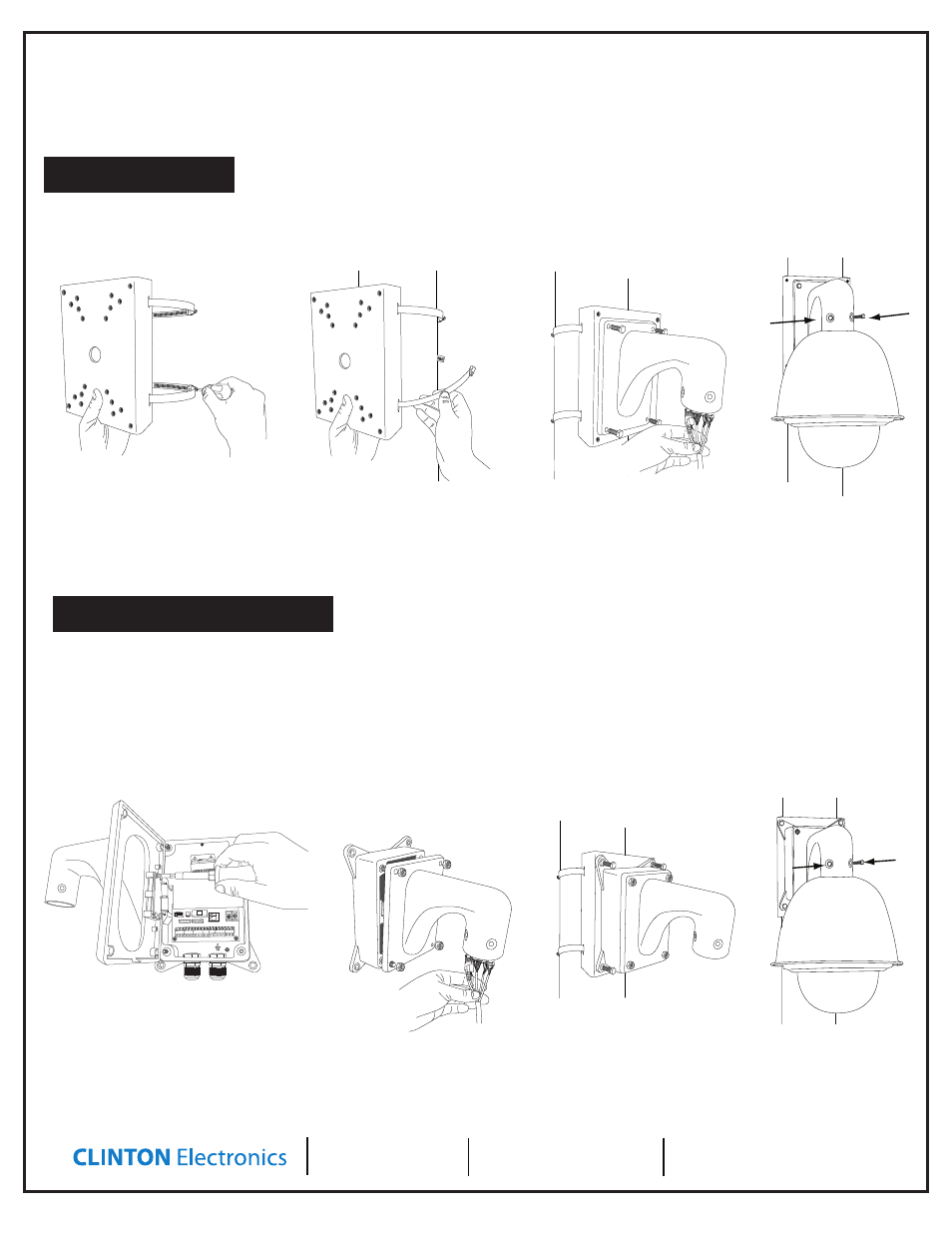

1. Loosen Cable ties
2. Place mount on pole
and wrap cable straps
around pole. Retighten
straps until snug.
3. Attach Outdoor Wall
Mount (CE-PTZ-WM),
using the supplied bolts,
and feed PTZ wires
though mount assembly.
07/20/10
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
H&F AC24V
AC24V
AC220V
Model CE-PTZ-WP24
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
H&F AC24V
AC24V
AC220V
Model CE-PTZ-WP24
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
H&F AC24V
AUX1 AUX2 COM ALM1 ALM2 ALM3 ALM4 ALM5 ALM6 ALM7 485A 485B 485A 485B AC24V
AC220V
AC220V
COM
JP2 JP2_2
AC24V FUSE
J1
FUSE 5X20
Outdoor Box Model CE-PTZ-WP24
0204201792
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
H&F AC24V
AUX1 AUX2 COM ALM1 ALM2 ALM3 ALM4 ALM5 ALM6 ALM7 485A 485B 485A 485B AC24V
AC220V
AC220V
COM
JP2 JP2_2
AC24V FUSE
J1
FUSE 5X20
Outdoor Box Model CE-PTZ-WP24
0204201792
Outdoor Box Mount
1. Secure the boxe’s hinge to the
wall mount bracket.
4. Feed PTZ wires through
the mount assembly, and
bolt to mount using the
supplied bolts.
3. Attach Outdoor Wall
Mount (CE-PTZ-WM),
using the supplied bolts
and washers.
Direct Mount
3. Bolt the outdoor
box assembly to the
pole mount using the
supplied bolts and
washers.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
H&F AC24V
AUX1 AUX2 COM ALM1 ALM2 ALM3 ALM4 ALM5 ALM6 ALM7 485A 485B 485A 485B AC24V
AC220V
AC220V
COM
JP2 JP2_2
AC24V FUSE
J1
FUSE 5X20
Model CE-PTZ-WP24
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
H&F AC24V
AUX1 AUX2 COM ALM1 ALM2 ALM3 ALM4 ALM5 ALM6 ALM7 485A 485B 485A 485B AC24V
AC220V
AC220V
COM
JP2 JP2_2
AC24V FUSE
J1
FUSE 5X20
Model CE-PTZ-WP24
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
H&F AC24V
AUX1 AUX2 COM ALM1 ALM2 ALM3 ALM4 ALM5 ALM6 ALM7 485A 485B 485A 485B AC24V
AC220V
AC220V
COM
JP2 JP2_2
AC24V FUSE
J1
FUSE 5X20
Outdoor Box Model CE-PTZ-WP24
0204201792
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
H&F AC24V
AUX1 AUX2 COM ALM1 ALM2 ALM3 ALM4 ALM5 ALM6 ALM7 485A 485B 485A 485B AC24V
AC220V
AC220V
COM
JP2 JP2_2
AC24V FUSE
J1
FUSE 5X20
Outdoor Box Model CE-PTZ-WP24
0204201792
Follow steps 1 through 2 above to assem-
ble the CE-PTZ-POLE, then follow these
steps to mount the outdoor box.
2. Feed PTZ wires though
mount and make connec-
tions. Close the mount
onto the box and secure
together using the sup-
plied lock nuts.
