Clinton Electronics CE-PTZ-CR - Manual (Page 3)

Outdoor Ceiling Mount
CE-PTZ-IP
Install Guide
CLINTON Electronics
6701 Clinton Road
Loves Park, IL 61111
1.800.447.3306 Sales
1.800.549.6396 Support
1.800.633.8712 Fax
www.clintonelectronics.com

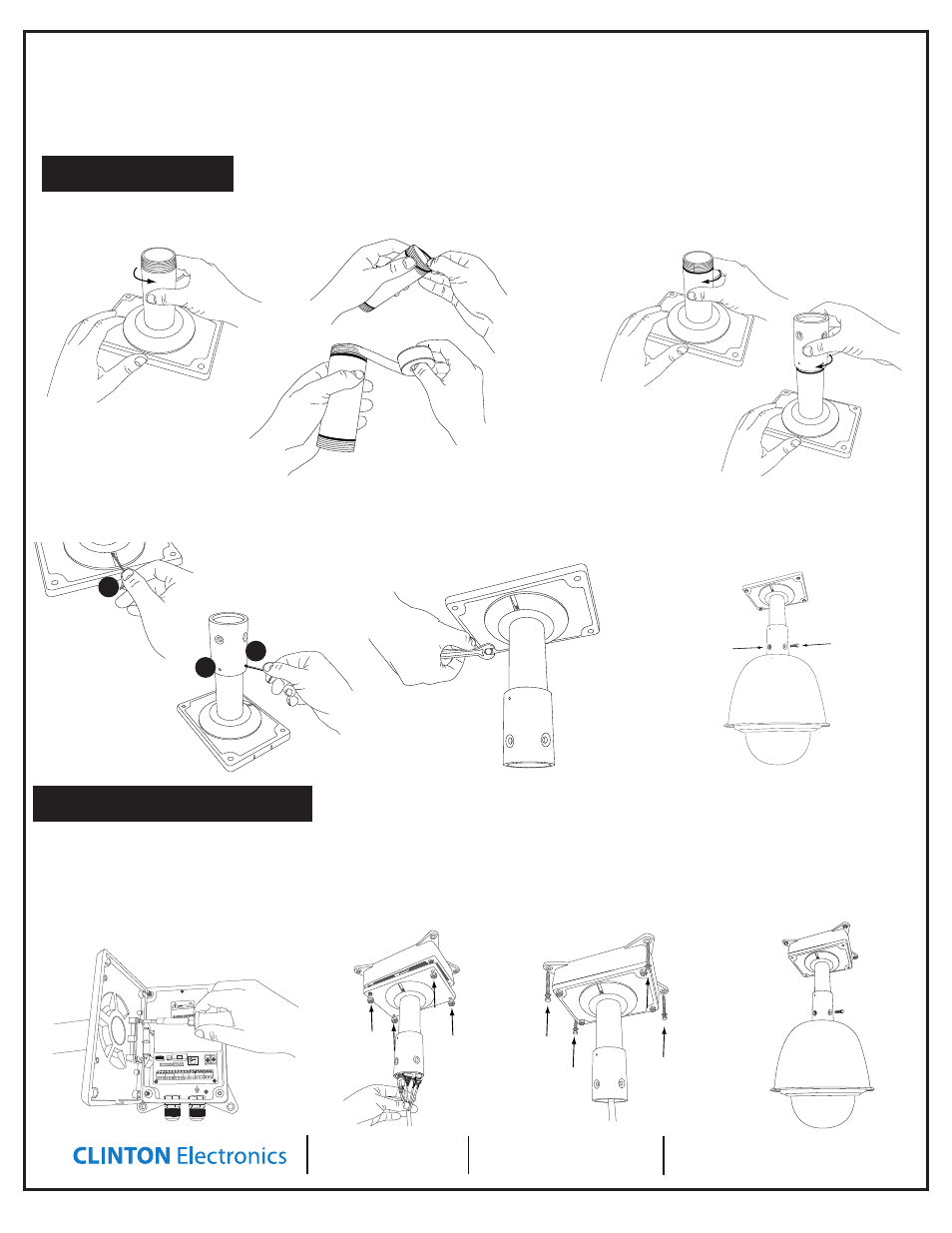

1. Unscrew Pipe from Base.
2. Place rubber washer on each end
of the pipe, then wrap each end with
pipe thread tape.
3. Replace threaded pipe section into
the base, then screw on adaptor to
threaded pipe end.
4. Insert thread set screws in their
appropriate locations (3 places).
5. Secure to mounting surface
using the appropriate mounting
hardware for your location.
6. Feed PTZ wires through the
mount assembly, and bolt to mount
using the supplied bolts and wash-
ers.
2. Feed the PTZ wires though
the mount and make con-
nections. Close the mount
onto the box and secure us-
ing supplied lock nuts.
07/20/10
1
3
2
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
H&F AC24V
AC24V
AC220V
Model CE-PTZ-WP24
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
H&F AC24V
AC24V
AC220V
Model CE-PTZ-WP24
4. Feed any excess wires into
mount assembly, and bolt to
mount using supplied bolts
and washers.
Direct Mount
Outdoor Box Mount
Follow steps 1 through 4 above to
assemble the CE-PTZ-IP, then follow
these steps to mount the outdoor box.
1. Connect Outdoor Box to the
mount using the supplied screws.
3. Secure assembly
to mounting surface
using appropriate
hardware.
