AVerMedia AVerKey300 User’s Manual
16
The LED Panel
Aside from the touch button panel, you will also find an LED Panel on the
AVerKey
300
hardware case.

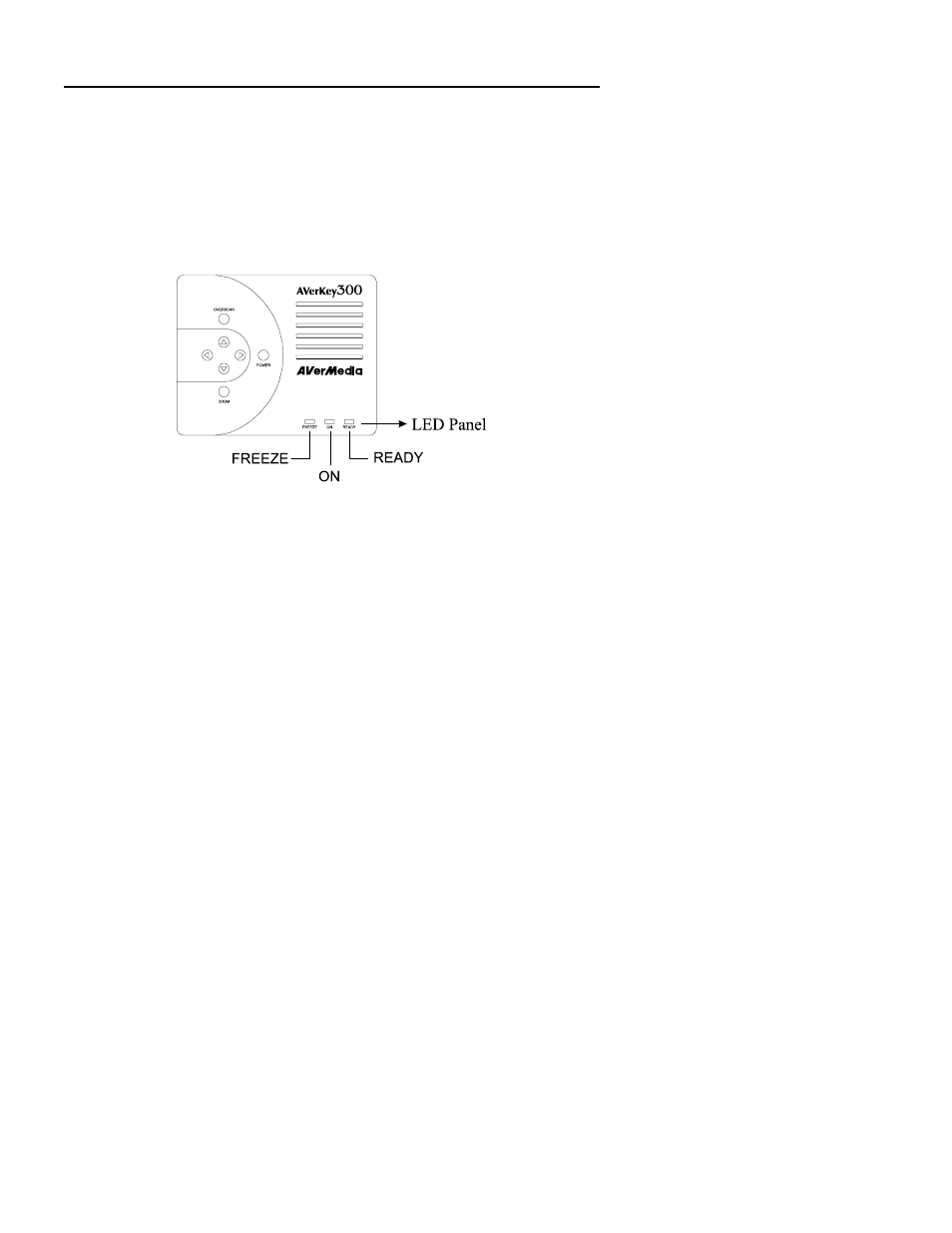

The figure and descriptions below show what each LED indicator in this
panel represents.
FREEZE : This LED shows whether FREEZE or
UNFREEZE is in operation. (FREEZE is a red
LED in the NTSC version and a green LED in the
PAL version.)
If this LED is on, it means that the user has
paused, that is, frozen the screen.
ON : This (green) LED is the power on/off indicator. If
this LED is on, it indicates that the
AVerKey
300
has been powered on.
READY : If this (red) LED is on, it indicates that the
AVerKey
300
is ready for use.
