Chapter 2 Hardware Installation and Setup
7
supplied Computer Extension Cable. (A
Computer Adapter should be used to connect.)
VGA OUT : The computer monitor should be connected to this
port. (A Monitor Adapter is needed to connect the
Macintosh or NEC monitor.)
Connecting an IBM PC and VGA Monitor
To connect the AVerKey
300
with an IBM PC or compatible and a

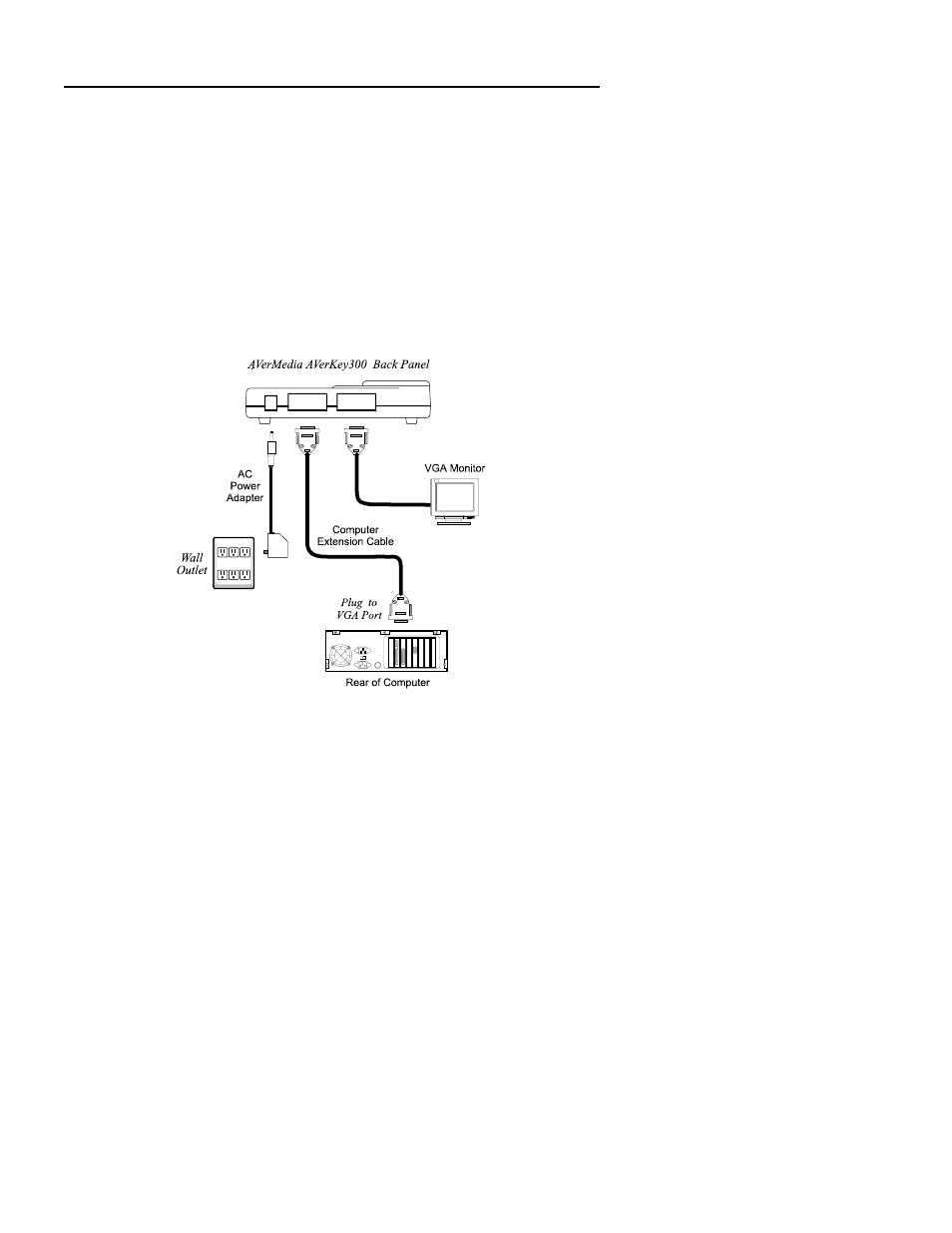

VGA monitor, follow the setup diagram and step-by-step procedure
below.
1. Connect the AVerKey
300
to the PC.
Plug one end of the supplied Computer Extension Cable to the
AVerKey
300
“VGA IN” port and the other end to the PC’s VGA
port.
2. Connect the VGA monitor to AVerKey
300
.
Plug the VGA monitor cable to the AVerKey
300
“VGA OUT”
port.
