Ashland I-175XL2 - Manual (Page 6)

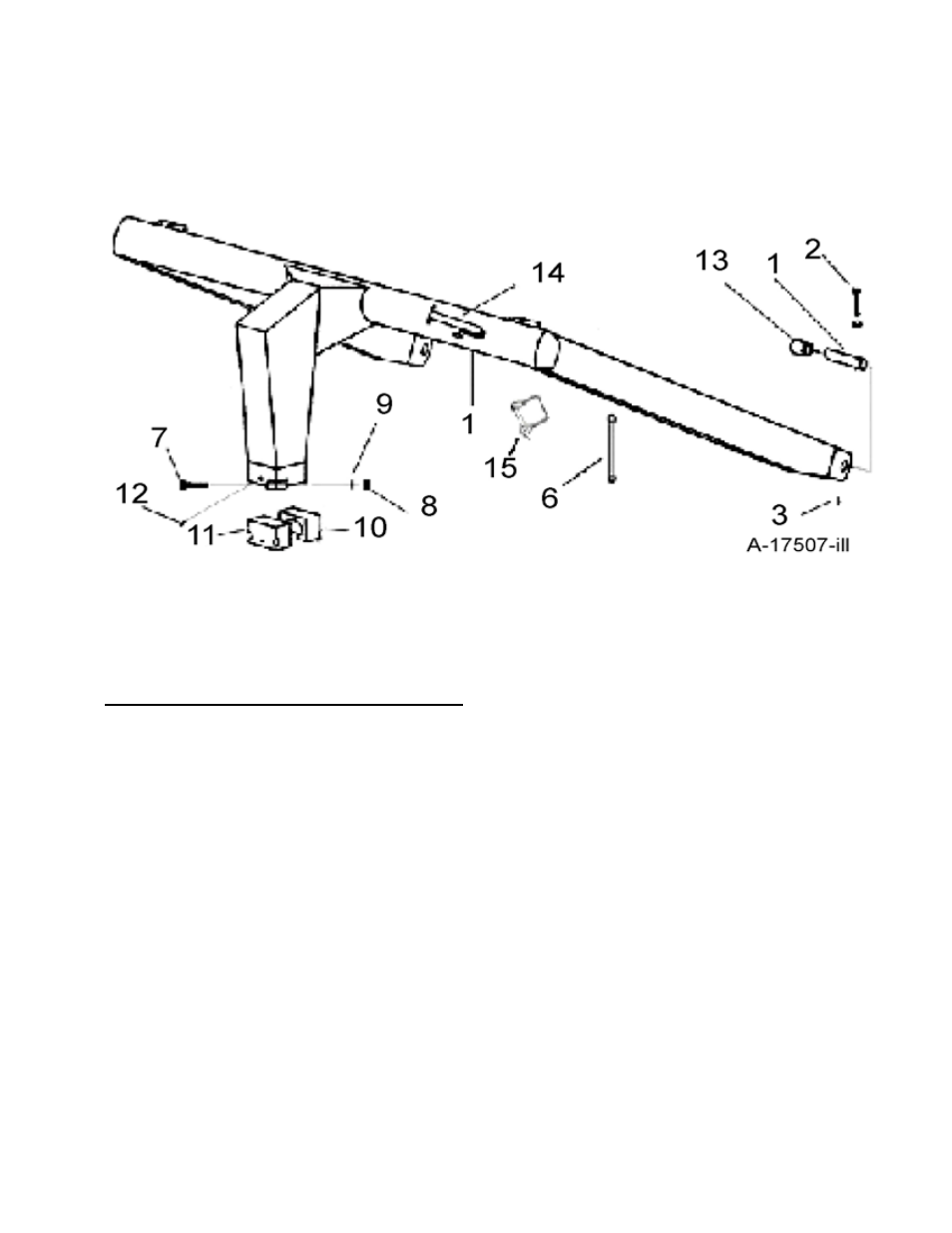

PARTS LIST
GOOSENECK FRAME ASSEMBLY
MODEL I-175 XL2
KEY NO. PART NO. DESCRIPTION
1. A17507 Gooseneck Frame
2. AFB-00054 Bolt, 1/2” NC x 3-1/2” Lg.
3. 14505 Grease Zerk - Straight
4. A10152A Pin, Frame Attach
6. A123230-20 Travel Lock
7. AFB-00022 Bolt, 7/8”NF x 4-1/2” Lg. Grade 5
8. 7597 Nut, 7/8”NF
9. 8125 Lockwasher 7/8”
10. A14002 Cast Socket Half - Rear
11. A14003 Cast Socket Half - Front w/Zerk Hole
12. A2206 Grease Zerk - Long Shank
13. A14039 Bushing, 2-3/8” OD x 2” ID x 2” Long
14. OPT-00001 Hitch Jack
15. A125006 Safety Link Pin
GOOSENECK FRAME ASSEMBLY
Up to S/N 21763
