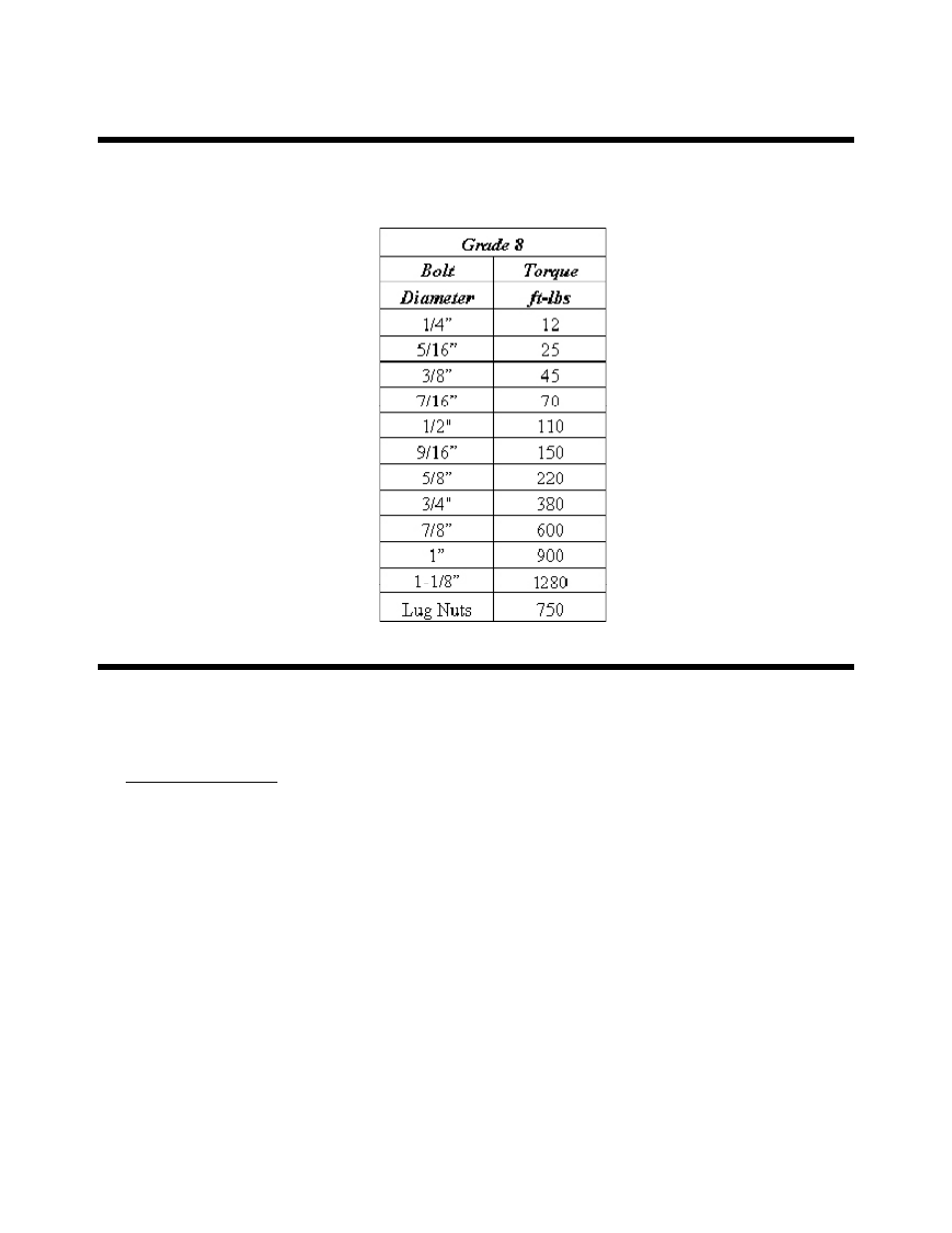

T

ORQUE

S

PECIFICATIONS

L

UBRICATION

1. Grease all zerks every 8 hrs of operation with high quality, general-purpose grease.

a)

Grease until grease flows from around pin.

Lubrication Points

1. Hitch – Horizontal and vertical pins.

2. Lift Cylinders – Rod end &Trunion; Both left & right sides.

3. Front Arm Pivot Joint – Both left & right sides.

4. Apron Cylinders – Rod clevis pin; Both left & right sides.

5. Apron Pivot Pin – Both left & right sides.

6. Hold-down Rollers – Both left & right sides.

7. Floor Rollers – Both left & right sides.

8. Tapered Rollers – Both left & right sides.
