KEY NO. PART NO. DESCRIPTION
1 A175H01 Barrel Assembly
2 A300H06 O-ring seal, 4” OD x 3/16”
3 A300H11 Head gland
4 A300H12 Retainer ring
5 A22H15 O-ring, 1-1/2” x 1/8”
6 A22H15A Backup washer
7 A300H13 Head cap
8 A22H18 Capscrew, 1/4 NC x 1”
9 A22H17 Wiper seal, 1-1/2” ID
10 A123345 Block type apron cyl., rod end cyl. 1”
11 A123351 Pin keeper bushing
12 A123336 Pin: Tab Head
13 A175H02 Shaft, 1-1/2” diameter
14 A45H05 Piston gasket, 1”
15 A300H07 Piston, 4” dia.
16 A300H05 Back up washer, 4” OD
17 A300H04 Cast iron ring, 4” OD
18 A300H03 Piston nut, 1” NF
19 A1217E Pin, 1” x 3-1/2” w/tab head
20 8602 Cotter pin
21 AFB-00062 Allen set screws
22 14505 Grease fitting
23 AFB-00015 Bolt, 1/2” x 1-1/2” NC
A300H14B Packing kit containing:
1 - A300H04 2 - A22H15 2 - A300H05
1 - A22H15A 2 - A22H06 1 - A22H17
1 - A45H05

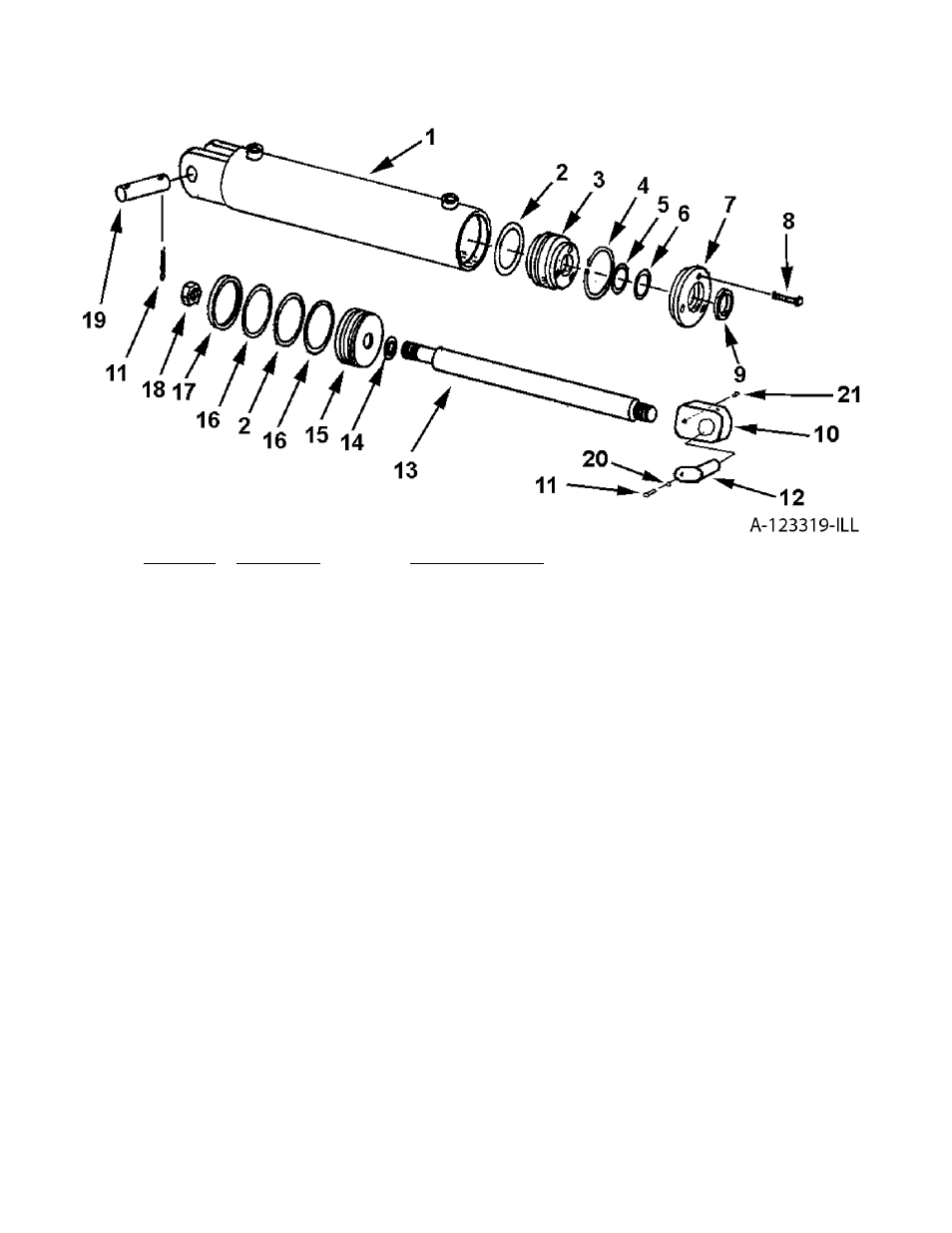

4” x 13” APRON CIRCUIT
A123319
