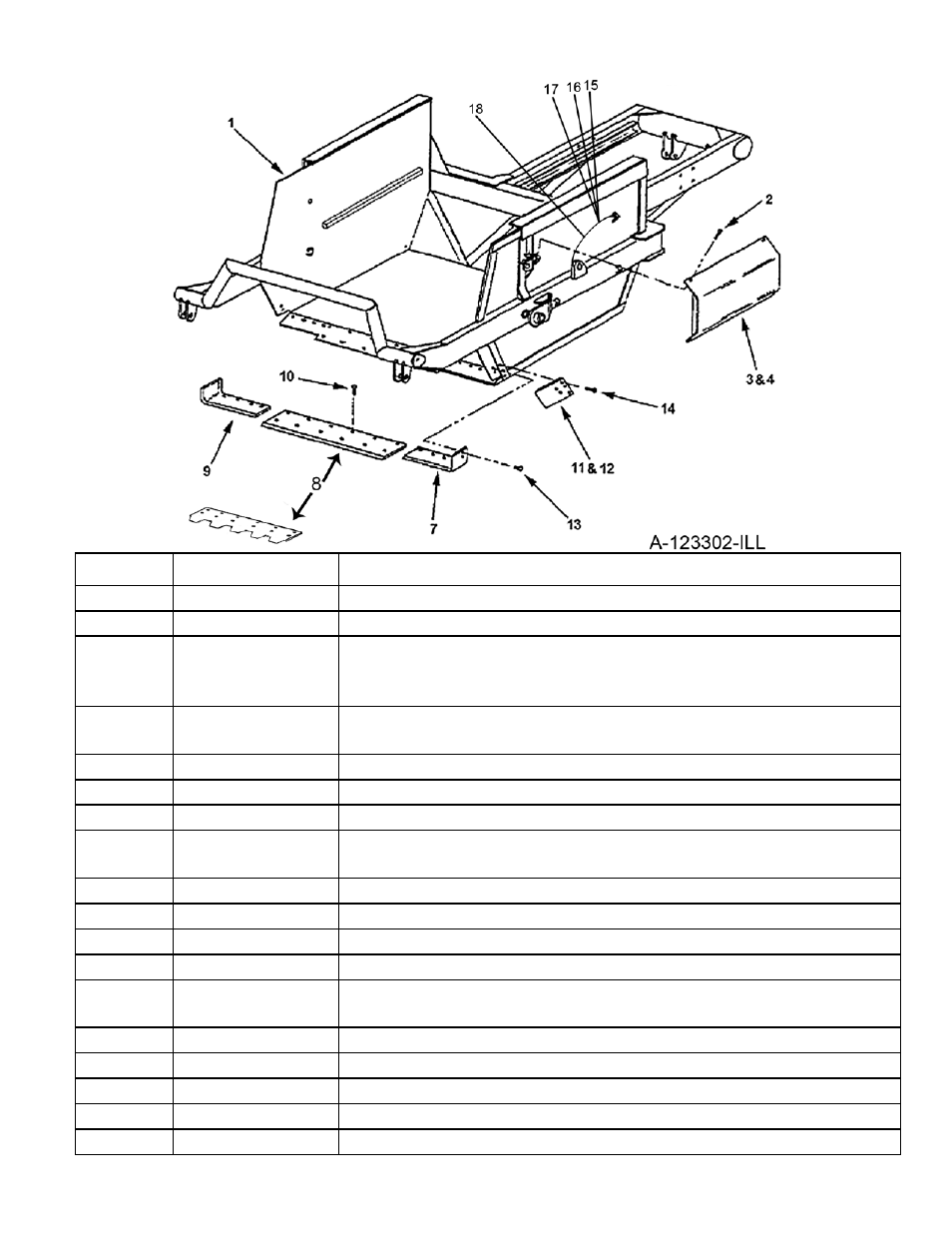

Key # Part # Description
1. A123164 Bowl & Frame I-130 XL2
2. 6835 Bolt, 3/8” NC x 1” gr.5
3. A10157
A123309-77
A123309-62L
Up To S.N. 20495: Cylinder Guard - Left Hand
S.N. 20496 to S.N. 20749: Cylinder Guard - Left Hand
S.N. 20750 and up Cylinder Guard - Left Hand
4. A10158
A123309-62L
Cylinder Guard- Right Hand up to S.N. 20749
Cylinder Guard- Right Hand for S.N. 20750 and up
5. 14505 Grease Fitting
6. 7450 Nut, 3/8” NC gr. 5
7. A123332L Left Cutting Edge, 8” x 22-1/2” x 7/8” Hardened
8. A123331
A123331SER
Center Cutting Edge, 8” x 22 1/2” x 7/8” Hardened
Center Cutting Edge, 8” x 22 1/2” x 7/8” Hardened
9. A12332R Left Cutting Edge, 8” x 22-1/2” x 7/8” Hardened
10. PB9P-NC-088-0275 Plow Bolt, 7/8” NC x 2-3/4” (12 Required)
11. A123338L (Optional) Left Bank Shaver Side Blade, 7/8” holes
12. A123338R (Optional) Right Bank Shaver Side Blade, 7/8” holes
13. PB9P-NC-088-0275
AFN-00019
Plow Bolt, 7/8” NC x 2-3/4” (6 required per blade)
Nut: 7/8” NC (6 Required per blade)
14. AFB-00094 Flanged Bolt: 3/8 NC x 1”
15. A12019 Greas fitting 1/4 x 28.54 Long
16. A125026 Bulkhead Nut
17. A123309-89 Single Hole Tab
18. A125022 18” Grease Line
