Ashland I-130XL2 Ver 3-2007 User Manual
Page 19
KEY NO.
PART NO.
DESCRIPTION
1.
A125176-10
Barrel Weldment (1)
2.
A125176-20
Shaft (1)
3.
A125176-32
Spacer (1)
4.
A125176-30
Piston (1)
5.
A125176-31
Head (1)
6.
A125175-33
1 1/4” Nylock Nut (1)
8.
A125176-40
Seal Kit (1)
9.
A125175-35
Bearing
10.
A125175-36
Snap Ring
11.
A125175-37
Grease Zerk (1)

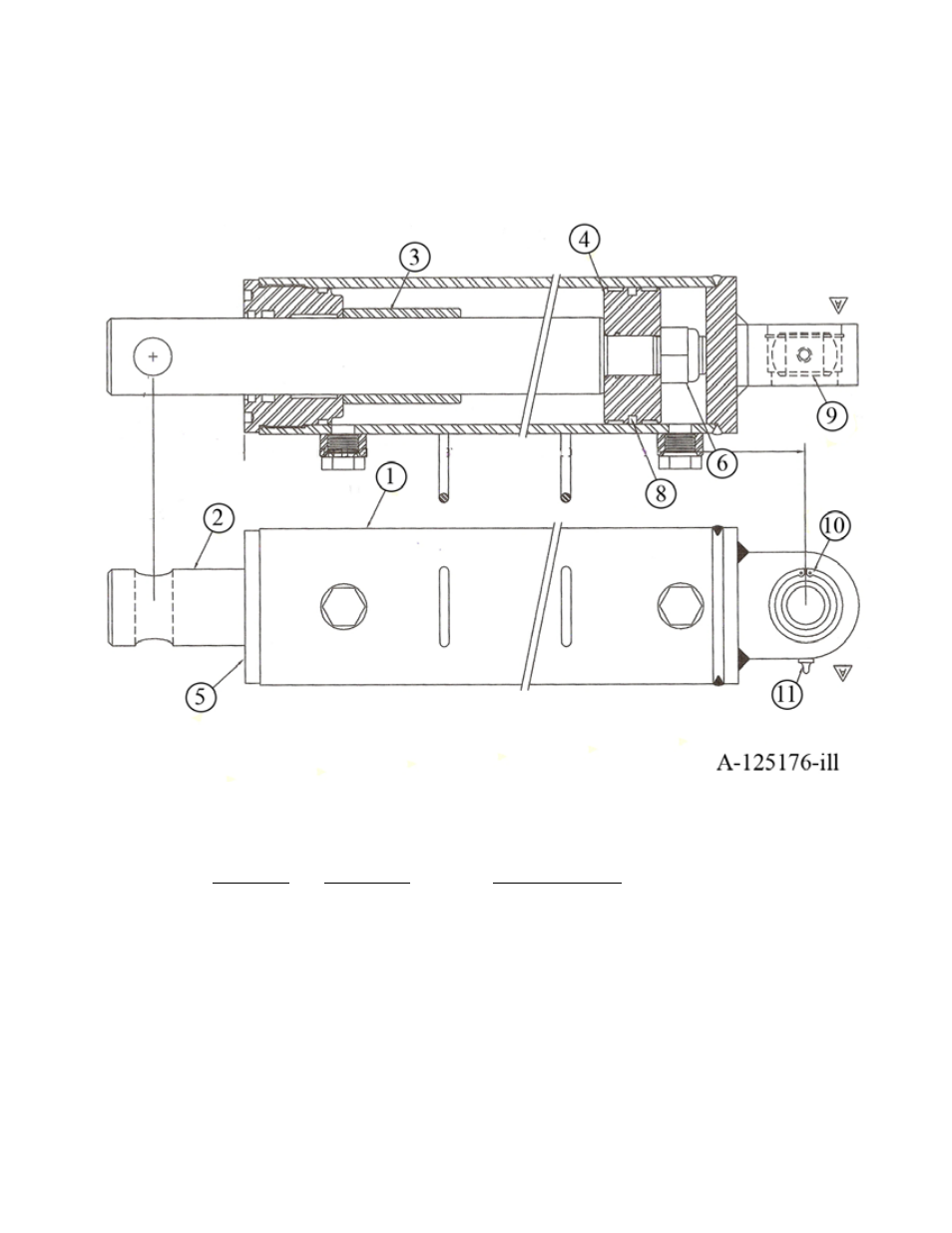

I-130 Push Gate Cylinder Assembly
Part Number A125176
4 1/2” BORE X 54” STROKE
