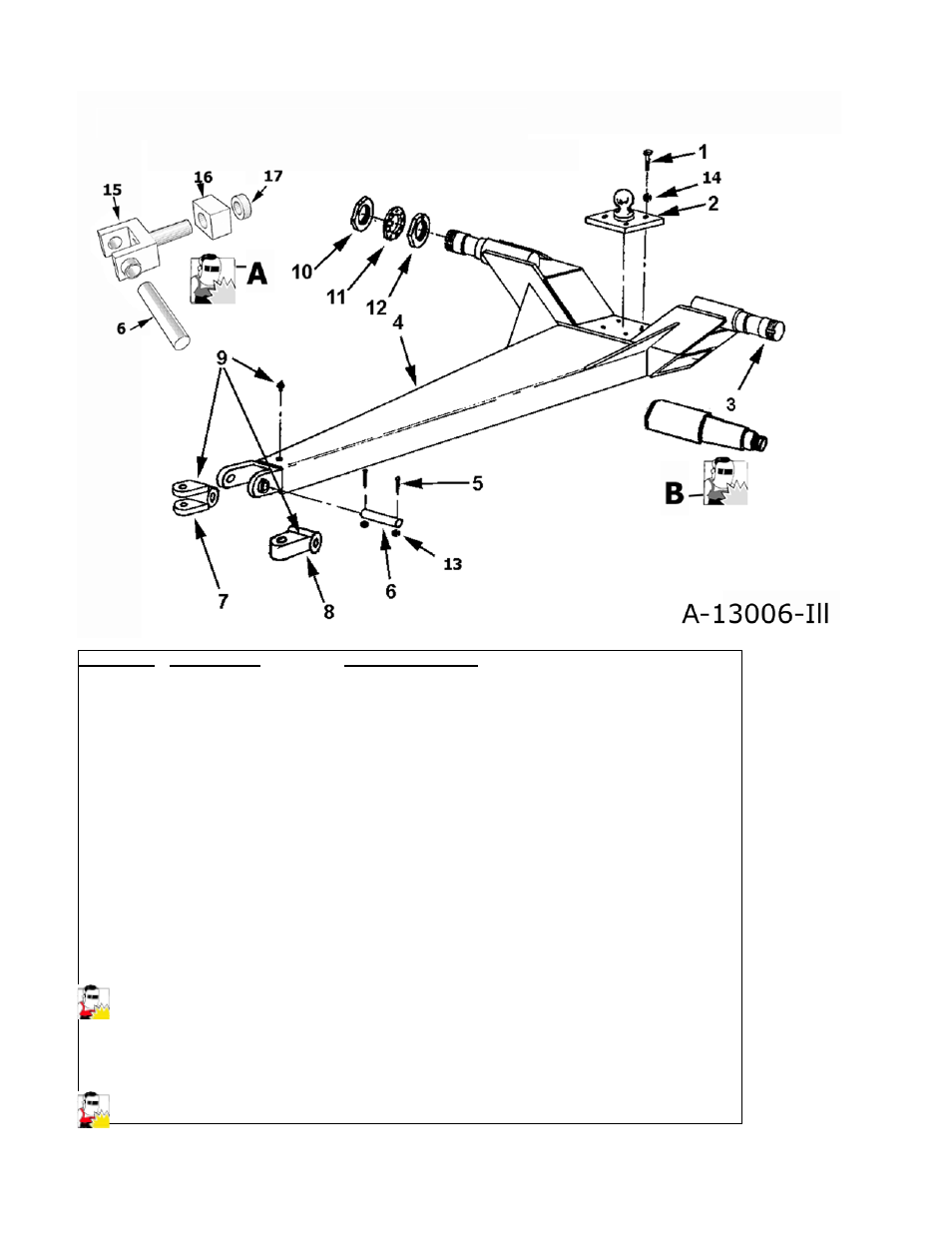

I-130 POLE AND AXLE ASSEMBLY
KEY NO. PART NO. DESCRIPTION
1 AFB-00018 Bolt,1” NC x 3” lg.
2 A14017 Ball swivel
3 A14021 Spindle (weld on)
4 A13006 Pole
5 AFB-00056 Bolt, 5/16” NC x 2-1/2”
6 A14019 Pin, 1-3/4” x 7-3/8” lg.
7 A14020 Swivel hitch, double lip (optional)
8 A14020A Swivel hitch, single lip
9 14505 Grease fitting
10 A10048 Spindle nut
11 A10049A Lock collar
12 A10172 Nut w/lock pin
13 7430 Nut, 5/16” NC
14 AFW-00006 Lockwasher, 1”
-A A082875W Yoke hitch rebuild kit - includes thrust block,
thrust collar, yoke, cross shaft (6,15, 16, 17)
15 A082875 Swivel yoke
16 A123166 Swivel block
17 A083075 Retaining Collar
-B A14021 Spindle (weld on) blank
