I-130 XL2

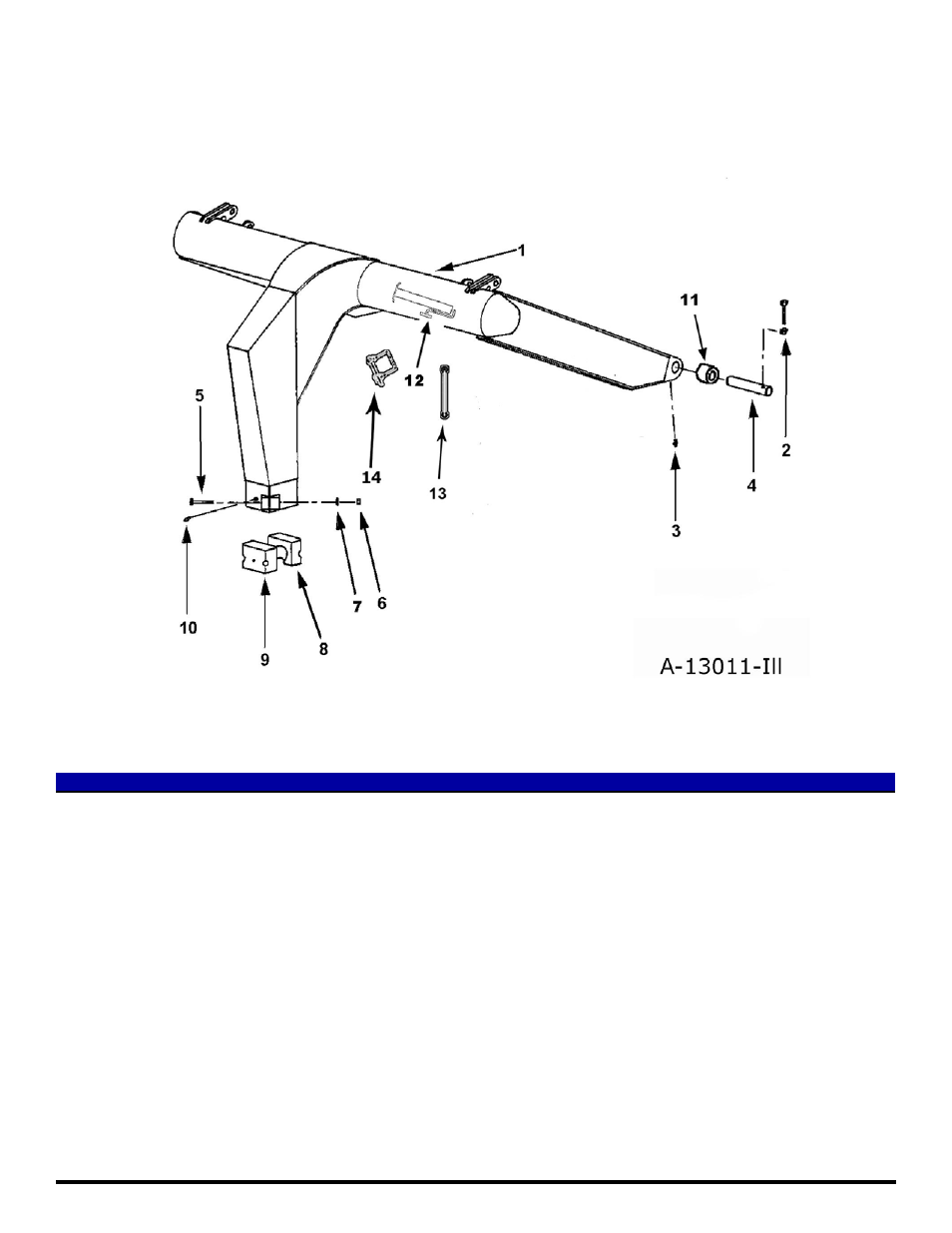

Gooseneck Frame Assembly

Key Number

Part Number

Description

1

A13011

Gooseneck frame

2

AFB-00054

"Bolt, 1/2” NC x 3-1/2” w/ 7500 nut"

3

AHF-00028

Greasefitting 90° 1/8 NPT

4

A10152A

"Pin, Frame attachment, 2” OD x 8-1/16” Long"

5

AFB-00081

Bolt, 7/8" NF X 5" NF

6

7597

Nut, 7/8" NF

7

8125

"Lockwasher, 7/8”"

8

A14002

"Cast socket half, rear"

9

A14003

"Cast socket half, front w/ zerk hole"

10

A2206

"Grease zerk, long shank"

11

A14039

"Bushing, 2.375 OD x 2.00 ID x 2” Long, grease Passage"

12

OPT-00001

Hitch jack

13

A030672-33

Dog Bone

14

A125006

Safety Snap Pin
