I-130 XL2

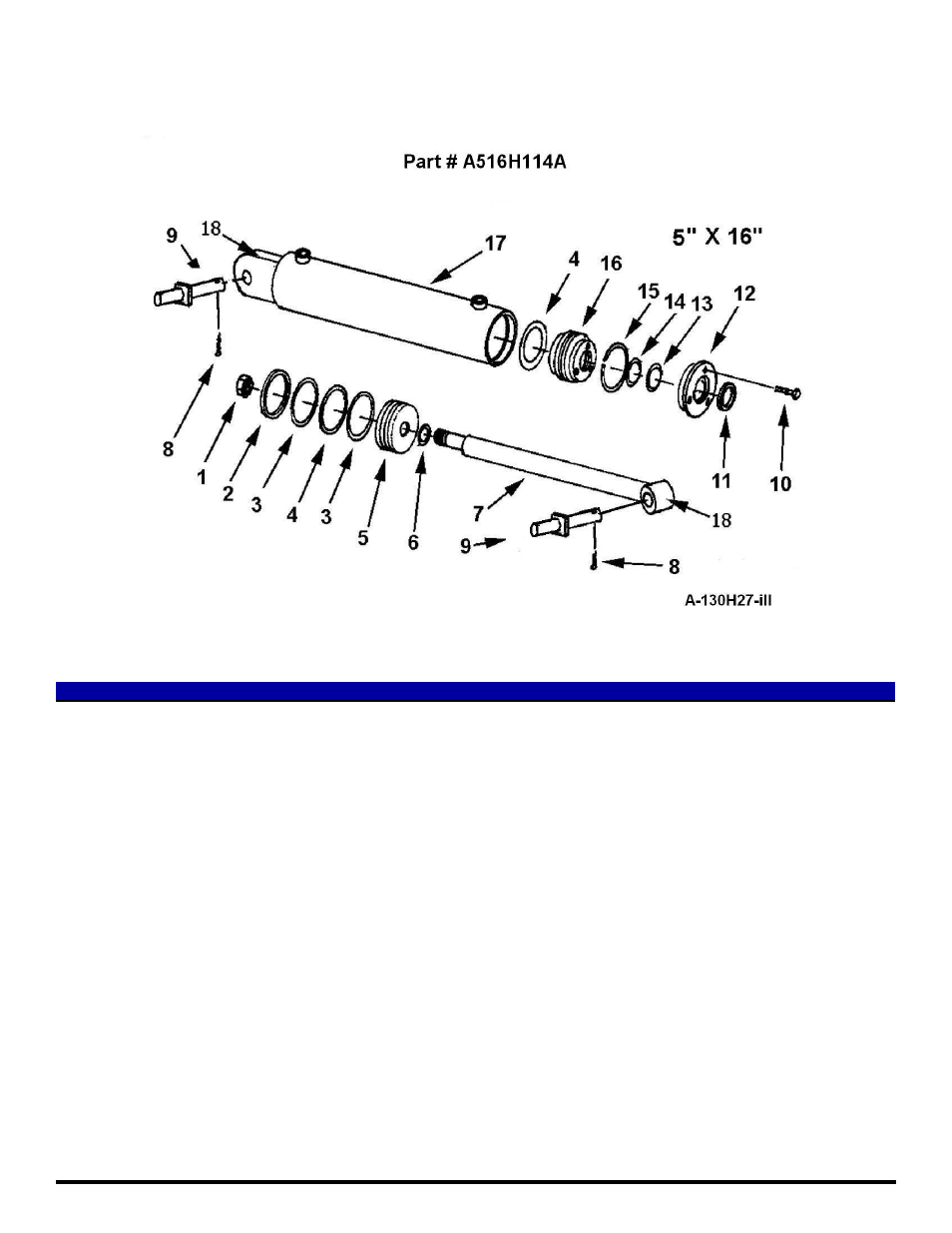

Hydraulic Cylinder Dig and Lift
Key Number Part Number Description
1 A400H17 "Lock nut, 1-1/4” NF"
2 A400H04 "Cast iron ring, 5” OD"
3 A400H05 "Backup washer, 5” OD"
4 A400H06 "O-ring, 5” OD x 1/4”"
5 A400H07 "Piston, 5” OD"
6 A60H52 "O-ring, 1-1/4” ID x 1/8”"
7 A130H28 "Shaft, 2” dia."
8 8602 "Cotter pin, 1/4” x 2”"
9 A123383 "Pin, 1-1/4” x 7”"
10 22H18A "Capscrew, 5/16” NC x 1”"
11 A400H14 Wiper seal
12 A400H13 Head cap
13 A400H12 "O-ring, 2” ID"
14 A400H12A "Backup washer, 2” ID"
15 A400H11 Retainer ring
16 A400H10 "Head gland, 5” OD"
17 A130H27 "Barrel Assembly, 5” ID"
18 14505 Grease fitting
A400H15C Packing Kit containing:
(1) A400H04, (2) A400H05, (2) A400H06, (1) A60H52, (1) A400H11,
(1) A400H14, (1) A400H12, (1) A400H12A
