I-130 XL2

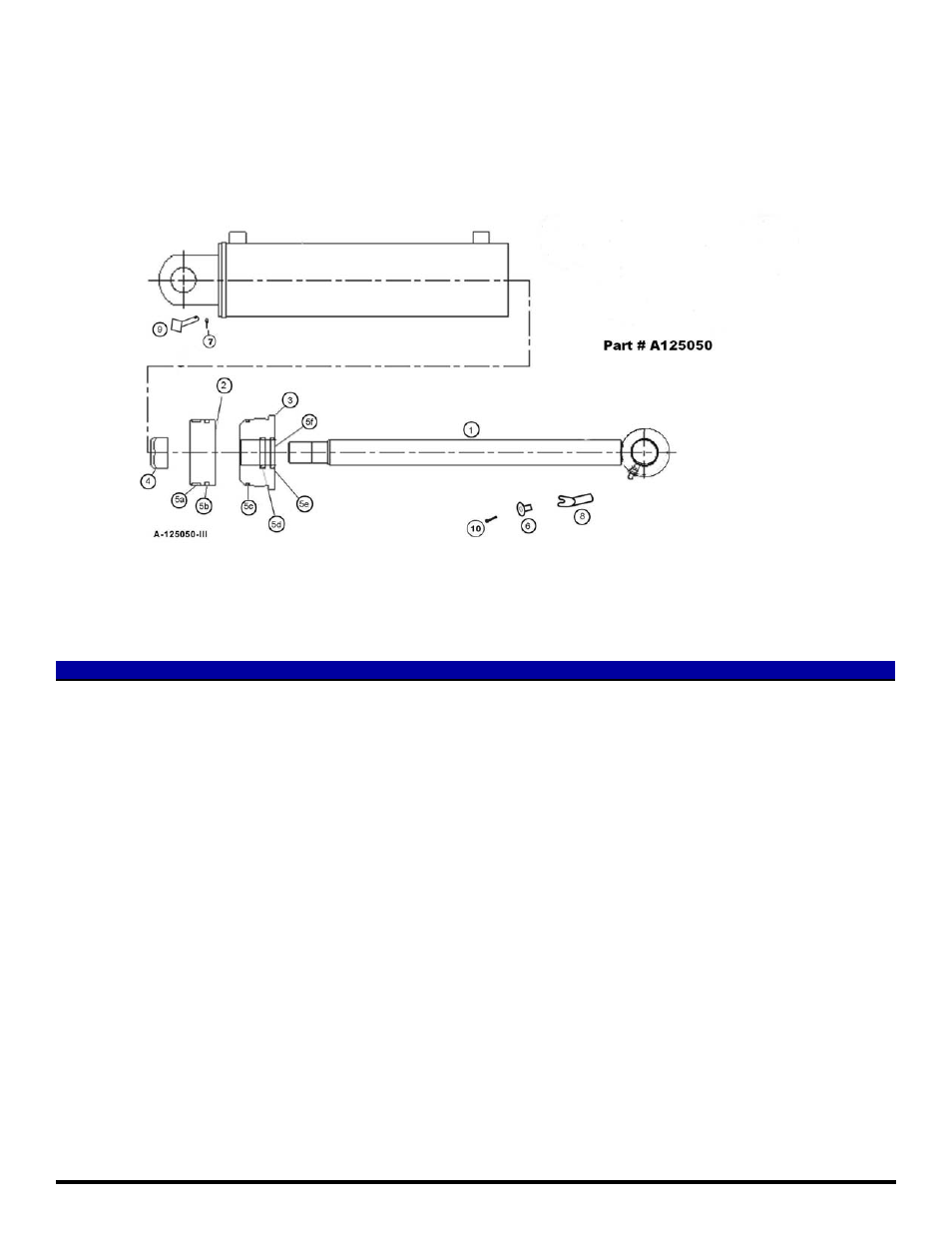

Apron Cylinder 4" x 13" Part # A125050
Key Number Part Number Description
1 A125050 Apron Cylinder 4" X 13"
2 A125050-01 Rod 1-3/4” with welded eye
3 A125050-02 Piston
4 A125050-03 "Gland, Threaded "
5 A125050-04 "Lock Nut, 1-1/8” NF"
6 A125050-05 "Seal Kit, a-f"
a A125050-05a Nylon Wear Ring
b A125050-05b FSP Seal
c A125050-05c O-Ring
d A125050-05d Backup Washer
e A125050-05e Hallite Rod Seal
f A125050-05f Snap-in Rod Wiper
7 A123351 Flange Bushing
8 8602 "Pin, Cotter1/4” x 2” Zinc"
9 A123363 Pin: 1-1/2” square head
10 A123362 Pin 1 1/2" with Slot for Pin Keeper
11 AFB-00015 1/2" X 1 1/2" Gr 8 Bolt
