I-130 XL2

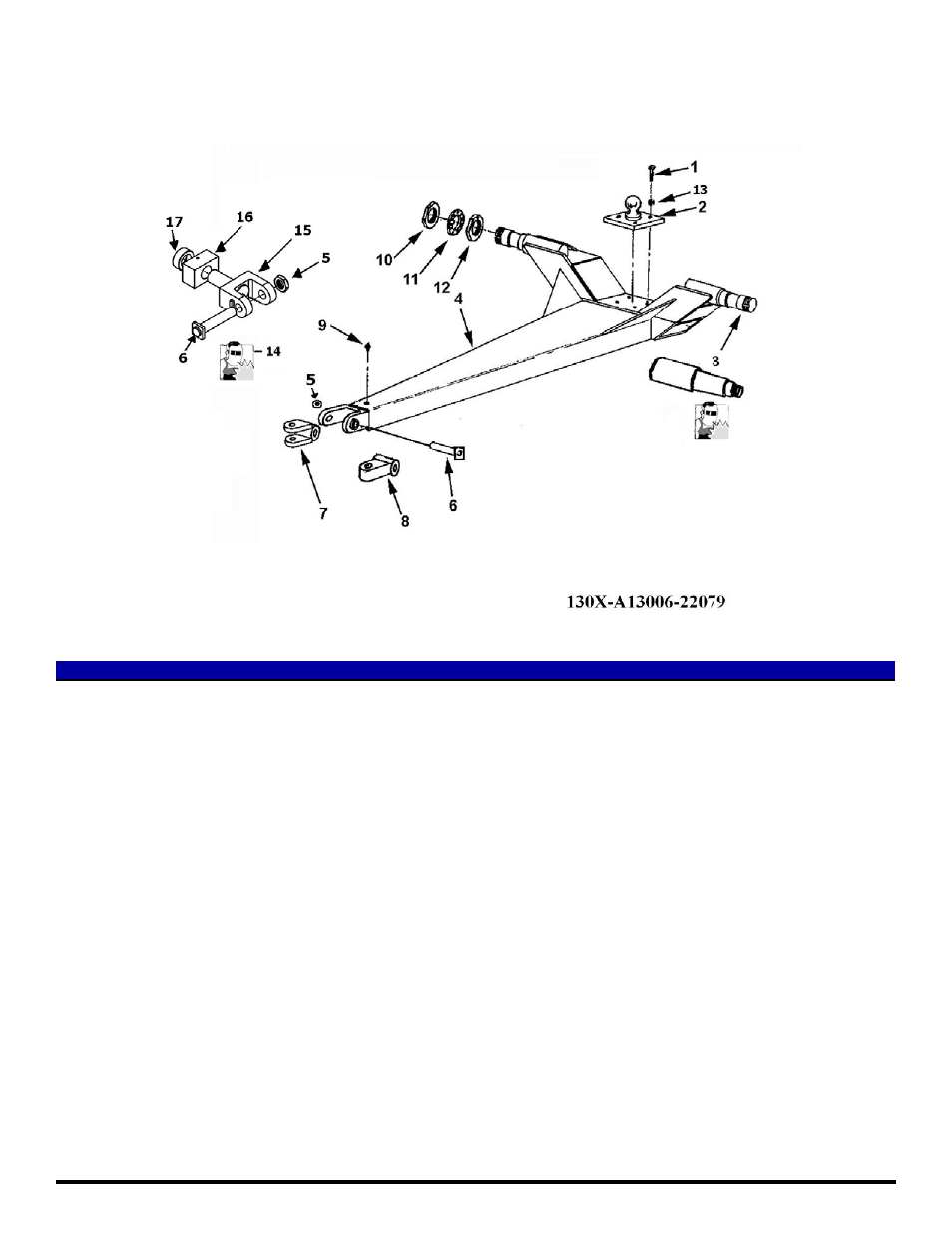

Pole & Axle Assembly
Key Number Part Number Description
1 AFB-00018 Bolt, 1" NC X 3" lg.
2 A14017 Ball Swivel
3 A14021 Spindle (weld on)
4 A13006 Pole
5 500462 Nut, Swivel Pin
6 600055 Pin, Swivel Hitch
7 A17511 Swivel hitch, douple lip (optional)
8 A17510 Swivel hitch, single lip
9 14505 Grease fitting
10 A10048 Spindle Nut
11 A10049A Lock collar
12 A10172 Nut w/lock pin
13 AFW-00006 Lockwasher, 1"
14 A123232A Yoke hitch rebuild kit: (includes block, collar, yoke, pin, nut
(5,6,15,16,17)
15 A123232-3 Swivel Yoke Assembly
16 A123232-2 Swivel Block
17 A123232-1A Retaining Collar
