Page 17

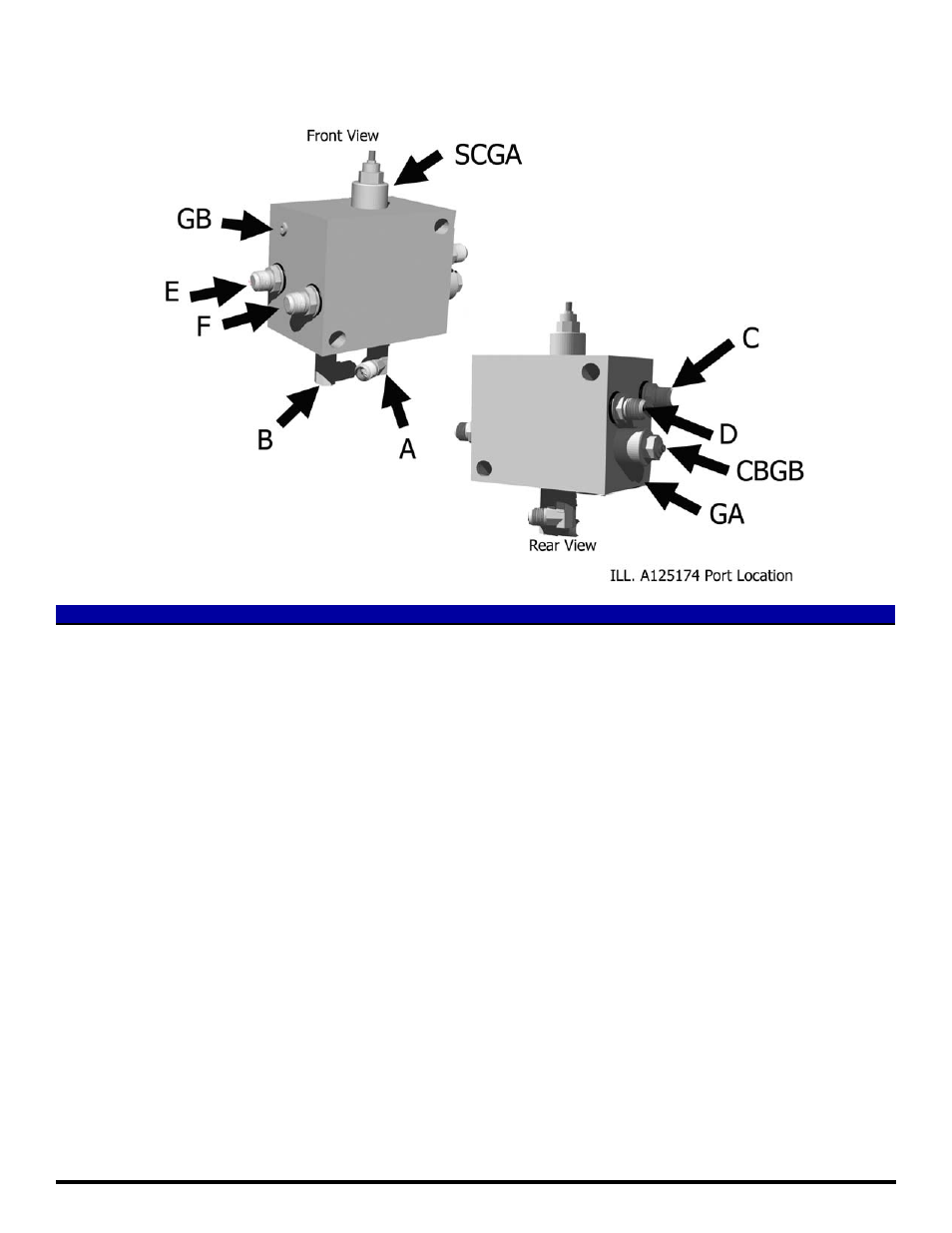

I-130 XL2
Hydraulic Valve Assembly Ports
Key Number
Description
A
Supply Line
B
Pushoff Cyl. (Rod End) - Apron Cyl., Right side (Rod End)-Supply Line
C
Pushoff Cylinder, (Base end)
D
Apron Cylinder, Right side, (Base end)
E
Apron Cylinder, Left side, (Rod end)
F
Apron Cylinder, Left side (Base end)
CBGB
Counterbalance VAlve, adjustable
SCGA
Sequence Valve, adjustable
GA
Pressure test port
GB
Pressure test port
Ashland Industries
Toll-free:877-634-4622 Fax:715-682-9717
Page #16
