I-130 XL2

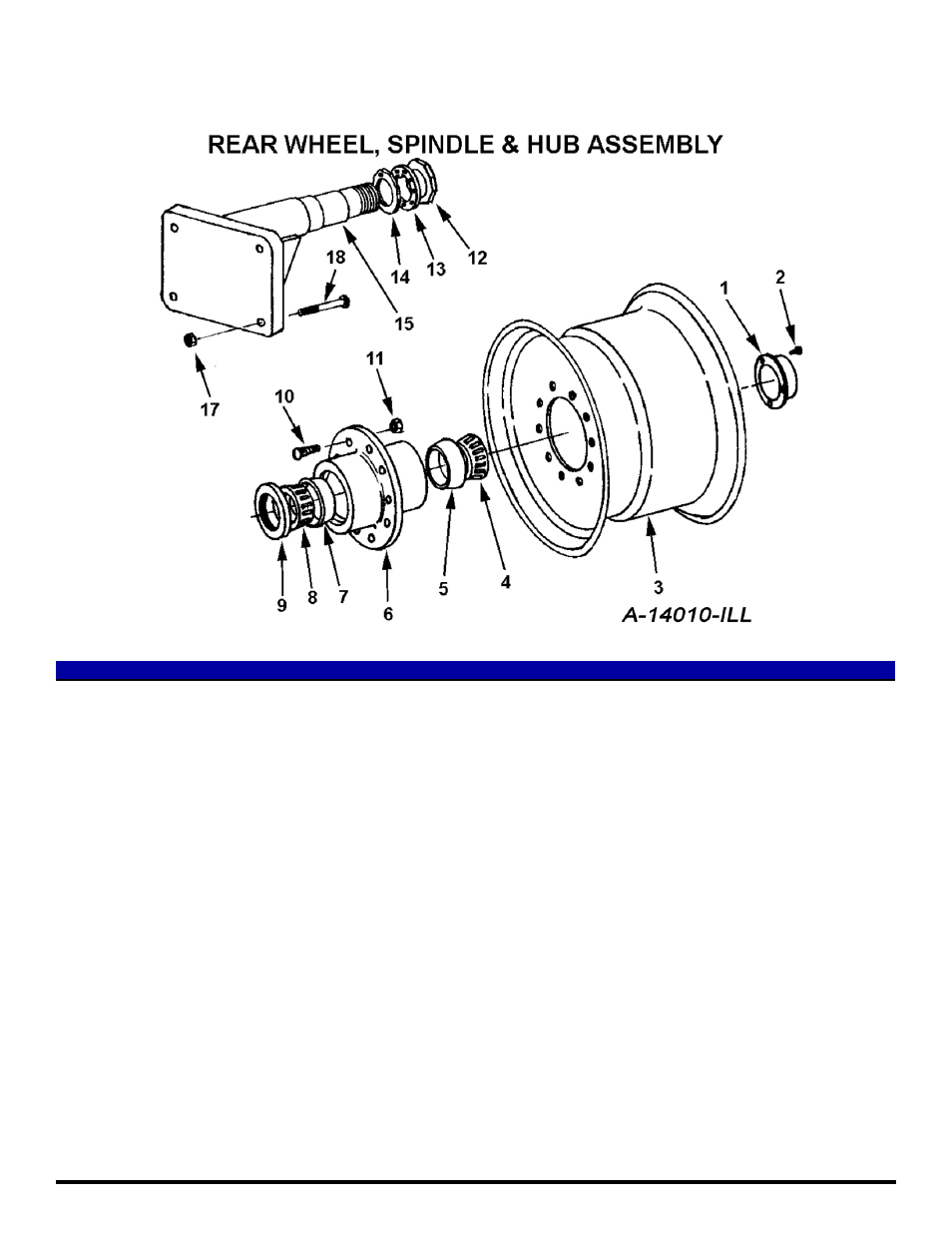

Rear Wheel Sindle & Hub Assembly
Key Number Part Number Description
01 A14004 Hub cap
02 AFB-00080 "Bolt, 5/16 NC x 1/2 lg."
03 A10039 "Wheel, 16 x 26 Drop Center"
04 A14015 Bearing cone
05 A14014 Bearing cup
06 A14010A Hub
07 A14013 Bearing cup
08 A14012 Bearing cone
09 A14011 Grease seal
10 A10176 Stud
11 A10046 Lug nut
12 A10048 Spindle nut
13 A10049A Lock collar
14 A10172 Nut w/ lock pin
15 A14037 Spindle
17 AFN-00001 "Nut, 1” NF Top Lock"
18 AFB-00017 "Bolt, 1” NF x 6-1/2” lg."
