I-900

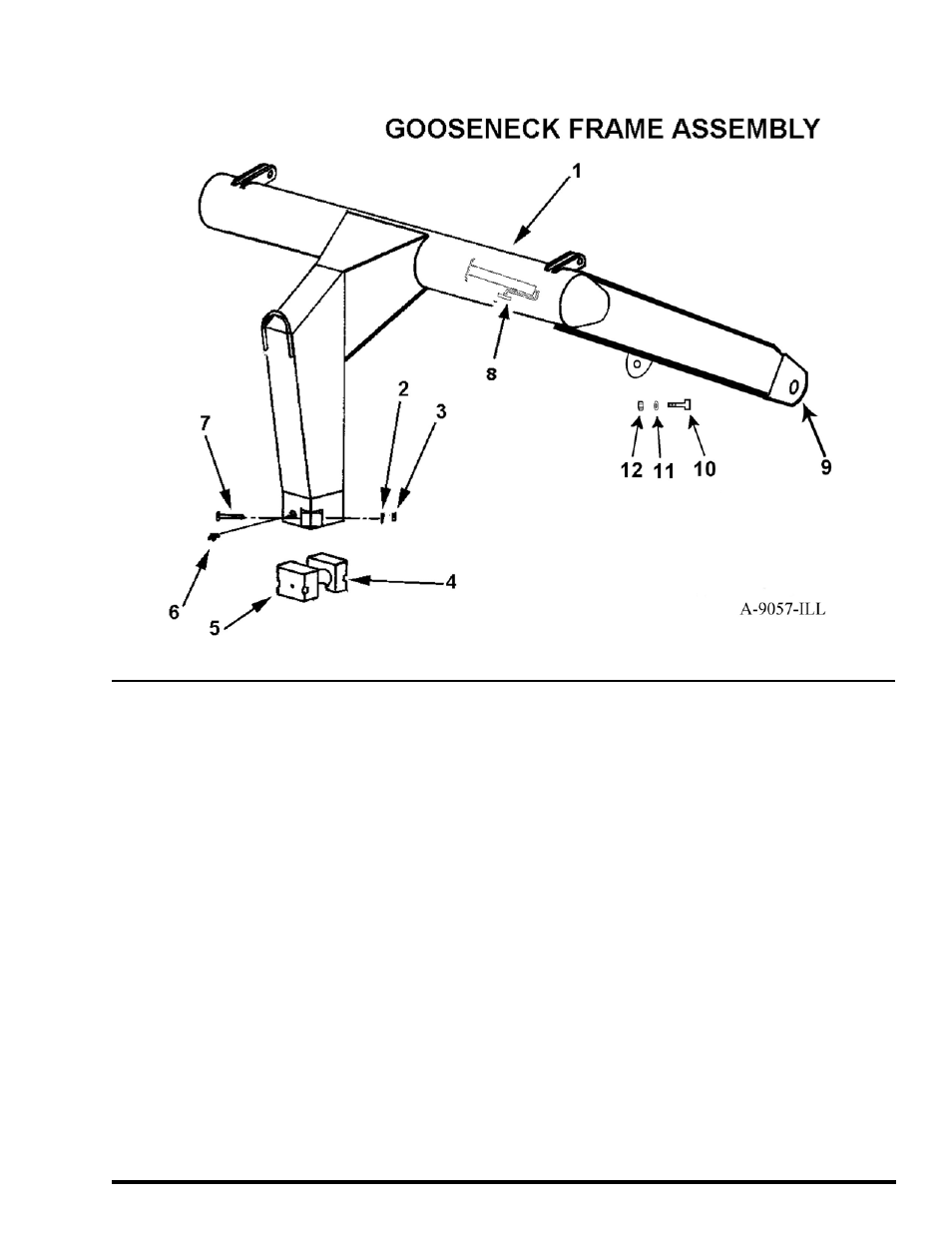

Gooseneck Assembly
Key Number Part Number Description
1 A9057 Gooseneck Frame
2 8110 Lock washer 5/8"
3 7536 Nut, 5/8" NF
4 A90004 Cast Socket half, rear
5 A90005 Cast Socket half, front with zerk hole
6 A2206 Grease Zerk, Long Shank
7 AFB-00043 Bolt, 5/8" x 4 1/2" NF
8 OPT-00001 Hitch Jack
9 AHF-00028 Grease Fitting 90° 1/8 NPT
10 AFB-00018 Bolt: 1"NC X 3" Gr 8
11 AFW-00001 Washer 1" Flat
12 AFN-00012 Nut: 1" NC Gr 8
