I-900

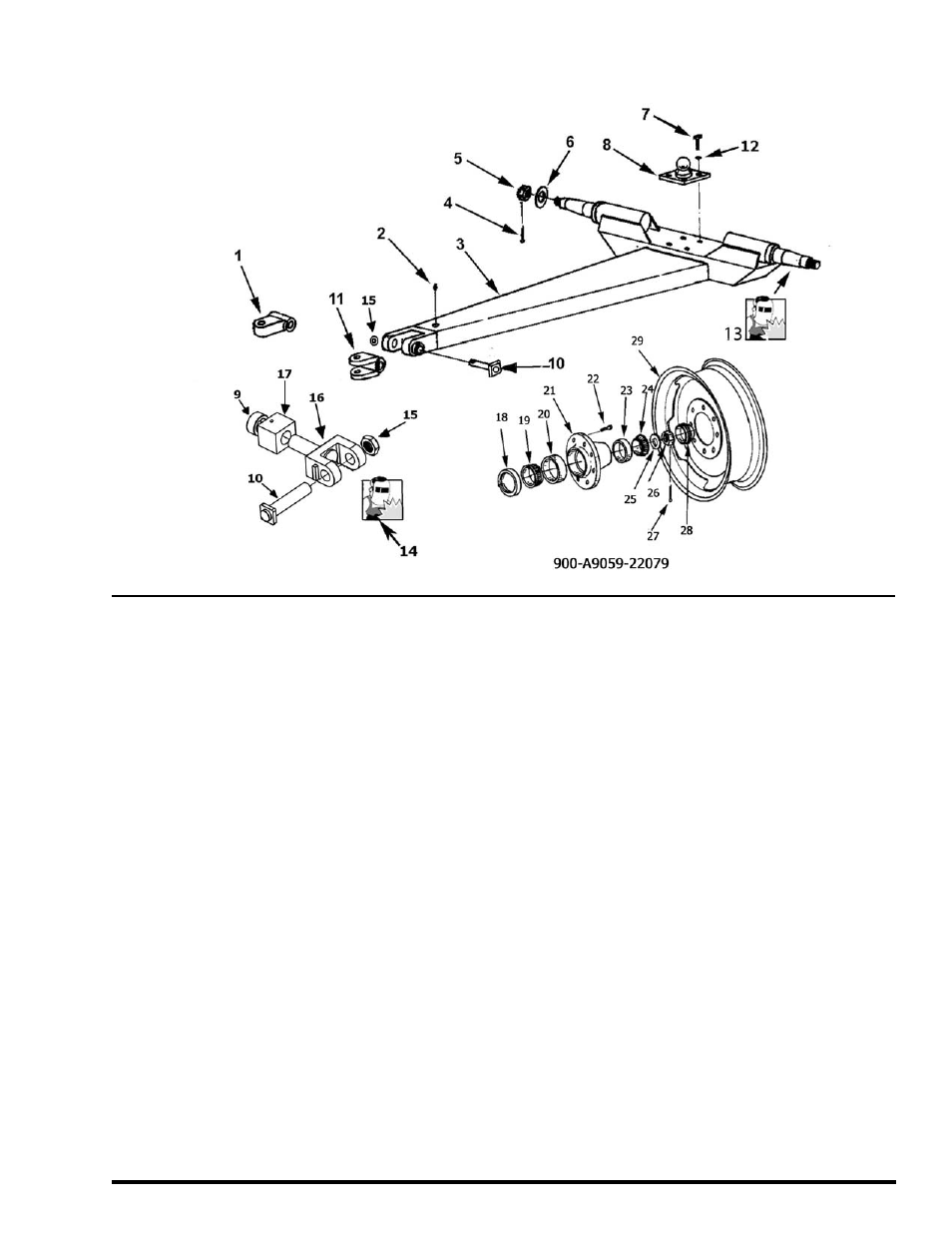

Pole & Axle Assembly
Key Number Part Number Description
1 A10033A Single Lip Hitch
2 14505 Grease Fitting, 1/8 NPT
3 A9059 Pole
4 AFP-00002 Cotter Pin, 3/16" X 1 3/4"
5 AFN-00010 Nut, castellated, 1 1/4" NF
6 A8027 Washer, special, 1 1/4" flat
7 AFB-00005 Bolt, 3/4" NC X 2 1/2" L
8 A40006 Ball Swivel
9 A030568-01 Hitch Collar
10 600053 Pin, Swivel Hitch
11 A10033 Double Lip Clevis Hitch
12 AFW-00002 Lockwasher, 3/4"
13 A9062 Weld, Spindle Blank
14 A031076W Yoke Hitch Rebuild Kit (Containing items: 9.10,15,16,17)
15 500433 Nut: Jam
16 A030168-3A Swivel Yoke Assembly
17 A030568-1 Swivel Block
18 A8020 Grease Seal (CR 35062)
19 A9061 Bearing Cone, inner
20 A8022 Bearing Cup, inner
21 A8023 Hub
22 A4519 Wheel Bolt, 9/16" NF
23 A8024 Bearing Cup, outer
24 A8025 Bearing Cone, outer
25 A8027 Spindle washer, special
26 AFN-00005 Spindle Nut
27 AFP-00002 Cotter Pin, 3/16" X 1 3/4"
28 A8026 Hub Cap
29 A6022A Wheel, 16.1 X 11" DC
Ashland Industries Toll-free:877-634-4622 Fax:715-682-9717
Page #11
