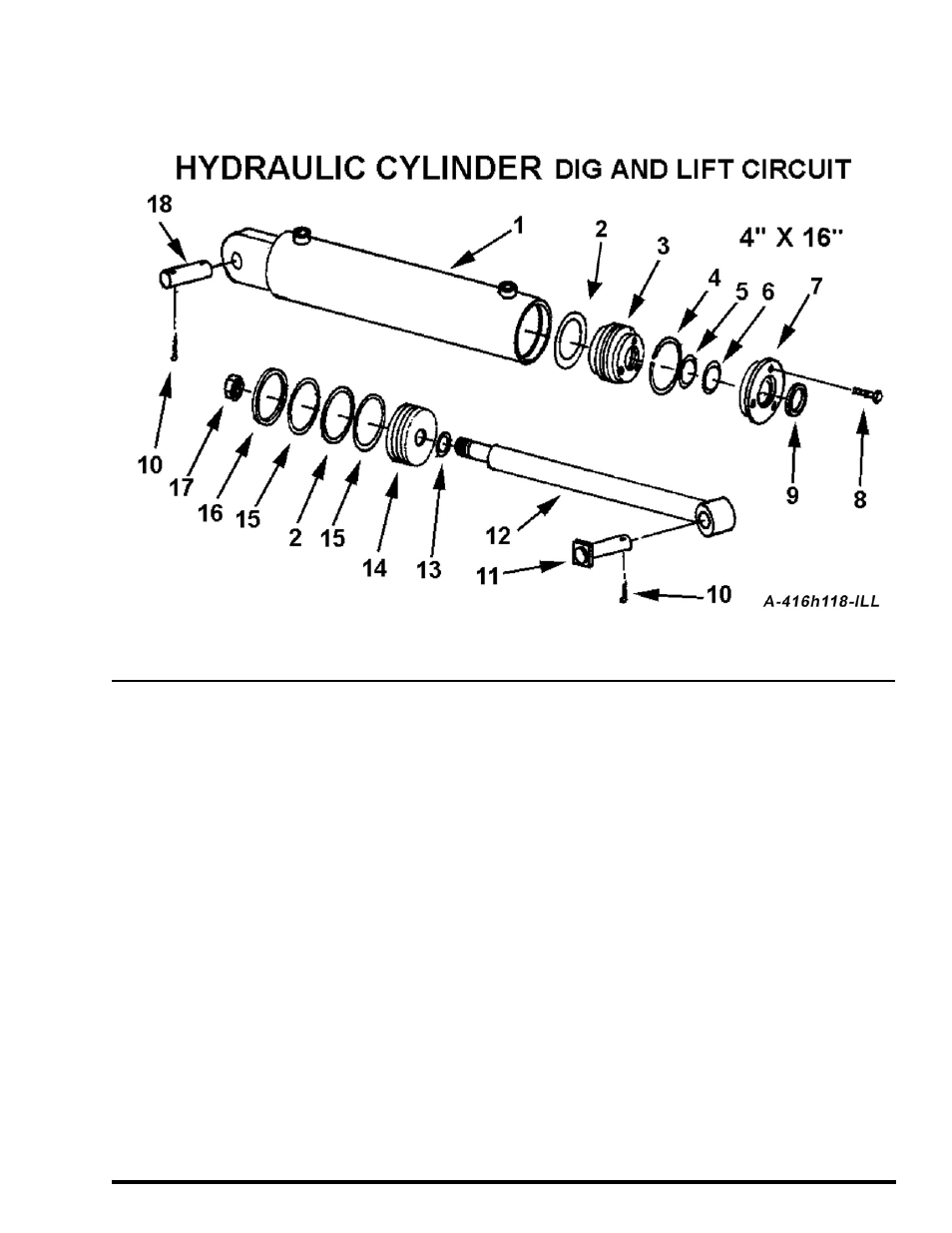

Hydraulic Cylinder Dig & Lift Circuit
Key Number Part Number Description
1 A45H04 Barrel Assembly
2 A300H06 O-ring, 4" OD x 3/16"
3 A300H11 Head Gland
4 A300H12 Retainer Ring
5 A22H15 O-ringm 1-1/2" ID x 1/8"
6 A22H15A Backup Washer
7 A300H13 Head Cap
8 A22H18 Capscrew, 1/4" x 1"
9 A22H17 Wiper Seal, 1-1/2" diameter
10 AFP-00003 Cotter Pin, 3/16" x 1-1/2"
11 A10168 Pin, 1-1/8" x 4-1/4"
12 A45H03-118 Shaft, 1-1/2" diameter
13 A45H05 Piston Gasket 1" ID
14 A300H07 Piston, 4"
15 A300H05 Cast Iron ring, 4" OD
16 A300H04 Backup Washer, 4" OD
17 A300H03 Piston Nut
18 A45003 Pin, 1-1/8" x 3-1/4"
A300H14B Packaging Kit ,containing:
1-A300H04 1-A22H15 2-A300H05 1-A22H15A 2-A300H06
1-A22H17 1-A45H05
