Ashland I-900 Ver10-2008 - Manual (Page 16)

I-900

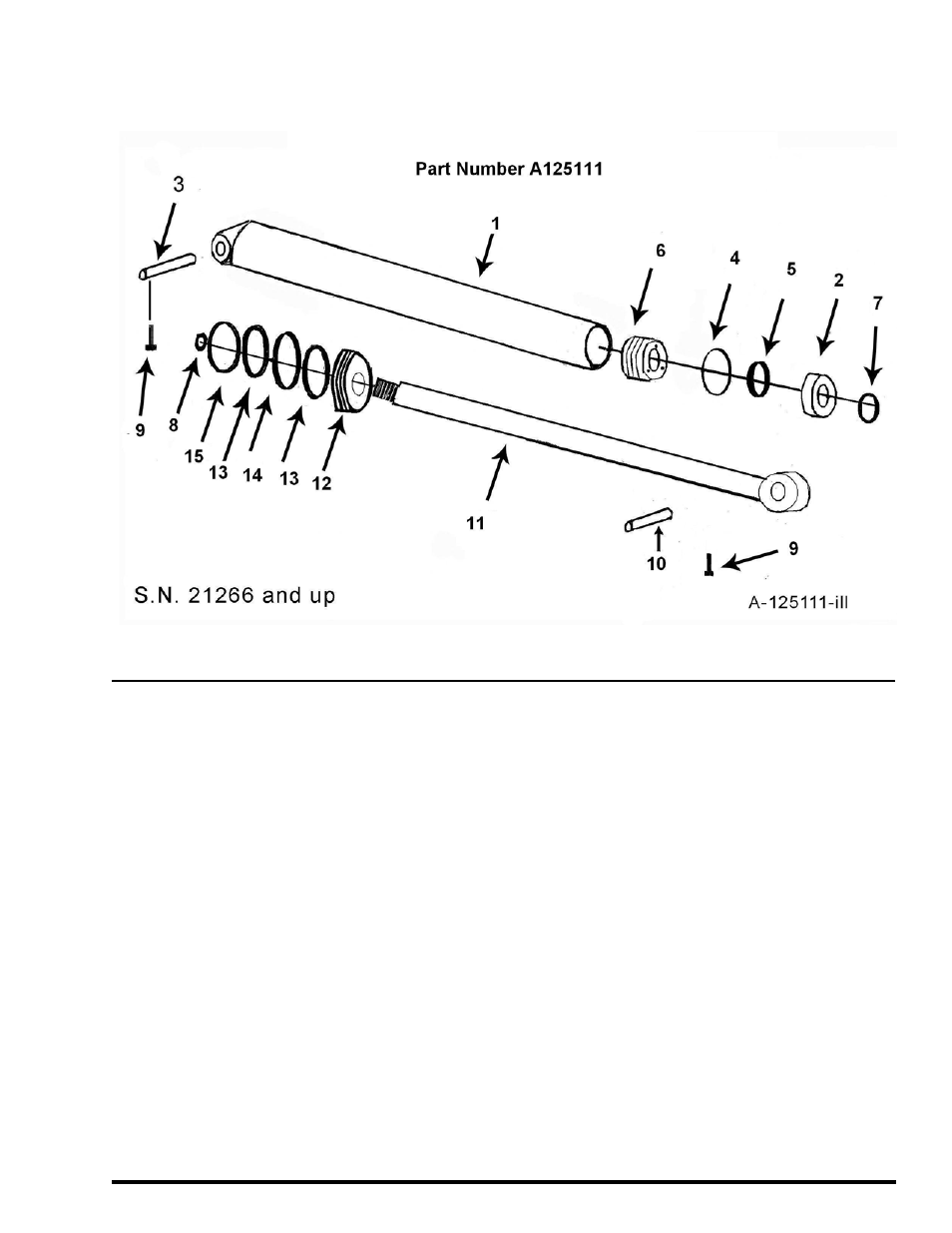

Hydraulic Cylinder, Push Gate Circuit 4" x 50"
Key Number Part Number Description
1 A123424 Barrel Assembly
2 A123426 Collar
3 A8062 Pin, 1-1/4" x 7"
4 A80H24 O-ring, 4" OD x 1/8"
5 A400H12B Seal: U-Cup
6 A123425 Head Gland
7 A80H06 Wiper Seal, 2" ID
8 A400H17 Piston Nut, 1-1/4" NF
9 8602 Cotter Pin, 1/4" x 2"
10 A8061 Pin, 1-1/4" x 4-3/4"
11 A90H26 Rod Assembly
12 A80H27 Piston
13 A300H05 Backup Washer, 4" OD
14 A300H06 O-ring, 4" OD x 3/16"
15 A300H04 Cast Iron Ring, 4" OD
A80H30 Packaging Kit containing:
1- A80H24 2-A300H05 1-A400H12 1-A300H06 1-A400H12A
1-A300H04 1-A80H06
