Brewer Element Treatment 2210 User Manual

Page 9

Text mode
Original mode

Document 101293 RevA

MODEL 2210 STEP 7

Snap Rivet

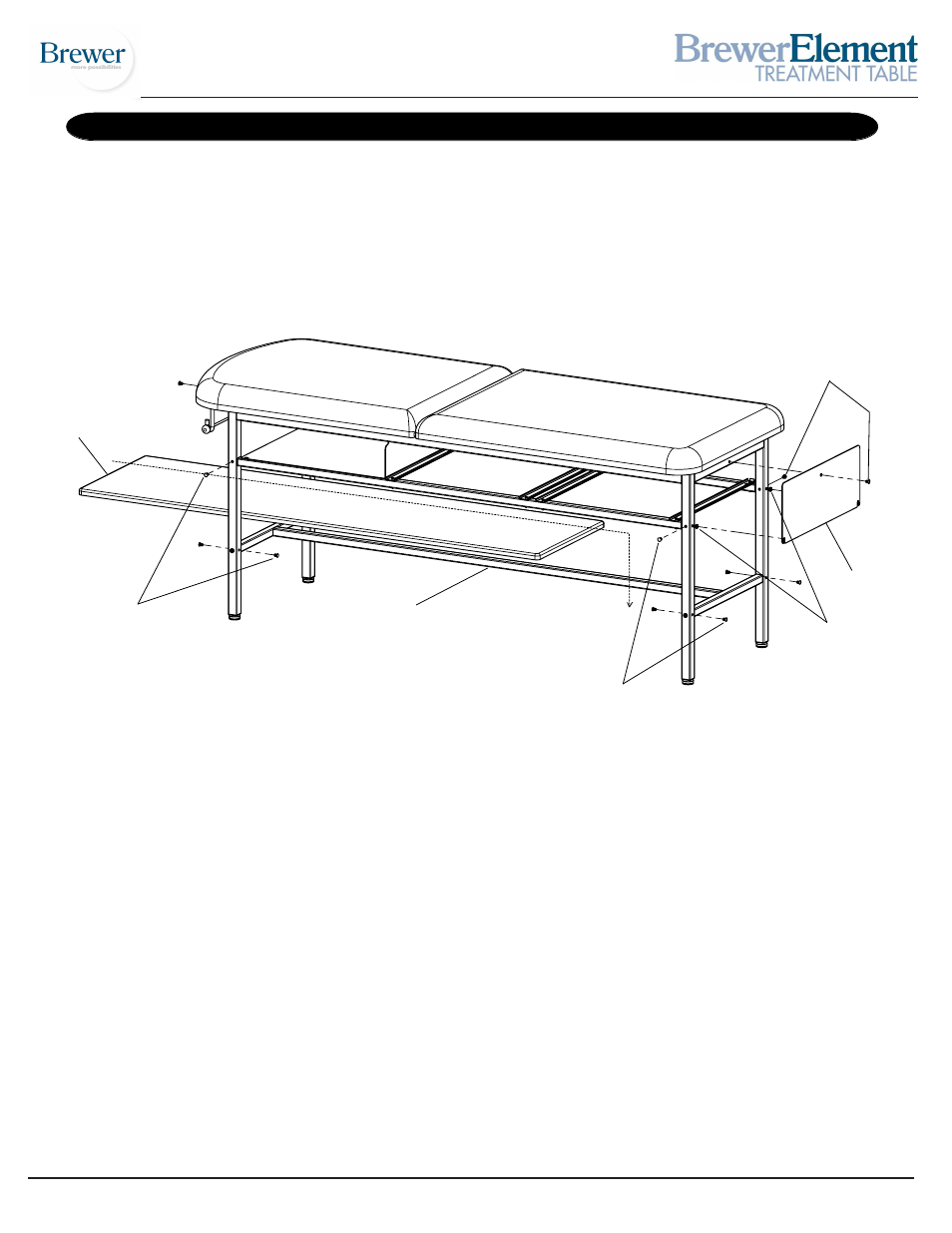

STEP A: Loosen Screws B at the foot of the table where indicated just enough to allow installation of the
Side Plate.

STEP B: Mount Side Plate so that the slots of the plate straddle the Screws B that were just loosened.

STEP C: Press the top of the Side Plate up against the frame and align the top hole of the plate with the
hole in the frame. Insert Snap Rivet into the aligned holes.

STEP D: Retighten Screws B.

STEP E: Insert the Shelf through either end of the table. Positon the Shelf so that the locating blocks, on
the bottom of the Shelf, are straddling the Lower Shelf Support.

STEP F: Install Snap Rivets into unused holes in legs and frame.

Screw B

Snap Rivet

Side Plate

Lower Shelf Support

Shelf
