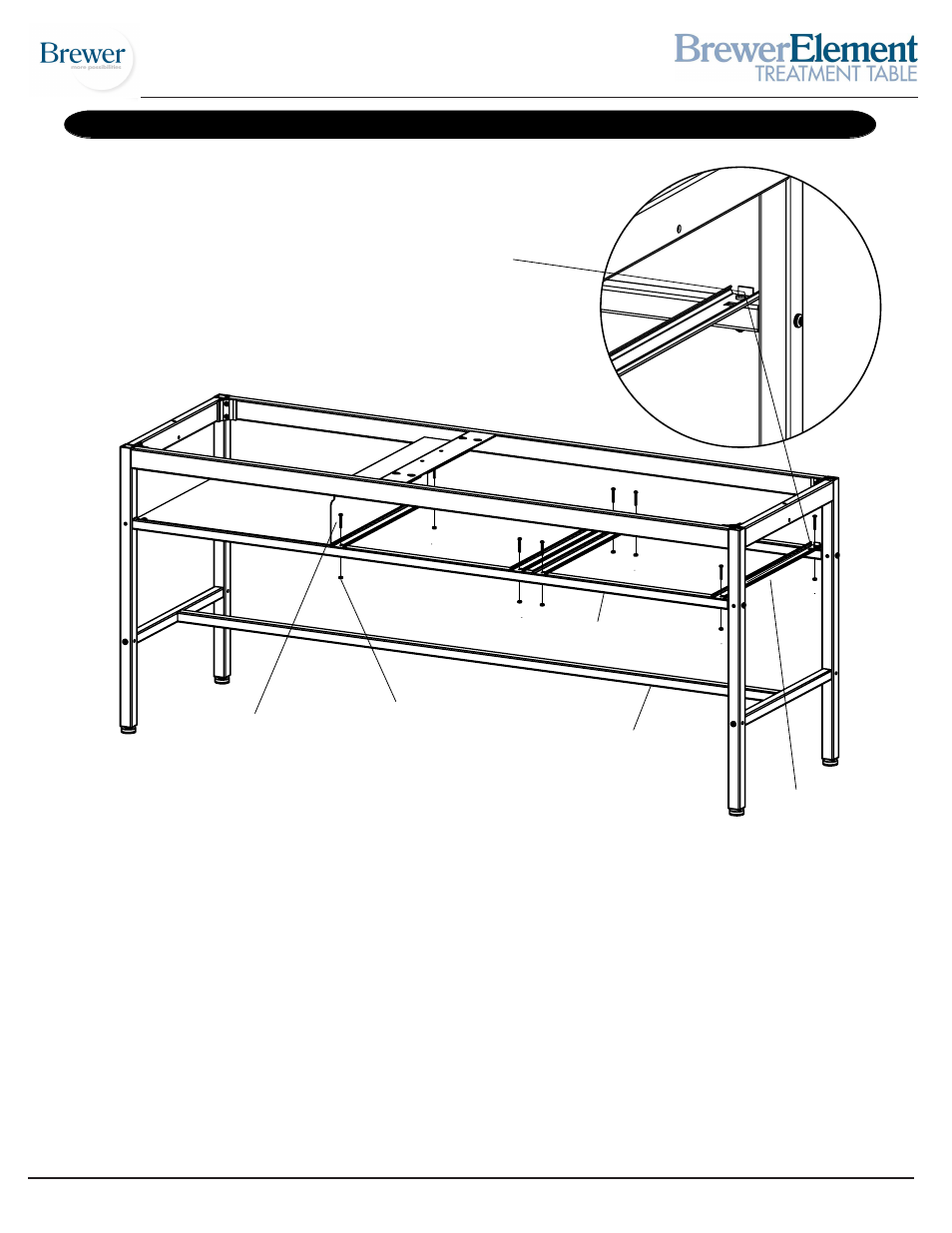

MODEL 2210 STEP 5

STEP A: The drawers can be installed so they open from the right hand side (RH Side) or the left hand side
(LH Side) of the table. The view above and the instructions below are for right hand installation.

STEP B: Position the (4) Drawer Slides on top of the Drawer Support rails. The rubber bumpers should be
on the LH Side of the table, facing upward.

STEP C: Tighten Screws E (8-32 x 1 1/4”) into Nuts K (8-32) at 8 locations.

STEP D: Tighten all screws at this time.

-Legs to Frame (8 screws using Allen Wrench provided)

-Drawer Supports to Legs (4 screws)

-Shelf Support to Legs (4 screws)

Screw E

Nut K

Shelf Support

Drawer Support

RH Side

LH Side

Drawer Slide

Detail of
Drawer Slide Bumpers
