MODEL 2210 STEP 6
Install J-Bolts onto
upholstery top
J-Bolt R
STEP B: Set upholstery top and bottom on frame, with Rounded Corners of the upholstery bottom placed at the
Foot End of the table.
STEP C: Install 2 Screws A (1/4”-20 x 3”) through frame and into upholstery.
STEP D: Install 4 Screws F (1/4”-20 x 1”) through frame and into upholstery.
STEP E: Tighten Screws.
STEP F: Slide the Dowel Rod through the paper roll and hang the Dowel Rod on the J-Bolts. Ensure a secure
fit before using the paper roll dispenser.
Screw A
Foot End
Screw A
Screw F
Dowel Rod
Rounded
Corner

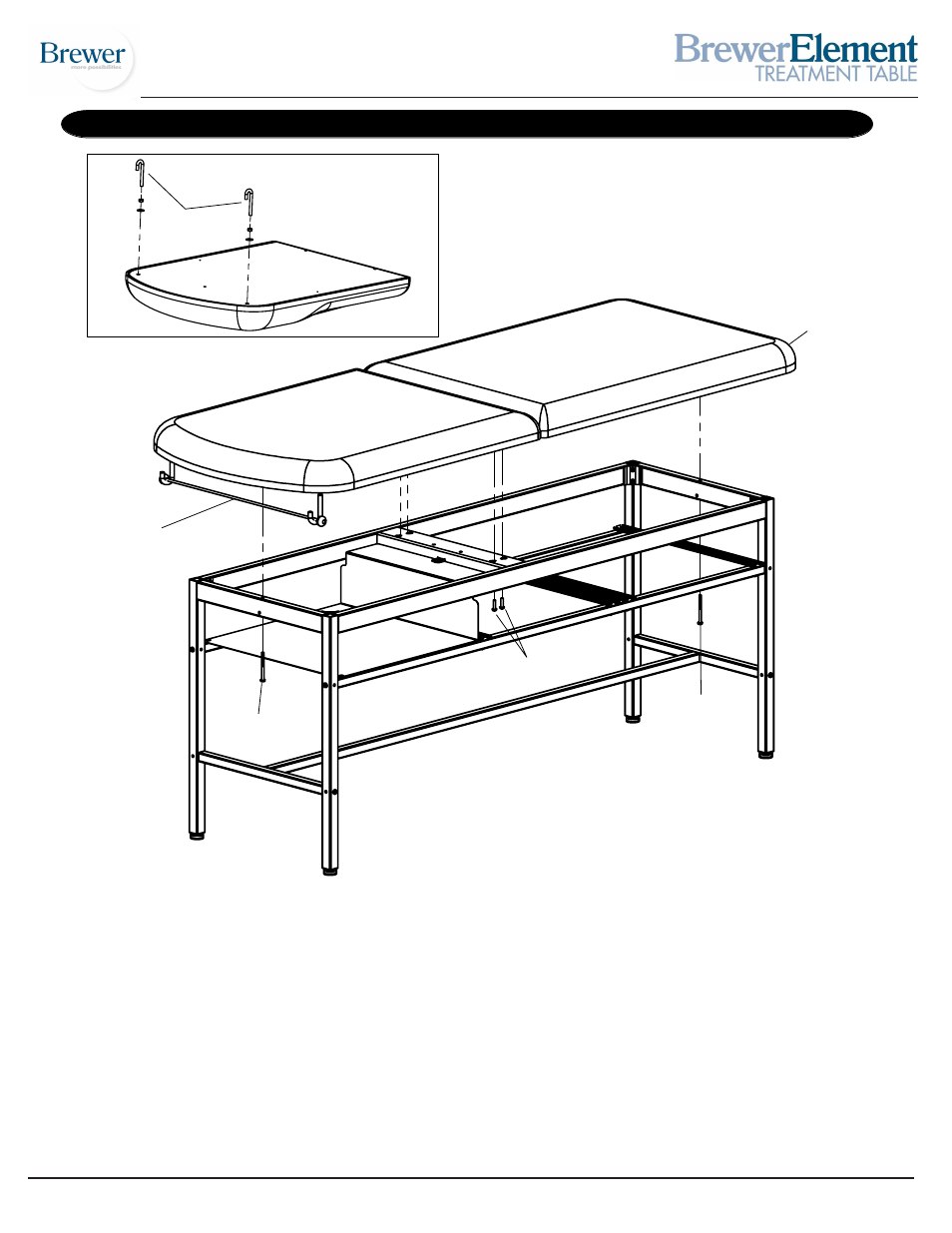

STEP A: Install J-Bolts as shown in Figure A.
Thread Nut L (3/8”) completely onto J-Bolt.
Place Washer M onto J-Bolt and thread
into Backrest as shown in Figure A.
Position J-Bolt toward head of table as
shown and tighten nut against backrest.
Figure A
