Approach Tech NVR-2018 User Manual
Page 76
74

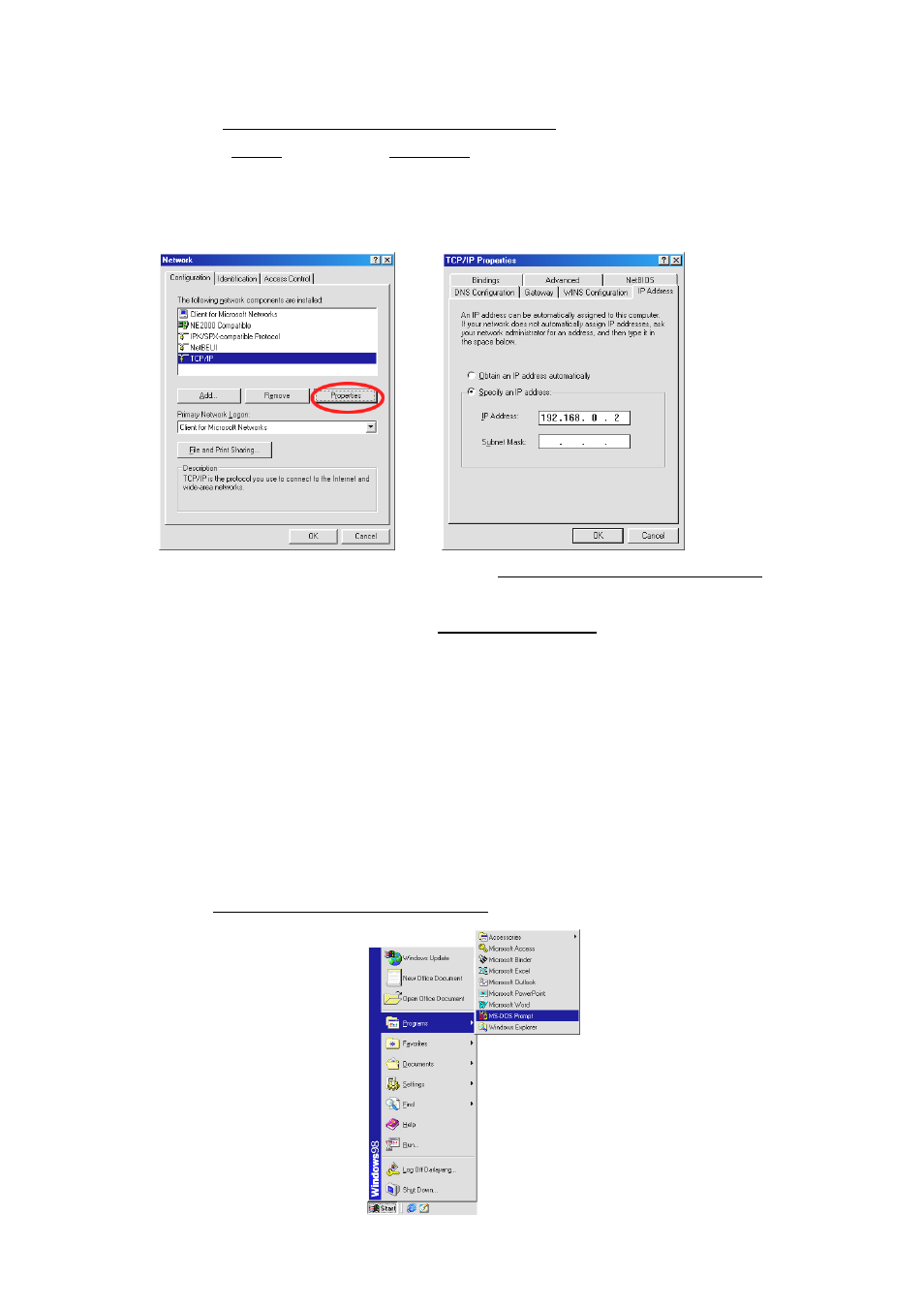

11.5 TCP/IP Configuration setting
Click
Start
Settings
Control Panel
Network
.
Select
TCP/IP
, and then click
Properties
.
Before processing the NVR installation in a WAN, please make sure the Internet
connection works properly. If not, please contact your ISP provider.
If you are using a DHCP server, please select
Obtain an IP address automatically
. Any
assigned IP address for the connected NVRs must be in the same class type as the server. If
there is no DHCP server, please select
specify an IP address
and type in the IP address of
your PC. This IP address must be different from the NVR IP but in the same class type.
NOTE: The IP address of a NVR in a network must be unique to itself as opposed to
those of the other chosen PCs, but in the same class type
11.6 Connection Testing
With the previous settings, follow the instructions below to ensure whether you have established
the connection successfully.
Click
Start
Programs
MS-DOS Prompt
