38 ASUS CUC2000-M User’s Manual
Connectors
3. H/W SETUP
3. HARDWARE SETUP

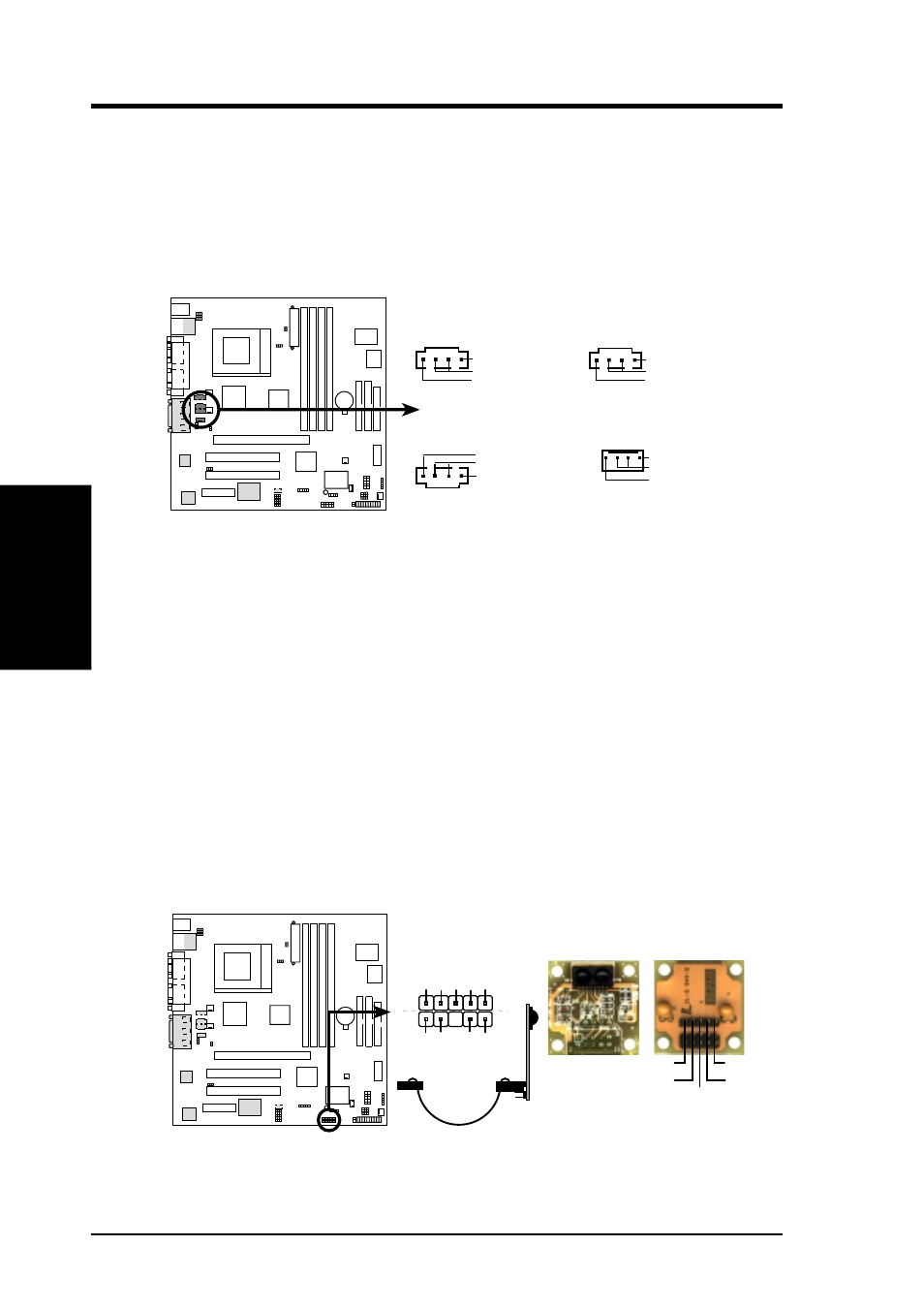

16) Internal Audio Connectors (4-pin CD_IN, AUX, VIDEO, MODEM)
These connectors allow you to receive stereo audio input from such sound sources
as a CD-ROM, TV tuner, or MPEG card. The MODEM connector allows the
onboard audio to interface with a voice modem card with a similar connector. It
also allows the sharing of mono_in (such as a phone) and mono_out (such as a
speaker) between the onboard audio and a voice modem card.
CUC2000-M
CUC2000-M Internal Audio Connectors
VIDEO (Green)
Right Audio Channel
Left Audio Channel
Ground
MODEM
Modem-Out
Ground
Modem-In
CD_IN (Black)
Right Audio Channel
Left Audio Channel
Ground
AUX (White)
Right Audio Channel
Left Audio Channel
Ground
17) Standard and Consumer Infrared Module Connector (10-pin IR)
This connector supports an optional wireless transmitting and receiving infrared
module. This module mounts to a small opening on system cases that support
this feature. You must also configure the setting through UART2 Use Infrared
(see 4.4.2 I/O Device Configuration) to select whether UART2 is directed for
use with COM2 or IrDA. Use the five pins as shown in Back View and connect
a ribbon cable from the module to the motherboard’s SIR connector according
to the pin definitions. An optional consumer infrared (CIR) set connects to the
CIR and SIR connectors simultaneously for both wireless transmitting and re-
mote control functions through one external infrared module.
CUC2000-M
CUC2000-M Infrared Module Connector
Front View Back View
+5V IRTX
IRRX
(NC) GND
SIR
+5V
IRRX IR
TX
(NC) GND
(NC) GND
CIRRX
CIR+5V
CIR
Standard Infrared (SIR)
