Installation instructions – GE ZVC42LSS User Manual
Page 20
20
Installation Instructions

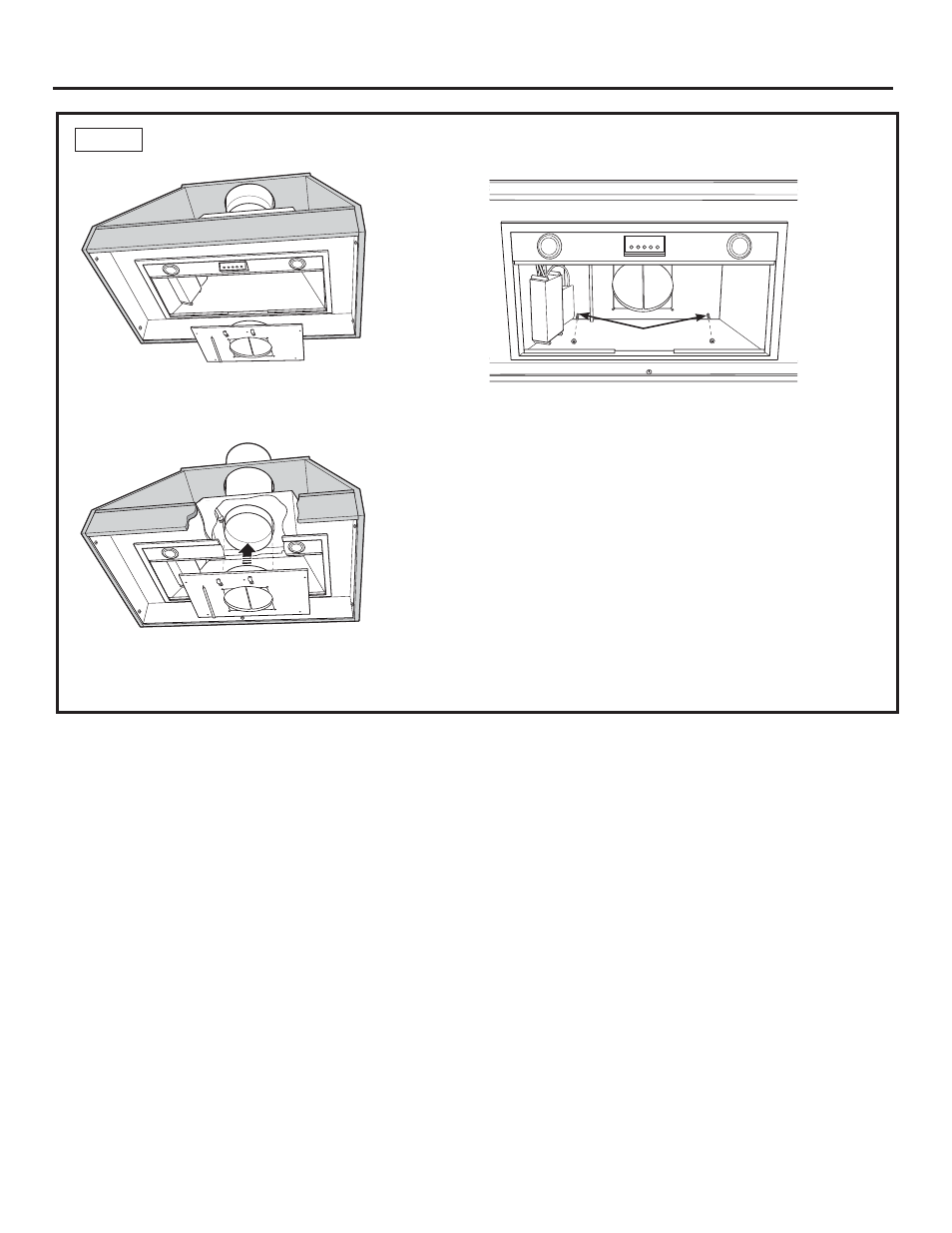

STEP 4 INSTALL DAMPER PLATE
1. Pick up damper plate assembly and rotate so that
vent side is up and bracket is located on left as you
stand facing hood.
2. Insert damper plate assembly into insert sleeve
and carefully align with 8" house duct.
3. Secure damper plate assembly by placing nuts
on bolts and tightening with socket or wrench.
Bolts
