Installation Preparation

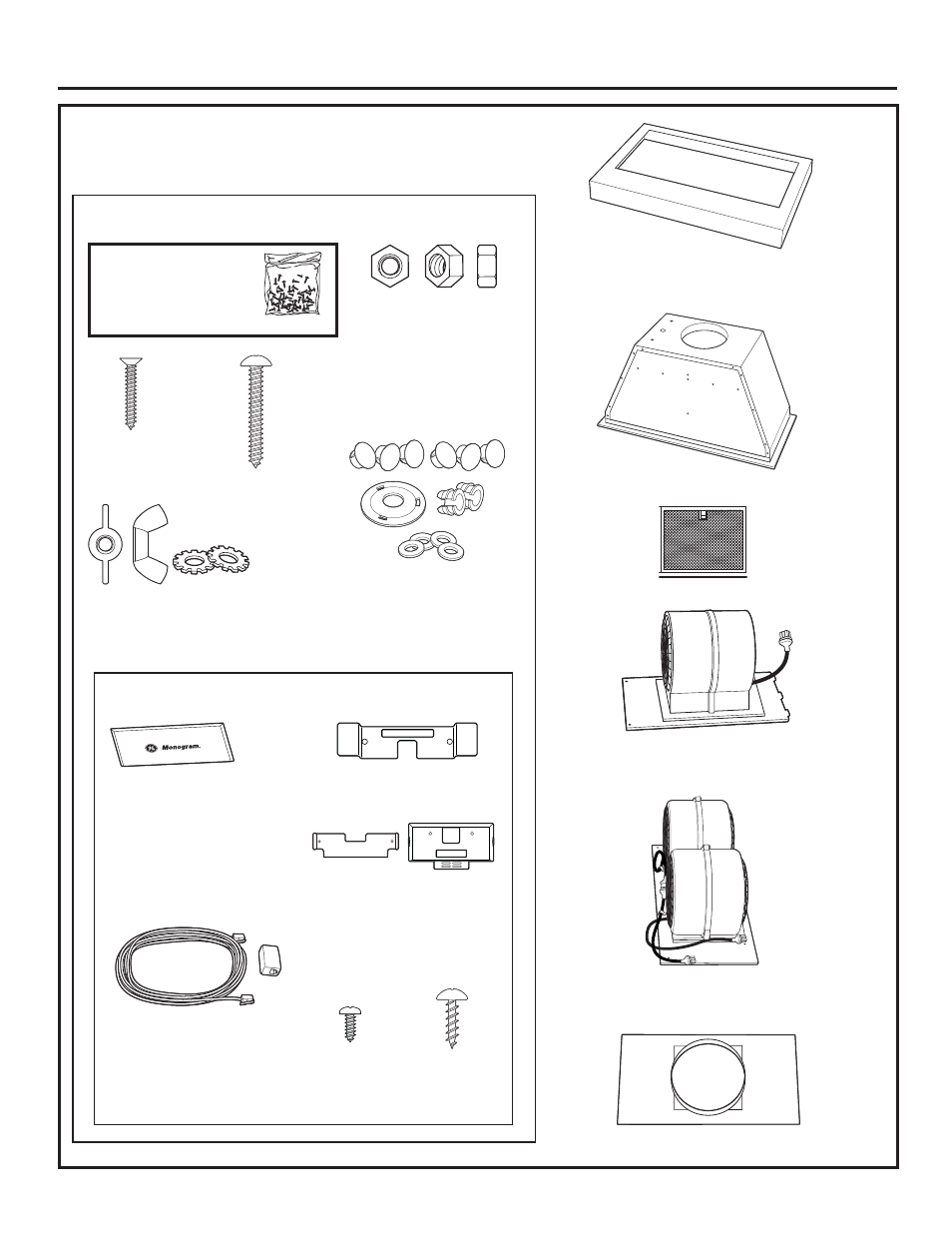

PARTS PROVIDED
Locate the parts packed with the hood.
CHECK INSTALLATION HARDWARE
Count screws/
components. Screws
shown actual size.
Hood liner (packed in
separate carton)
Blanking plate for
remote control
opening*
6 wood
screws for
hood liner
8 wood
screws
for insert
sleeve
5 nuts for damper plate
assembly (not located in
hardware bag–you must
save nuts when you
remove damper plate
from inset hood while
unpacking parts)
Blower motor
(30" and 36" Wide Models)
Insert sleeve
Filters
2 wing nuts
with lock
washers for
blower motor
* NOTE: To be used
on custom hood
when controls are
remotely mounted.
Damper plate
Control wall bracket
Control
mounting
plate
2 mounting
plate screws
30 ft. of 4-wire cord
(straight-pinned)
with connector/converter
NOTE: Not for
telecommunications
(telephone) network.
2 wall
bracket
screws
Dual blower motor
(42" and 48" Wide Models)
Control
mounting
bracket
6 insert sleeve chassis
plugs, 1 (optional) house
wire hole plug, 2 rubber
grommets, 4 insert
sleeve washers
REMOTE MOUNTING OF THE CONTROL (WIRED)
Connector/
Converter
