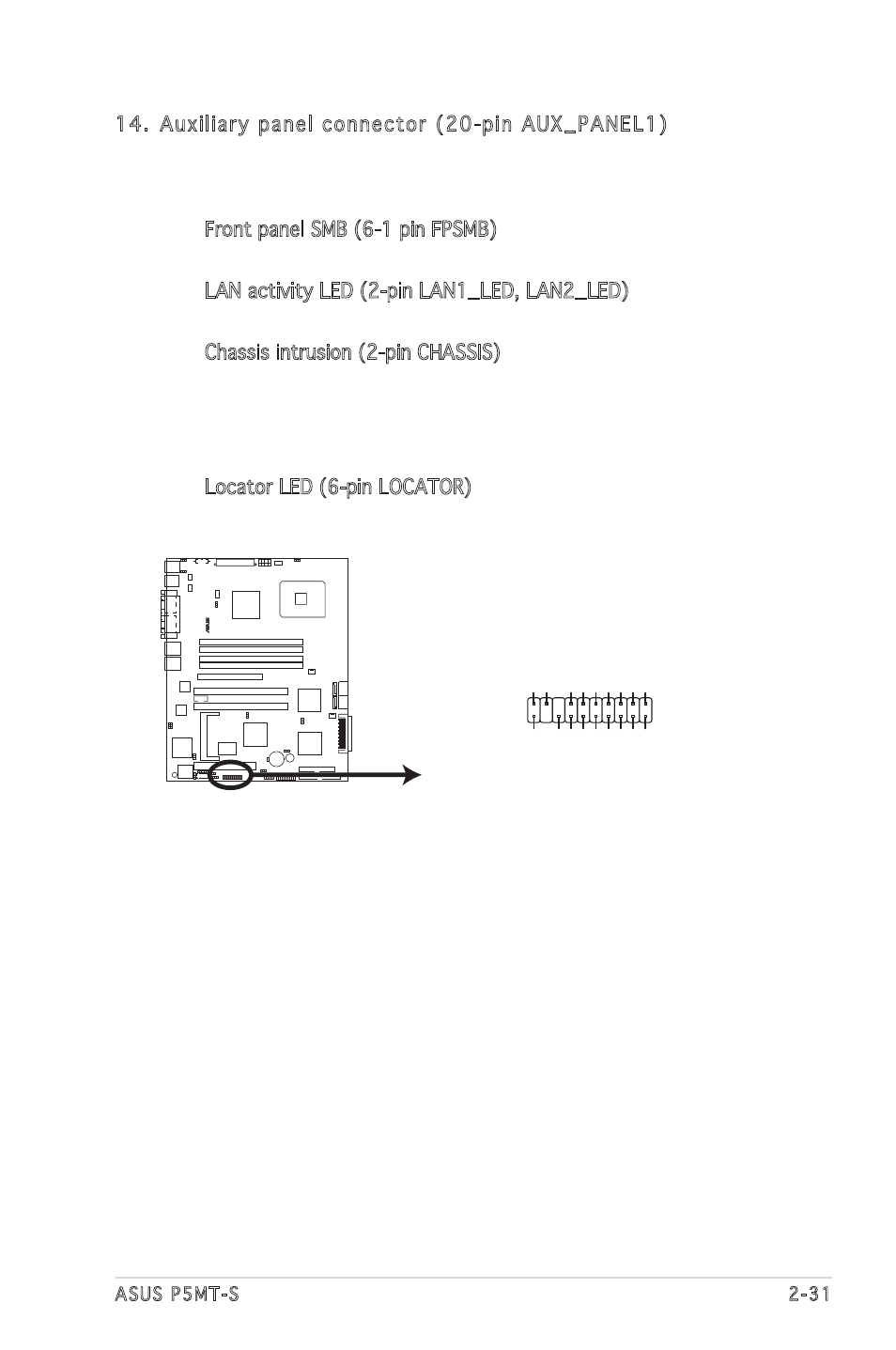

14. Auxiliary panel connector (20-pin AUX_PANEL1)
This connector is for additional front panel features including front
panel SMB, locator LED and switch, chassis intrusion, and LAN LEDs.
• Front panel SMB (6-1 pin FPSMB)
These leads connect the front panel SMBus cable.
• LAN activity LED (2-pin LAN1_LED, LAN2_LED)
These leads are for Gigabit LAN activity LEDs on the front panel.
• Chassis intrusion (2-pin CHASSIS)
These leads are for the intrusion detection feature for chassis
with intrusion sensor or microswitch. When you remove any
chassis component, the sensor triggers and sends a high-level
signal to these leads to record a chassis intrusion event.
• Locator LED (6-pin LOCATOR)
These leads are for the locator switch and LED on the front panel.
P
5
M
T
-S ®
P5MT-S Auxiliary Panel Connector
AUX_PANEL1
