ASUS P5MT-S 2-21

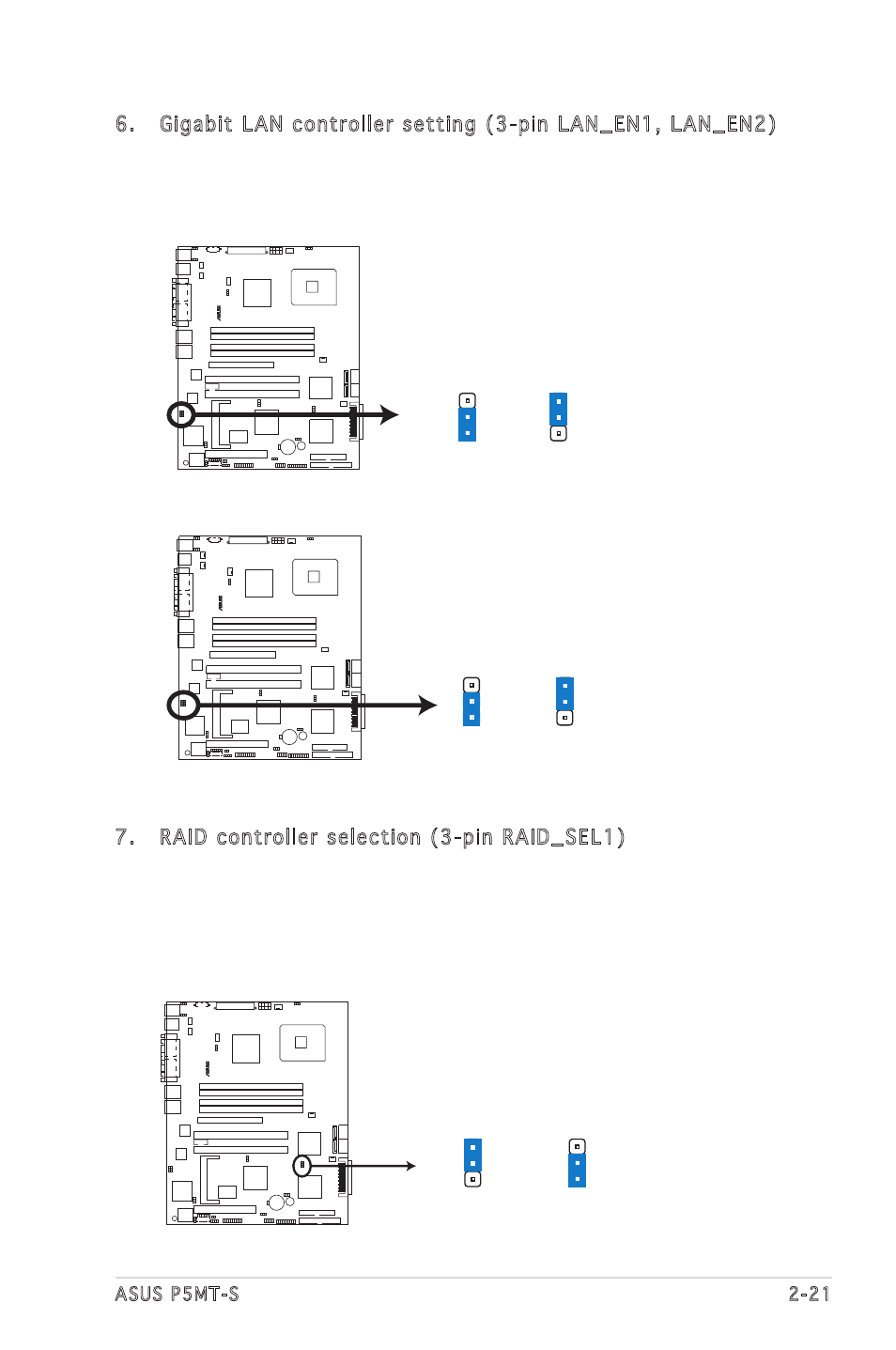

6. Gigabit LAN controller setting (3-pin LAN_EN1, LAN_EN2)
These jumpers allow you to enable or disable the onboard Broadcom ®
BCM5721 Gigabit LAN1 or LAN2 controller. Set to pins 1-2 to activate
the Gigabit LAN controller.
7. RAID controller selection (3-pin RAID_SEL1)
This jumper allows you to select the RAID configuration utility to use when
you create disk arrays. Place the jumper caps over pins 1-2 if you want
to use the LSI Logic Embedded SATA RAID Setup Utility (default);
otherwise, place the jumper caps to pins 2-3 to use the Intel ® Matrix
Storage Manager.
P
5
M
T
-S ®
P5MT-S LAN1 Controller Setting
Enable
(Default)
Disable
LAN_EN1
2
1
2
3
P5MT-S LAN2 Controller Setting
Enable
(Default)
Disable
LAN_EN2
2
1
2
3
P
5 M
T
-S ®
P
5
M
T
-S ®
RAID_SEL1
LSI RAID ROM
(Default)
INTEL RAID ROM
2
1
2
3
P5MT-S RAID Controller Selection
