Installation Instructions

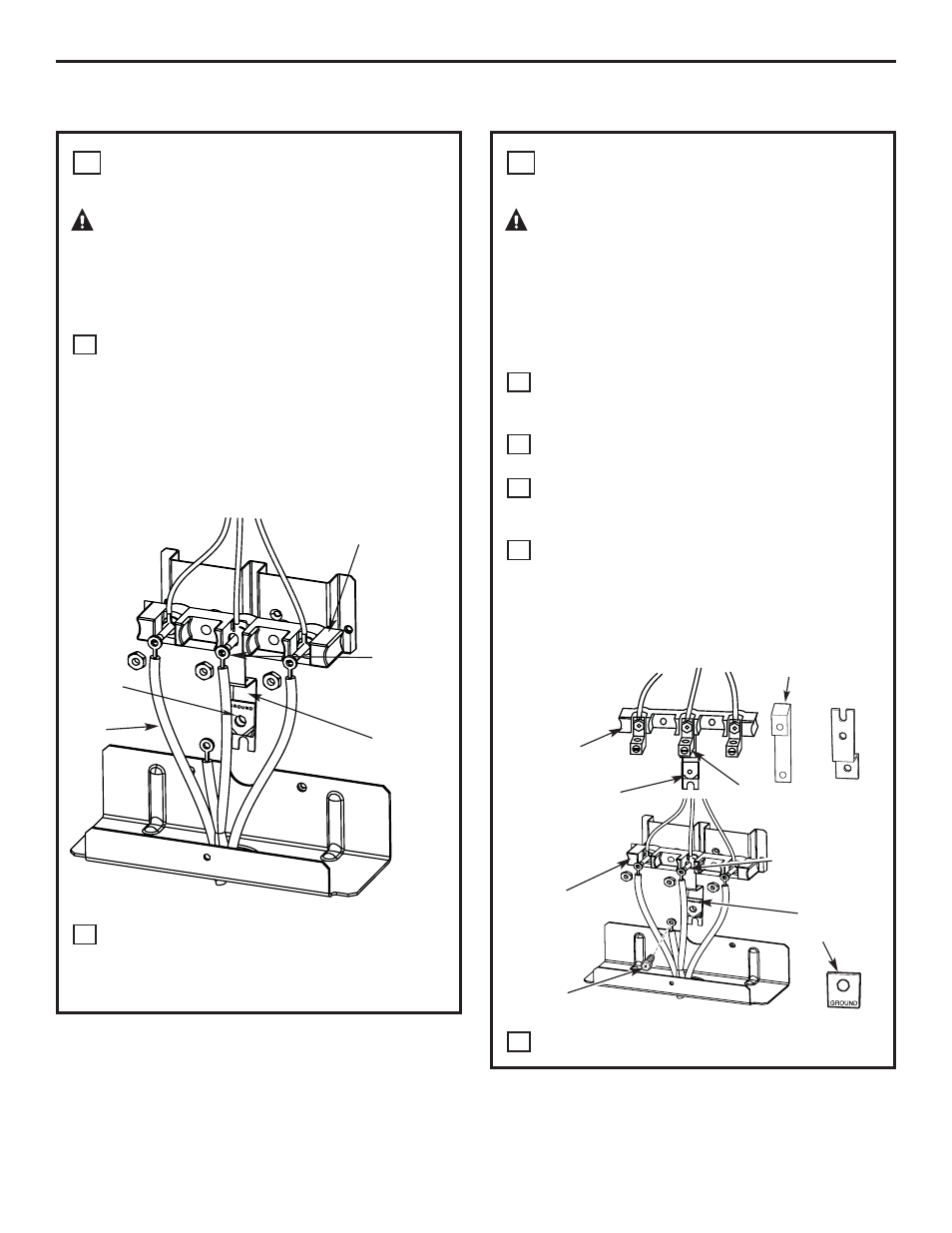

5 4-WIRE POWER CORD
INSTALLATION
WARNING:
The neutral wire of the
supply circuit must be connected to the neutral
terminal located in the center of the terminal
block. The power leads must be connected to the
left and the right terminals of the terminal block.
The 4th grounding lead must be connected to the
frame of the range with the ground plate and the
ground screw.
A Remove the 3 lower terminal nuts from the
terminal block. Remove the ground screw and
ground plate and retain them.
B Cut and discard the ground strap. DO NOT
DISCARD ANY SCREWS.
C Insert the one ground screw into the power cord
ground wire terminal ring, through the ground
plate and into the frame of the range.
D Insert the 3 terminal screws (removed earlier)
through each power cord terminal ring and into the
lower terminals of the terminal block. Be certain that
the center wire (white/neutral) is connected to the
center lower position of the terminal block. Tighten
screws securely into the terminal block.
E Skip to Step 8 and proceed with the installation.
4 3-WIRE POWER CORD
INSTALLATION
WARNING:
The neutral or ground wire
of the power cord must be connected to the
neutral terminal located in the center of the
terminal block. The power leads must be
connected to the left and the right terminals of
the terminal block.
A Remove the 3 lower terminal screws from the
terminal block. Insert the 3 power cord
terminal rings into each one of the terminals of
the terminal block. Be certain that the center
wire (white/neutral) is connected to the center
of the terminal block. Tighten nuts securely
into the terminal block.
DO NOT remove the ground strap
connection.
B Skip to Step 8 and proceed with the
installation.
Ground
strap
Terminal block
(appearance
may vary)
Neutral
terminal
Power
cord
Ground
plate
GROUND
Before
After
Terminal
block
Terminal
block
Neutral
terminal
Neutral terminal
Ground strap
Ground
plate
(grounding
to range)
Ground
screw
Ground strap
or
