Hardware options installation 43
1. Power down the server (on page 17 ).
2. Unlock the bezel (on page 18 ).
3. Remove the access panel (on page 19 ).
4. Remove the expansion slot cover that corresponds to the parallel and serial connector (" Removing
the expansion slot cover " on page 39 ).

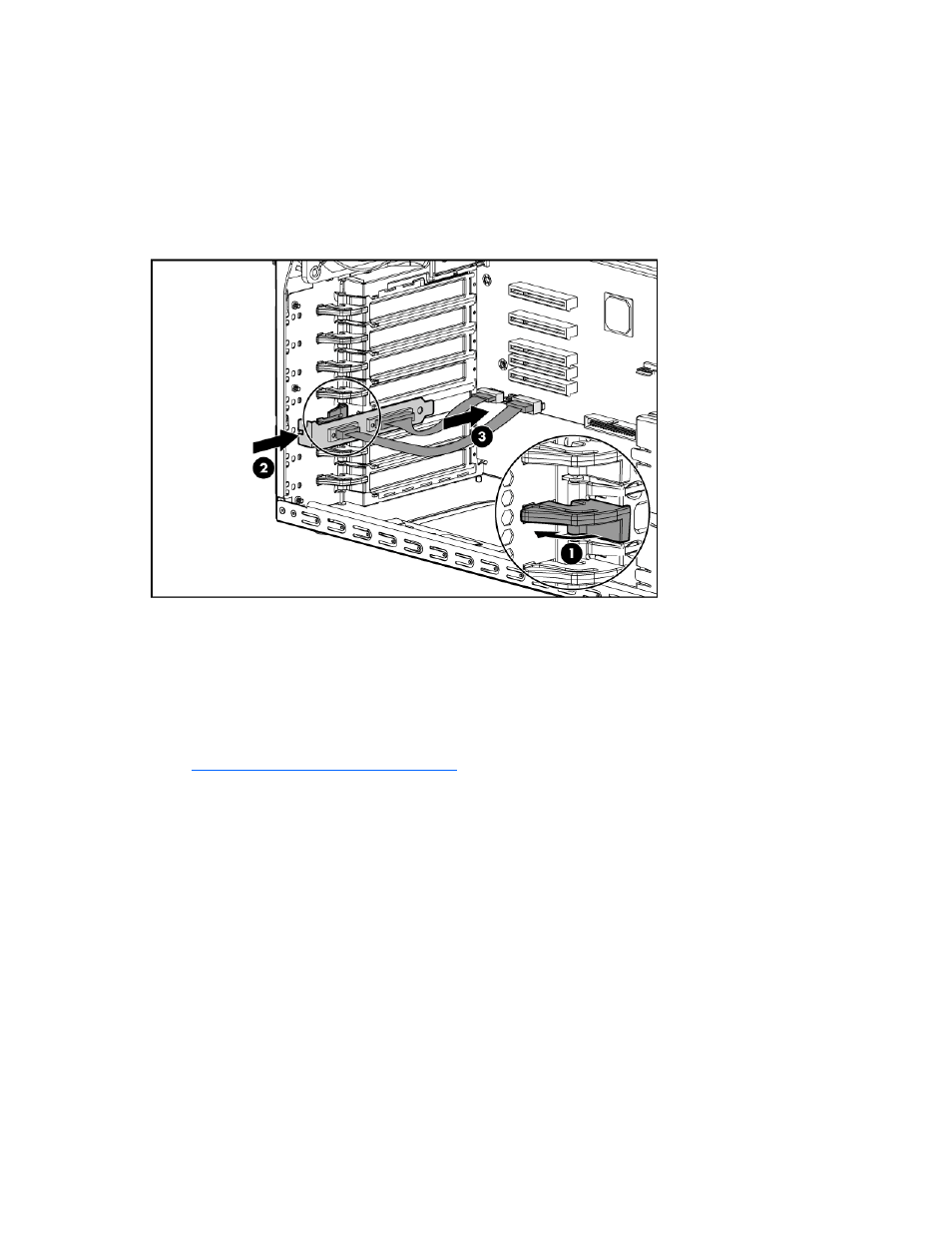

5. Install the parallel and serial connector bracket.
6. Connect the parallel and serial cables to the parallel and serial connectors on the system board.
7. Close the PCI retainer.
8. Install the access panel (on page 19 ).
9. Lock the bezel.
10. Power up the server (on page 17 ).
11. Enable the feature under the System Options menu in RBSU. For more information on RBSU, refer to
the HP ROM-Based Setup Utility User Guide on the Documentation CD or the HP website
( http://www.hp.com/servers/smartstart ).
