Expansion board options, Installing an expansion board or flexiblelom – HP ProLiant SL270s Gen8 Server User Manual
Page 46

Hardware options installation 46
o
Right node
11.

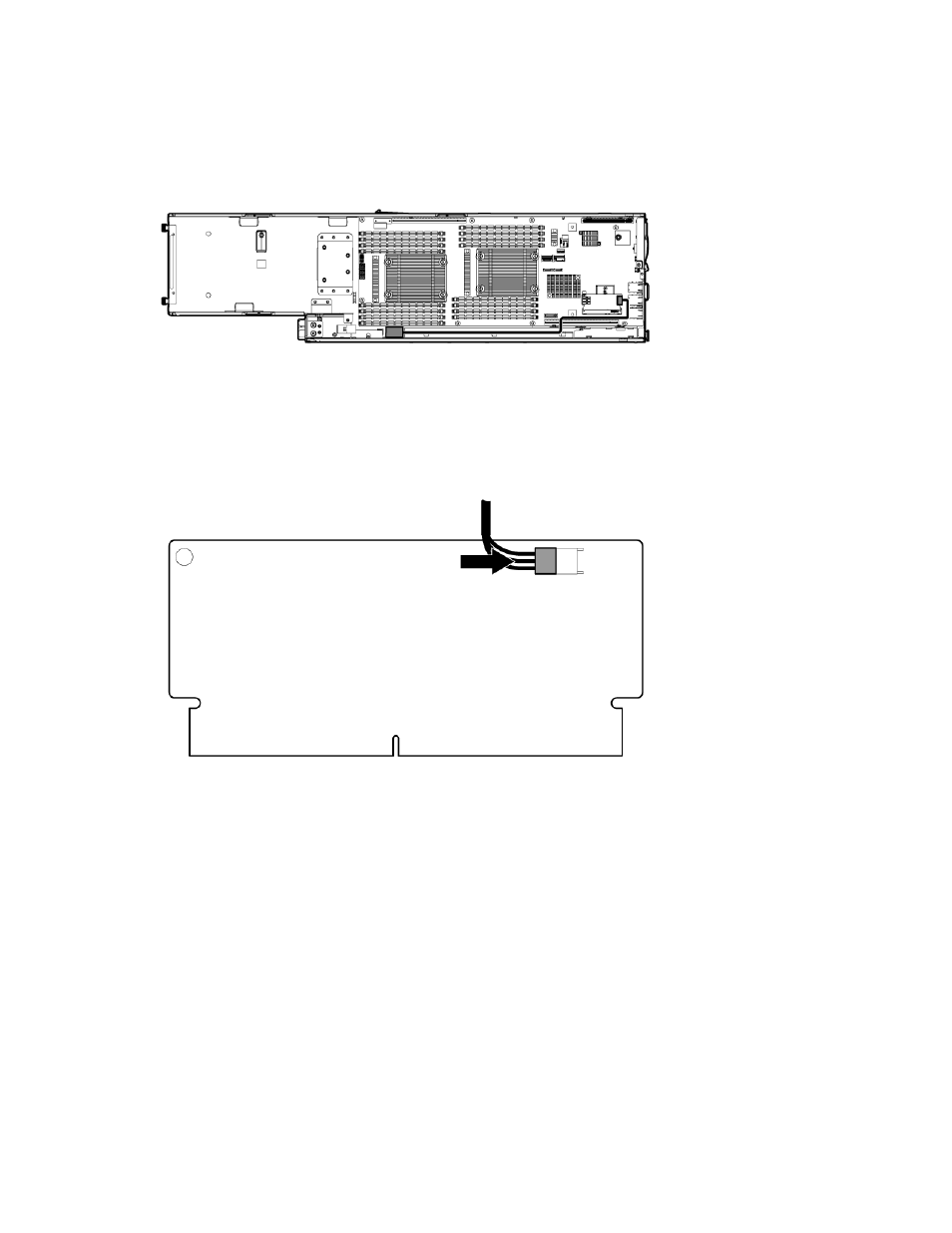

Attach the FBWC cable to the cache module on the system board or to the controller card.
12.
Install all components removed from the server.
13.
Install the server into the chassis ("
Installing the server into the chassis
" on page
14.
Expansion board options
Installing an expansion board or FlexibleLOM
The server ships with PCIe riser boards and expansion slots. PCIe expansion boards and FlexibleLOMs are
supported with an optional riser board.
1.
Power down the server (on page
2.
Disconnect all peripheral cables from the server.
3.
