Dimm slot locations – HP ProLiant SL270s Gen8 Server User Manual
Page 10

Component identification 10
Item
Description
4
SATA hard drive connector 2
5
System battery
6
Processor socket 2
7
Processor 2 DIMM slots
8
Power connector
9
RPS connector
10
x32 riser connector
11
Processor 1 DIMM slots
12
Processor socket 1 (populated)
13
Mini-SAS hard drive connector port 2i
14
Mini-SAS hard drive connector port 1i
15
Internal USB connector
16
uSD card slot
17
Data LED connector
18
x16 FlexibleLOM slot
19
System maintenance switch
NOTE:
This server supports PCIe Gen3 only in the FlexibleLOM slot. PCIe Gen2 is supported in
all other slots.

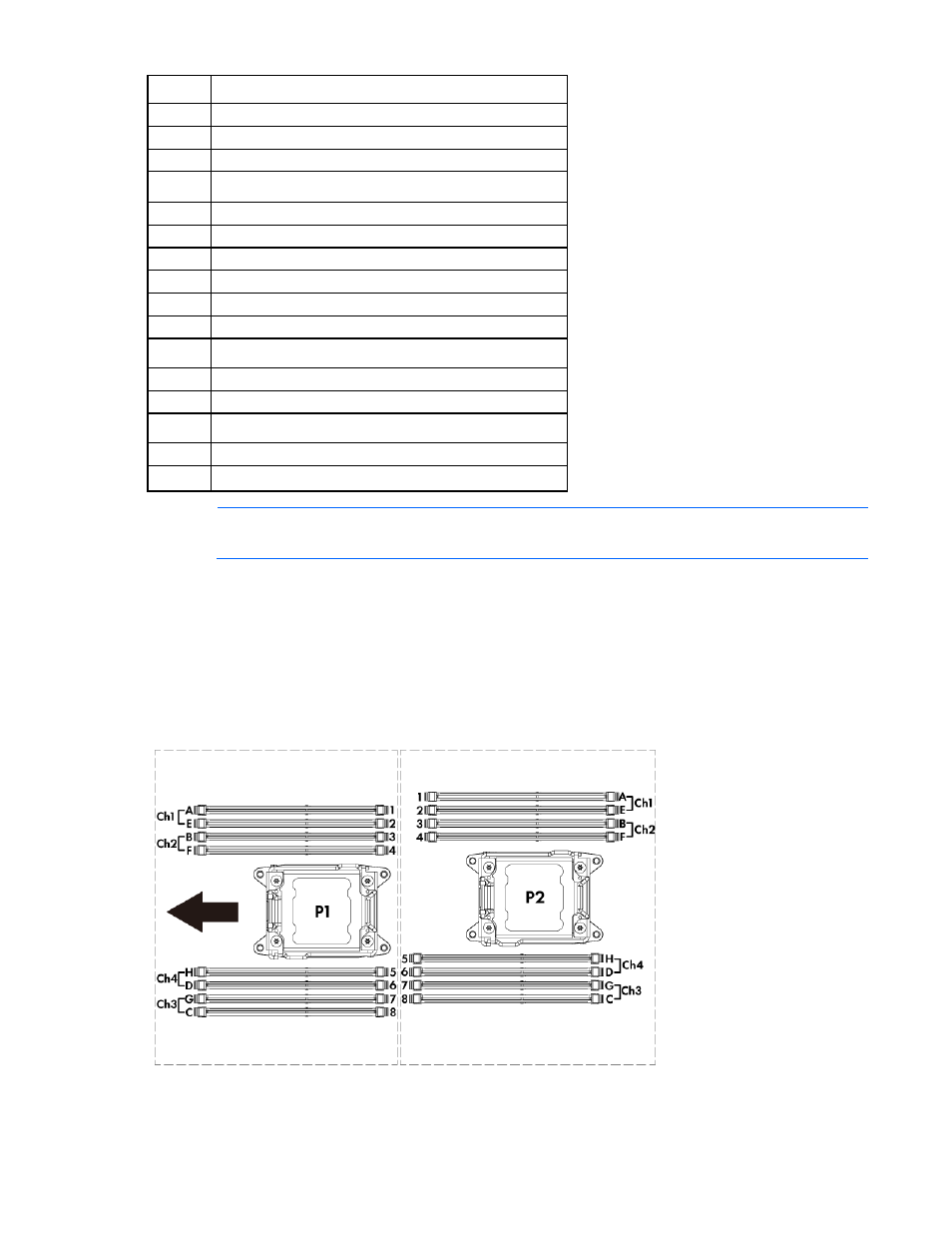

DIMM slot locations
DIMM slots are numbered sequentially (1 through 8) for each processor. The supported AMP modes use the
alpha assignments for population order, and the slot numbers designate the DIMM slot ID for spare
replacement.
The arrow points to the front of the server.
