Setup 24

2.

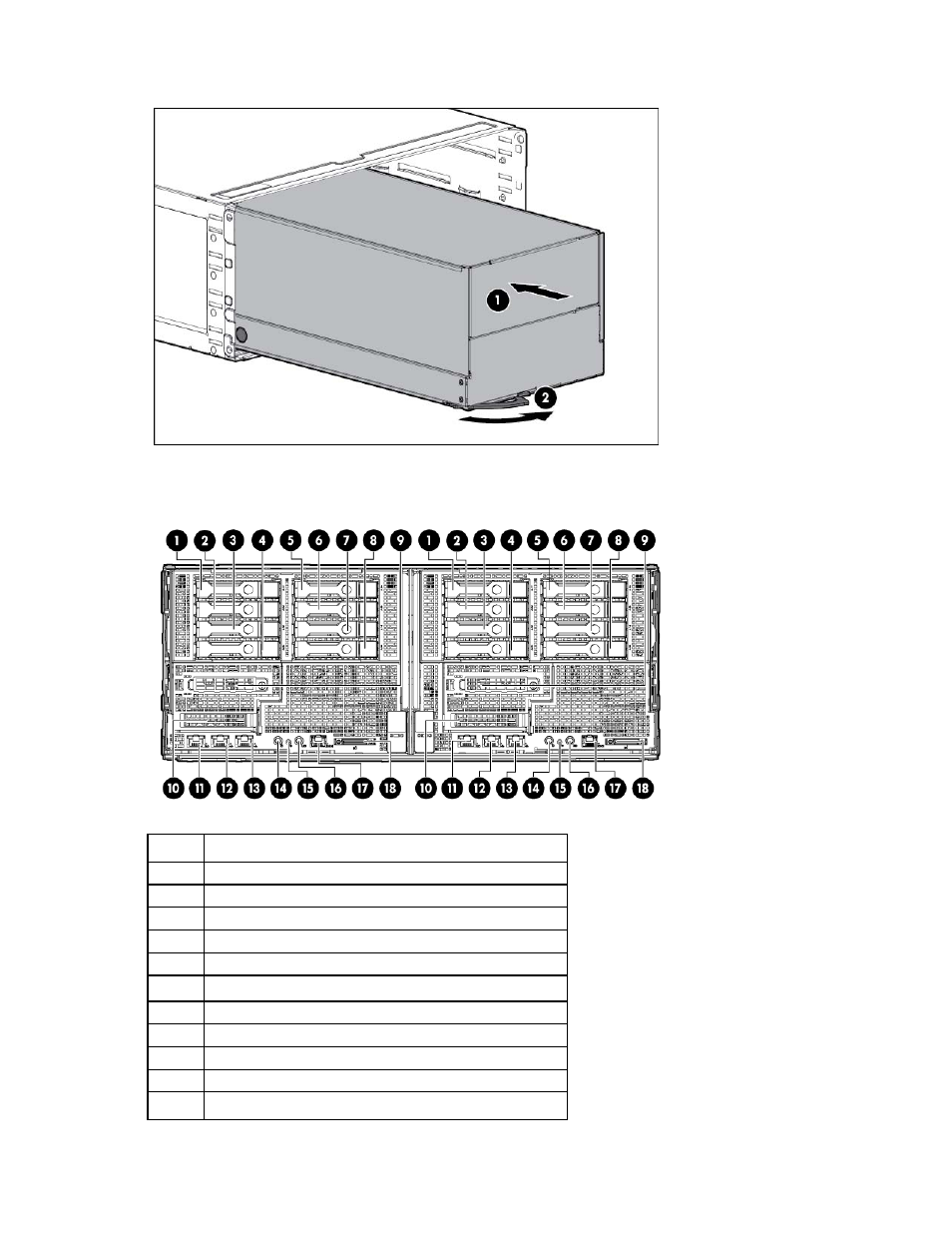

Rotate the tray handle to lock.

3.

Connect peripheral devices to the server.

Item

Description

1

Hot-plug hard drive 1

2

Hot-plug hard drive 2

3

Hot-plug hard drive 3

4

Hot-plug hard drive 4

5

Hot-plug hard drive 5

6

Hot-plug hard drive 6

7

Hot-plug hard drive 7

8

Hot-plug hard drive 8

9

Option bay 2, FlexibleLOM

10

Option bay 1, PCI riser board

11

iLO 4 network port
